  • Swept Path Analysis: 2026 Developer’s Planning Guide

    Swept Path Analysis: 2026 Developer’s Planning Guide

    Over 60% of UK planning appeals involving highway objections are lost because of layout geometry disputes or a lack of verified servicing evidence. It’s a common frustration for developers when a project stalls because a local authority isn’t satisfied that an 11.2-metre refuse vehicle can safely navigate the site. Utilizing professional swept path analysis for site access eliminates this uncertainty, ensuring you don’t have to guess which vehicle templates to use or risk costly redesigns once the project is already underway.

    This 2026 guide explains how professional modelling provides the technical certainty required to satisfy Paragraph 115(b) of the NPPF. We’ll cover the transition to AutoTURN 2026, mandatory safety buffers, and how to integrate precise tracking into your Transport Statement. By the end, you’ll know exactly how to secure a council-approved design that protects both your budget and public safety. Our approach focuses on empirical evidence to mitigate safety risks and prevent the “unacceptable impact” thresholds that lead to planning refusals.

    Key Takeaways

    • Learn how professional swept path analysis for site access provides the empirical evidence needed to satisfy NPPF requirements and prevent costly planning refusals.
    • Understand why Local Planning Authorities mandate forward-gear entry and exit for all servicing vehicles to maintain highway safety on classified roads.
    • Identify the exact technical dimensions for fire tenders and 11.2-metre refuse vehicles required to validate your site’s emergency and waste management access.
    • Explore how advanced AutoTURN 2026 modelling resolves complex design challenges and visibility splay requirements in constrained urban environments.
    • Discover the process for integrating technical SPA reports into comprehensive Transport Statements to ensure a streamlined council approval process.

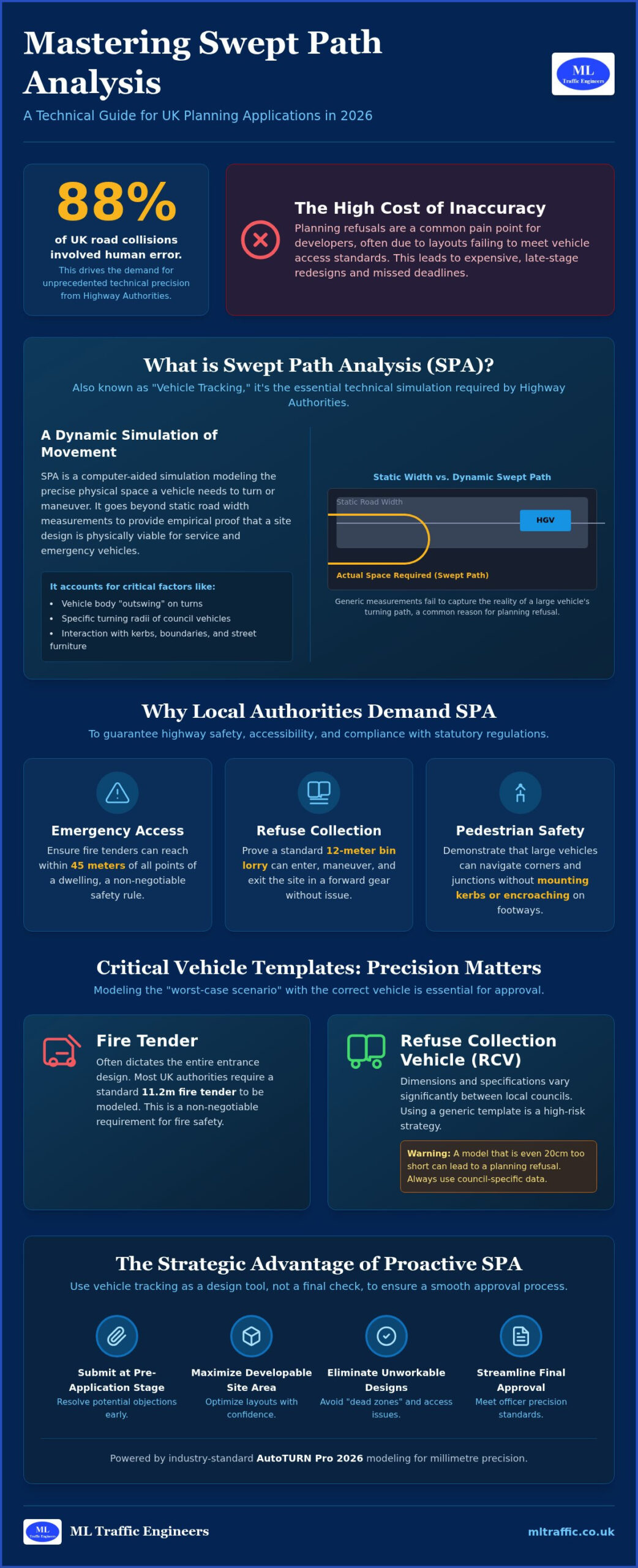

    Understanding Swept Path Analysis (SPA) for UK Site Access

    Swept path analysis for site access is the digital simulation of vehicle movements within a proposed development layout. In 2026, the industry has moved beyond manual tracking templates toward the precision of AutoTURN 2026 software. This technology calculates the exact vehicle turning radius and off-tracking dynamics to ensure that a site design functions in the real world. For developers, this analysis serves as a critical feasibility check that prevents fundamental design flaws from reaching the planning committee. It’s not just a technical drawing; it’s a functional necessity for modern infrastructure planning.

    To better understand how these simulations are conducted, watch this helpful overview of the technical process:

    What is Swept Path Analysis in Planning?

    Professional path modelling identifies the “envelope” of a vehicle, which includes both the wheel tracks and the body path. Understanding the difference is vital because the body of a refuse vehicle or fire tender often extends far beyond its wheels during a turn. This “overhang” can strike boundary walls or street furniture if not properly accounted for, while “cut-in” affects how a vehicle clears internal corners. Swept path analysis for site access is a mandatory requirement for proving site feasibility to local authorities across England. By simulating these movements digitally, we provide clear evidence that a site can safely accommodate the specific design vehicles required by the council.

    Why Site Access is the Primary Focus

    The junction between a private development and the public highway is the most scrutinized element of any planning application. National policy and local highway standards generally dictate that all servicing vehicles, such as refuse freighters and emergency tenders, must enter and leave a site in a forward gear when connecting to a classified road. Reversing onto a busy highway creates unacceptable safety risks that lead to immediate application refusal. Using technical modelling allows us to justify access designs that might otherwise appear too constrained. It provides the empirical data needed to support your Transport Statement. If you’re managing a project in a high-pressure environment, our Swept Path Analysis Services in London ensure your site access design meets the rigorous standards set by local borough officers.

    Why Local Planning Authorities Demand SPA for Site Access

    Local Planning Authorities (LPAs) prioritize highway safety and the efficient movement of traffic above all else. They rely heavily on the Manual for Streets guidance to evaluate if a development layout is fit for purpose. Professional swept path analysis for site access has become the standard method for proving that a design works without relying on outdated, over-engineered road widths. This approach supports the creation of tighter, pedestrian-friendly environments that prioritize vulnerable road users while still accommodating essential service vehicles.

    The requirement for forward gear entry and exit is non-negotiable on classified roads. LPAs won’t accept designs where heavy goods vehicles or refuse trucks must reverse onto the public highway. SPA provides the technical proof that these maneuvers can occur safely within the site boundary. By simulating these turns, developers can avoid oversized junctions that encourage higher vehicle speeds, creating a safer environment for everyone. It’s about precision rather than just adding more asphalt.

    Statutory Requirements for Emergency and Service Vehicles

    Compliance with Building Regulations Approved Document B5 is a legal necessity for fire service access. This mandates specific turning circles and road widths, such as a minimum 16.8-metre kerb-to-kerb turning circle for pumping appliances. Additionally, British Standard BS 5906:2005 and most local highway standards state that refuse collection vehicles shouldn’t be required to reverse more than 12 metres. Failing to provide SPA evidence during the pre-application stage often results in immediate registration delays or outright refusal. If you need to verify your layout, our team can provide a technical swept path assessment to ensure compliance from day one.

    Meeting National and Local Design Standards

    While national guidance provides a framework, individual English boroughs often have specific requirements for vehicle templates. For instance, many London authorities demand tracking for an 11.2-metre or 11.35-metre refuse collection vehicle rather than a standard HGV. Professional modelling ensures your design reflects these local nuances. This data is essential for a robust Transport Statement London Guide, where clear evidence of site accessibility is a primary validation requirement. By integrating swept path analysis for site access early, you simplify the path to council approval and avoid costly design changes late in the project lifecycle.

    Key Vehicle Templates Used in Site Access Analysis

    Selecting the correct design vehicle is a high-stakes decision that dictates the viability of your entire site layout. Local Planning Authorities (LPAs) don’t just look for generic vehicle movements; they require simulations based on specific, high-load templates that reflect the actual machinery used by local councils and emergency services. Using the wrong template during swept path analysis for site access is a primary driver of planning delays and expensive late-stage design revisions. Our technical team utilizes the latest AutoTURN libraries to ensure every simulation aligns with the planning practice guidance on transport assessments provided by the government.

    Modelling Emergency Access

    The fire tender is the non-negotiable template for every residential development in England. To comply with Building Regulations, you must prove that a fire appliance can reach within 45 metres of every point within a dwelling, measured along the route of the hose. Failure to demonstrate this maneuverability often results in a statutory objection from the Fire Authority. The standard UK fire tender template is 8.0m long by 2.5m wide, requiring a minimum kerb-to-kerb turning circle of 16.8 metres. We model these paths with a 500mm safety buffer to vertical obstructions, ensuring the vehicle’s body envelope doesn’t strike walls or overhanging structures during an emergency response.

    Service and Delivery Vehicles

    Refuse Collection Vehicles (RCVs) present the most significant geometric challenge due to their size and weight. While many developers assume a standard HGV template is sufficient, most UK councils demand tracking for a 26-tonne, 3-axle RCV, typically modeled as an 11.2-metre or 12.0-metre vehicle. We also differentiate between “Fixed Axle” and “Steered Axle” configurations. A steered rear axle allows for a tighter turning radius, which can be critical for securing approval on constrained urban sites. Beyond refuse, commercial developments require modelling for:

    • Large Goods Vehicles (LGVs): Essential for retail delivery bay simulations.
    • Pantechnicons: Used for residential removal tracking.
    • Custom Vans: Modelling 7.4-metre Mercedes-Benz Sprinters for high-density parcel delivery zones.

    Accurate modelling ensures that delivery bays remain accessible without forcing vehicles to block the public highway or pedestrian footways. By proving these vehicles can enter and exit in forward gear, we provide the empirical evidence needed to satisfy highway officers and secure your planning consent.

    Overcoming Common Site Access Challenges with Technical Modelling

    Designing for tight urban environments requires more than just standard templates. It requires an engineering interpretation of how vehicles interact with physical constraints. Urban constraints in London often present sites that look inaccessible on a standard OS map, but professional swept path analysis for site access turns these logistical puzzles into viable developments. By simulating exact vehicle envelopes, we prove that even the tightest entrances can function safely without compromising heritage assets or neighboring land. This level of precision is essential for satisfying the rigorous validation checklists of local highway authorities.

    Mountable kerbs and overrun areas serve as strategic tools in these constrained settings. They allow larger vehicles, like a 26-tonne refuse freighter, to periodically utilize extra space while maintaining a narrower, pedestrian-friendly carriageway for daily use. We also conduct multi-vehicle simulations to verify that a resident’s car can safely pass while a delivery truck enters the site. This prevents the bottlenecks and safety concerns that frequently lead to planning refusals. It’s about demonstrating that the site works under real-world stress, not just in an empty simulation.

    Navigating Tight Urban Constraints

    In sensitive areas, balancing heritage preservation with modern highway safety is a constant struggle. We use SPA to justify narrow access roads that traditional, over-engineered highway standards might otherwise reject. For a recent mews development, we demonstrated that a fire tender could navigate a restricted entry arch by utilizing precise AutoTURN simulations. This evidence-based approach removes the guesswork and provides a reassuring level of detail for council engineers who are often risk-averse when dealing with non-standard road widths. It shows that safety and character can coexist through smart design.

    Visibility Splays and Safety Margins

    Visibility splays are the sightlines required for drivers to see and be seen when exiting a site. We integrate these ‘X’ and ‘Y’ distances directly with the swept path drawing to ensure the vehicle’s path doesn’t dangerously encroach on the opposite lane or third-party land. Safety buffers are non-negotiable here. We maintain a 300mm margin to horizontal kerb lines and a 500mm clearance to vertical obstructions like lamp posts, boundary walls, or trees. This precision ensures that your design doesn’t just work on paper but survives the scrutiny of a Section 278 technical audit. If you’re facing a difficult access issue, you can get a technical swept path assessment for your site to clear the way for approval.

    Swept Path Analysis: 2026 Developer's Planning Guide

    Securing Planning Approval with Professional SPA Reports

    A standalone CAD drawing is often insufficient for a successful planning submission because it lacks the necessary context for highway officers. While a simulation visually demonstrates vehicle movement, planning officers require a narrative that explains the underlying methodology and design assumptions. A professional report interprets the swept path analysis for site access, justifying the choice of vehicle templates and confirming that all safety buffers meet local authority expectations. This technical note acts as a bridge, translating complex AutoTURN data into a format that a non-technical case officer can confidently approve without requesting further technical clarification.

    Providing this level of detail upfront significantly reduces the risk of ‘Regulation 25’ requests or other formal requests for further information. These delays occur when the Highway Authority feels the evidence is incomplete or ambiguous. By presenting a comprehensive package that includes annotated tracking, visibility splay integration, and clear clearance envelopes, you demonstrate a commitment to safety and regulatory compliance. This transparency speeds up the consultation period and ensures your project moves through the planning system without the friction of late-stage design objections or costly redesigns during the technical audit phase.

    Integrating SPA into Transport Documentation

    Site feasibility is best proven through the integration of SPA into your Transport Statement or Assessment. This documentation provides the empirical evidence that your site can be serviced safely and efficiently, even in high-pressure urban environments. Professional modelling allows highway officers to quickly validate your design against national standards like the NPPF. When you include these simulations as part of a wider strategy, you provide a robust defense against potential highway-based refusals. Our integrated reporting approach ensures that your technical evidence is aligned with your planning goals. For more on navigating these requirements, refer to our Transport Assessment Success Guide.

    Why Choose ML Traffic Engineers UK for Your Site Access Analysis?

    ML Traffic Engineers UK has provided specialist support to developers across England since 2014. We understand the intricate regional regulations of various local authorities, allowing us to act as your dependable expert partner throughout the planning lifecycle. Our team prioritizes precision and adherence to standards, ensuring every report is council-ready from the first submission. We balance technical authority with a client-focused approach, aiming to maximize your developable plot area while maintaining strict safety compliance. We take immense pride in our role as guardians of public and worker safety through precise engineering.

    We offer an all-encompassing, fully-managed service that covers everything from initial parking surveys to final transport assessments. Our rapid response capabilities and expert use of AutoTURN modelling ensure that your project stays on track, even in a fast-moving regulatory environment. By choosing a partner that understands both the engineering and the planning policy, you secure a site access design that is safe, compliant, and ready for execution. We manage the full project technical requirements so you can focus on the development itself.

    Accelerate Your Planning Approval with Expert Technical Modelling

    Professional swept path analysis for site access is the empirical backbone of a successful planning application. It transforms theoretical site designs into verified, functional layouts that satisfy both highway officers and emergency services. By moving beyond static geometry to dynamic AutoTURN simulations, you eliminate the regulatory pressure that causes project delays and ensure your development is safe for all road users from the very first submission.

    ML Traffic Engineers UK has served as a specialist partner for developers across England since 2014. We provide the council-ready technical reporting necessary to navigate intricate regional standards with absolute precision. Our commitment to accuracy and rapid response ensures your infrastructure maintenance or development works proceed without the logistical friction of inadequate access evidence. We don’t just provide drawings; we deliver the technical authority required for immediate planning success.

    Request a Swept Path Analysis Quote for Your Site to secure a fully-managed technical solution for your project. We’re ready to provide the professional integrity and engineering expertise your development requires to move forward with confidence and clarity.

    Frequently Asked Questions

    What is the difference between swept path analysis and a tracking diagram?

    Swept path analysis is the digital simulation process used to calculate how a vehicle moves through a space, accounting for steering geometry and off-tracking. A tracking diagram is the visual CAD output of that analysis. While the terms are often used interchangeably in planning applications, the analysis involves the technical calculation of the vehicle’s body and wheel “envelopes,” while the diagram serves as the evidence submitted for council approval.

    Is swept path analysis a legal requirement for UK planning applications?

    Swept path analysis for site access is a mandatory validation requirement for most developments under the National Planning Policy Framework (NPPF). Paragraph 115(b) requires developers to demonstrate safe and suitable access for all users. Local Planning Authorities (LPAs) will rarely register or approve an application involving new junctions or internal roads without empirical evidence that refuse and emergency vehicles can maneuver safely within the site boundary.

    Which vehicle templates should be used for a standard residential development?

    Every residential scheme must model a standard UK fire tender, typically 8.0 metres in length, to comply with Building Regulations. You must also include the local authority’s specific Refuse Collection Vehicle (RCV), which is usually an 11.2-metre or 12-metre 3-axle freighter. Commercial elements might require a 16.5-metre articulated HGV or a 7.4-metre delivery van template to ensure the internal layout remains functional for all expected servicing and delivery needs.

    Can swept path analysis help reduce the required width of a new access road?

    Yes, professional modelling allows for a “vision-led” design approach rather than relying on rigid, over-engineered highway standards. By proving a vehicle can safely navigate a narrower carriageway using precise digital simulations, you can reduce the amount of asphalt and increase developable land. This approach aligns with Manual for Streets guidance, which encourages tighter, pedestrian-friendly environments that still accommodate essential service vehicle movements without encouraging excessive vehicle speeds.

    How much does a professional swept path analysis cost for a small site?

    The cost of a swept path analysis for site access depends on the complexity of the junction and the number of vehicle templates required by the local highway officer. Fees are typically based on the technical time needed to conduct the AutoTURN simulations and produce a supporting technical report. For a project-specific estimate, developers should request a bespoke quote from a specialist traffic engineering consultancy to ensure all statutory requirements are met.

    What software do traffic engineers use for swept path analysis in 2026?

    In 2026, the industry standard is AutoTURN 2026, which provides the most comprehensive library of UK-specific manufacturer and standard design vehicles. Many engineers also utilize Autodesk Vehicle Tracking within the Civil 3D environment for integrated site design. These tools provide the high-precision simulations required to satisfy highway authorities and ensure that vertical clearance and ground clearance issues, such as ramp gradients, are identified before the construction phase begins.

    What happens if my site access fails the swept path analysis?

    If a simulation shows a vehicle striking a boundary or failing to make a turn, the site layout must be adjusted. Solutions often include increasing junction radii, implementing mountable kerbs, or redesigning internal turning heads to accommodate the vehicle’s “cut-in.” We work with developers to find the most efficient design balance, ensuring the site remains safe and compliant without losing valuable plot space to oversized turning circles or excessively wide roads.

    Do I need SPA for a simple dropped kerb application?

    A standard residential dropped kerb for a single driveway usually doesn’t require a full swept path analysis unless there are specific safety concerns or visibility constraints. However, if the dropped kerb serves a commercial site or a multi-unit development, the Highway Authority will likely demand SPA evidence. They must be certain that larger vehicles won’t be forced to reverse onto the public highway when entering or exiting the property due to inadequate turning space.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Swept Path Analysis for Temporary Event Access: The 2026 Developer’s Checklist

    Swept Path Analysis for Temporary Event Access: The 2026 Developer’s Checklist

    Imagine the “bump-in” phase of your 2026 festival coming to a grinding halt because a 19-metre articulated vehicle cannot clear the temporary ticket booths. It’s a scenario that keeps developers awake at night. A planning application is frequently rejected by the local highway authority because of “insufficient access data.” Conducting a professional swept path analysis for temporary event access is the only way to prove your site can handle everything from heavy stage flatbeds to heavy rigid vehicles. Without this technical validation, you’re not just risking logistical delays. You’re risking the entire event’s viability.

    We understand the pressure of meeting strict safety benchmarks while navigating the intricate requirements of UK planning permissions. You’re likely worried about the exact dimensions of catering trucks or whether a fire tender has the 29.2-metre turning circle diameter required for specialist aerial appliances. This guide provides a definitive 2026 checklist to ensure your access plan is robust and compliant. We will examine how to model multi-vehicle layers in AutoTURN, secure necessary local authority approvals, and maintain the 4.0-metre unobstructed corridors essential for emergency services.

    Key Takeaways

    • Understand why swept path analysis for temporary event access is the essential technical requirement for securing local highway authority approval and preventing costly logistical gridlock.
    • Learn how to identify the most demanding vehicle templates for 2026, including the 29.2-metre turning circle necessary for specialist aerial firefighting appliances.
    • Discover the methods for integrating temporary infrastructure, such as trackway and security fencing, into your simulations to identify potential “pinch points” before they cause delays.
    • Access a comprehensive compliance checklist that ensures every phase of your event, from the initial setup to the final site clearance, meets UK safety standards.
    • Find out how professional engineering reports and AutoTURN modeling provide the precise data needed to satisfy council highway officers and protect public safety.

    Why Swept Path Analysis is Critical for Temporary Event Access

    Planning a temporary event in London involves managing high-intensity traffic within restricted urban footprints. Unlike permanent developments where access is static, events introduce a surge of heavy logistics vehicles over a short period. Swept path analysis for temporary event access provides the empirical data needed to prove these vehicles can enter, manoeuvre, and exit safely without causing gridlock. SPA is a computer-aided simulation of vehicle wheel and body paths. This technical validation is vital for high-stakes environments where even a few centimetres of error can halt operations.

    To better understand how this technology works in a professional context, watch this demonstration of modern vehicle tracking software:

    By modelling the vehicle turning radius and off-tracking of specific fleet profiles, engineers identify “pinch points” before any equipment arrives on-site. This foresight prevents logistical failures that could delay a festival opening or a major corporate activation. We use these simulations to verify that 19-metre articulated trailers can successfully navigate tight city corners without striking permanent street furniture or temporary barriers.

    The Legal and Regulatory Necessity

    Local highway authorities in the UK increasingly demand technical proof of vehicle manoeuvrability for any event encroaching on public road reserves. A professional autoturn swept path analysis is often a mandatory component of a comprehensive Transport Statement. Without this data, developers face a high risk of planning permission refusal. Council officers prioritising road safety won’t approve an access plan based on guesswork; they require georeferenced simulations that adhere to current UK highway standards. This documentation provides the reassurance that your event layout respects the structural limits of the surrounding infrastructure.

    Operational Safety and Risk Mitigation

    Safety is the non-negotiable foundation of event planning. Precise analysis ensures that fire tenders and other emergency vehicles maintain 4.0-metre unobstructed travel widths at all times, even during the peak bump-in phase. In 2026, many authorities require specific modelling for aerial firefighting appliances, which demand a 29.2-metre turning circle diameter due to front ladder overhang. Swept path analysis for temporary event access also protects the site’s physical integrity. By accurately predicting body overhangs, we prevent damage to existing kerbs, street furniture, and expensive temporary trackway. This level of precision reduces the logistical and regulatory pressure on your team, ensuring a seamless transition from planning to execution.

    Determining Critical Vehicle Templates for Event Access

    Selecting the correct vehicle template is the foundation of a valid simulation. You cannot rely on generic models for high-stakes event planning. Every site has a “worst-case scenario” vehicle. This is usually the largest or least manoeuvrable unit required for the bump-in phase. Identifying this vehicle early prevents the need for costly site re-designs later. Precise swept path analysis for temporary event access must account for these variations to ensure total site safety and regulatory compliance.

    Accuracy depends on using specific AutoTURN vehicle templates that reflect the real-world fleet. This is especially true for specialized equipment like mobile stages, outside broadcast (OB) vans, or heavy catering units. These vehicles often possess unique wheelbases or significant body overhangs that standard software libraries might miss. We ensure every simulation uses georeferenced data to match the exact dimensions of the equipment arriving on your site.

    The Heavy Goods Vehicle (HGV) Profile

    Most large-scale UK events require 16.5-metre articulated trucks for stage deliveries and infrastructure transport. We model these using rear-steer parameters to navigate tight urban entrances and narrow site gates. For smaller venues or park-based activations, the 12-metre rigid vehicle is often the critical template. Adhering to Manual for Streets swept path guidance ensures these simulations meet the geometric design principles expected by council highway officers. We also simulate 19.0-metre articulated vehicles for major stage production deliveries to guarantee they can turn without striking permanent infrastructure.

    Emergency and Service Vehicle Access

    Compliance is not just about logistics. You must maintain access for a standard UK fire tender at all times. This typically requires a 3.7-metre clear width between kerbs and a 4.0-metre unobstructed roadway width within the event space. We also model ambulance access to designated first-aid points and triage areas. These routes must remain clear even when the site is at full capacity. If you’re unsure which templates your project requires, our team provides expert swept path analysis services to help you navigate these technical requirements.

    Service vehicle routes are equally important. Waste management and sanitation trucks need dedicated paths to operate during the event lifecycle. By modelling the specific vehicles that will actually visit your site, we reduce the risk of planning rejection and operational failure. This proactive approach ensures your event stays on schedule and meets all safety benchmarks set by the local authority.

    Assessing Temporary Infrastructure and Urban Constraints

    Temporary event sites often exist in challenging environments where permanent infrastructure meets transient barriers. Success depends on accurately modelling how these elements interact. Swept path analysis for temporary event access is essential for evaluating the impact of temporary gates, fencing, and security bollards on vehicle movement. We also have to account for fixed urban constraints such as low bridges, narrow junctions, and on-street parking that can complicate ingress. These constraints aren’t just inconveniences; they are potential points of failure that can lead to planning rejection. Reviewing our ML Traffic project types can help you identify specific site challenges common to London event spaces, from stadium concerts to park festivals.

    Temporary Trackway and Turning Circles

    When events take place on grass or soft ground, developers rely on temporary trackway to support heavy loads. We calculate the minimum width of trackway required for safe HGV passage, ensuring the vehicle’s body and wheels remain on the mats at all times. Turning radii on these surfaces are often tighter than on tarmac because of the physical limitations of the matting systems. Trackway must extend beyond the swept path to prevent ground rutting. This extra margin ensures that even minor steering deviations don’t lead to vehicles becoming bogged down, which would cause immediate logistical delays. We recommend a safety envelope of at least 300mm to 500mm beyond the calculated wheel path to account for these variables.

    Junction Manoeuvrability and Public Highway Impact

    The transition from a narrow public road to an event site is often the most critical phase where swept path analysis for temporary event access proves its value. Long vehicles require a significant “swing” to enter without striking kerbs, street furniture, or temporary fencing. This movement often creates a conflict between event traffic and existing pedestrian flows. Following HSE event transport and vehicle access guidelines is vital for maintaining safe separation between people and plant. We use SPA to determine if temporary Traffic Regulation Orders (TTROs) are necessary to suspend parking or close lanes temporarily. This technical proof is what council highway officers look for when approving your traffic management plan. By identifying these constraints during the design phase, we help you avoid last-minute alterations that could compromise site safety. Our simulations provide the reassurance that your event won’t cause dangerous congestion on the public highway.

    The 2026 Checklist for Event Swept Path Analysis Compliance

    Achieving approval for a temporary event requires a systematic approach to technical documentation. A comprehensive checklist ensures that your swept path analysis for temporary event access meets the rigorous standards of UK highway authorities. This process moves beyond simple site plans. It provides georeferenced proof that your logistics strategy is viable within the physical constraints of the venue. Following these five steps will help you secure council approval while minimising the risk of operational gridlock during the build phase.

    • Step 1: Define the site boundary and temporary access points. Identify every ingress and egress point, including those reserved strictly for emergency vehicles or staff.
    • Step 2: Compile a vehicle list for all phases. You must account for different fleets used during the build-out, the live event, and the final break-down. This includes 16.5m articulated trucks and smaller 6.5m ambulances.
    • Step 3: Secure accurate mapping. Use a topographical survey or high-resolution OS mapping to ensure the simulation reacts to real-world kerb lines and permanent street furniture.
    • Step 4: Execute SPA simulations. Model all critical movements, including entry from the public highway, internal turns around staging, and the final exit path.
    • Step 5: Review safety margins. We recommend a minimum 0.5m (500mm) safety clearance between the vehicle’s swept envelope and any rigid structures or pedestrian fencing.

    Technical Drawing Requirements

    A valid technical drawing must provide more than just a line on a map. It needs to show the full wheel path and the body overhang to account for “swing” during tight turns. Every simulation should include directional arrows and clearly stated vehicle speed assumptions, which are typically capped at 5-10mph for event sites. We layer these simulations directly over your temporary Event Management Plan (EMP) layout. This ensures that the placement of stages, kiosks, and toilets doesn’t interfere with essential vehicle tracks. If you need assistance preparing these technical documents, you can order a professional swept path analysis to ensure your drawings satisfy council highway officers.

    Common Pitfalls to Cross-Check

    Many developers focus only on the “bump-in” and forget to model the outbound journey. Long vehicles often require different steering angles when exiting a site, especially if they must merge into moving traffic. You should also check vertical clearances. Festival arches, festoon lighting, and low-hanging branches must sit at least 4.5m above the roadway to accommodate HGVs—an essential coordination point when working with audio, visual, and lighting production teams like livewireav.co.nz. Finally, ensure your model includes temporary site offices and generator placements. These “small” additions often create unexpected pinch points that can derail your entire transport strategy if not modelled during the initial swept path analysis for temporary event access.

    Swept Path Analysis for Temporary Event Access: The 2026 Developer’s Checklist

    Securing Approval: How ML Traffic Engineers Supports Your Event

    Navigating the final stages of a planning application requires more than just automated software outputs. While digital tools provide a foundation, council highway officers require professional engineering judgment to validate the results. Our team at ML Traffic Engineers UK provides the technical expertise to interpret complex simulations and translate them into actionable reports. We ensure your swept path analysis for temporary event access stands up to rigorous scrutiny from local authorities across the UK. Since 2014, we’ve specialised in navigating these regulatory hurdles with precise data and authoritative engineering sign-offs.

    We understand that event timelines are often compressed. A delay in receiving an access report can halt the entire production schedule. ML Traffic Engineers UK prioritises rapid turnaround times to meet these time-sensitive demands without compromising on accuracy. Whether you’re planning a one-off festival or a recurring stadium event, we integrate SPA results into a wider Transport Statement for London or UK-wide planning project to provide a comprehensive view of your site’s operational feasibility.

    From Initial Survey to Final Report

    Our process begins with a detailed assessment of your proposed layout. We use current traffic data and high-resolution mapping to justify every temporary access solution. ML Traffic Engineers UK doesn’t just identify problems; we collaborate with event planners to optimise site layouts for better vehicle flow. For organizers budgeting broader operational support alongside technical site planning, it is equally valuable to explore Project-Based Event Management and Coordination Fees to ensure every phase of delivery remains fully resourced. This proactive approach often uncovers opportunities to increase usable event space while maintaining safety margins. By providing a professional “stamp of authority” on every submission, we reduce the likelihood of revisions and accelerate the path to approval. This level of support ensures that your technical documentation is robust, defensible, and ready for council review.

    Our Commitment to Event Safety

    Safety remains our primary driver. We ensure every temporary layout prioritises the protection of both the public and site workers. The team at ML Traffic Engineers UK understands the intricate regional regulations in England, allowing us to manage the technical complexities so you don’t have to. We take immense pride in our role as guardians of site safety. We ensure that even the most ambitious event designs remain compliant and functional throughout the build, live, and break-down phases. If you’re ready to secure your site’s access plan with a reliable partner, contact ML Traffic Engineers UK for a professional SPA quote today.

    Securing Your 2026 Event Access

    Successful event delivery starts with a technical foundation that leaves no room for error. We’ve seen how precise vehicle templates and the careful modelling of temporary infrastructure are vital for navigating narrow urban junctions. A robust swept path analysis for temporary event access doesn’t just prevent logistical gridlock. It provides the empirical evidence required to secure essential planning permissions from local highway authorities. By addressing pinch points during the design phase, you protect your production schedule and ensure public safety.

    Precision is a functional necessity in the high-stakes world of event logistics. As planning approval specialists since 2014, ML Traffic Engineers delivers the expert AutoTURN analysis you need to satisfy council requirements. We provide a rapid UK-wide service that balances technical authority with a client-focused approach, reducing the regulatory pressure on your team. Don’t leave your site access to chance. Get a Professional Swept Path Analysis for Your Event to guarantee a compliant, safe, and efficient build-out. We’re ready to help you turn your event vision into a logistical success.

    Frequently Asked Questions

    What is swept path analysis for temporary event access?

    Swept path analysis for temporary event access is a technical simulation that calculates the space required by vehicles as they manoeuvre through a site. Unlike permanent developments, this analysis factors in transient obstacles like water-filled barriers, scaffolding, and temporary fencing. It tracks both the wheel paths and the outer body swing to ensure that heavy logistics trucks don’t strike permanent street furniture or temporary infrastructure during the build phase.

    Do I really need SPA for a three-day festival?

    You almost certainly need it if your event involves large vehicles on public roads or restricted sites. Highway authorities in England prioritise road safety and traffic flow regardless of the event’s duration. Even a short festival requires proof that emergency services can access the site and that delivery HGVs won’t cause gridlock. Failing to provide this technical data often leads to an immediate refusal of your planning application.

    Which vehicle templates are most important for event planning?

    The most critical templates include the 16.5m articulated vehicle for stage deliveries and the 12m rigid HGV for general logistics. For safety compliance, you must also model emergency vehicles. In 2026, many councils require specific simulations for aerial firefighting appliances, which have a larger turning circle diameter than standard fire pumpers. Modelling these “worst-case” vehicles ensures your site layout is robust enough for any operational requirement.

    Can I perform my own swept path analysis for a council application?

    While software is available, council highway officers typically reject drawings that lack professional engineering sign-off. A valid analysis requires expert knowledge of vehicle kinematics and local authority standards. Professional reports from specialists like ML Traffic Engineers provide the “stamp of authority” needed for approval. We use industry-standard AutoTURN software to ensure every simulation is georeferenced and accurate to the millimetre, reducing the risk of costly revisions.

    How much does a swept path analysis cost for a temporary event?

    The cost depends on the number of vehicle templates required and the complexity of the site layout. A single entrance simulation for one vehicle type is less intensive than modelling a full festival site with multiple emergency access routes. We provide tailored quotes based on the specific needs of your project. Investing in professional analysis early prevents expensive logistical failures and site re-designs that often occur when access issues aren’t identified.

    What happens if the SPA shows a vehicle cannot make a turn?

    If a simulation identifies a “pinch point” where a vehicle cannot turn, you must adjust the site layout before equipment arrives. This might involve moving temporary fencing, re-positioning ticket booths, or widening trackway sections. In some urban environments, we might suggest applying for a temporary Traffic Regulation Order to suspend on-street parking. Identifying these failures digitally allows you to solve access problems without delaying the event’s build-out schedule.

    Does the council require SPA for emergency fire tender access?

    Yes, fire tender access is a mandatory requirement for almost all UK event permits. You must demonstrate that a standard fire appliance can reach all parts of the site and manoeuvre safely. This usually requires a 3.7m clear width and specific turning radii. Without a verified swept path analysis for temporary event access, the council cannot guarantee public safety, which is a primary reason for the rejection of event management plans.

    How long does it take to get an SPA report for an event?

    We understand the urgency of event planning and typically deliver technical reports within a few working days. The exact timeline depends on the quality of the site plans provided and the number of vehicle movements to be modelled. For time-sensitive applications, we offer rapid turnaround services to ensure your submission meets council deadlines. Our goal is to reduce regulatory pressure by delivering precise, compliant reports as quickly as possible.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Fire Tender Swept Path Analysis Requirements UK: The 2026 Developer’s Guide

    Fire Tender Swept Path Analysis Requirements UK: The 2026 Developer’s Guide

    A single geometric error in your site layout can trigger an immediate planning refusal, regardless of how innovative your architectural vision looks on paper. As local authorities tighten safety protocols for 2026, mastering the fire tender swept path analysis requirements UK has become a critical milestone for every developer. You’re likely feeling the pressure to maximize every square metre of a site while facing conflicting advice from different local vehicle templates. It’s a difficult balance to strike when the safety of future residents and the commercial viability of your project are both on the line.

    We understand that technical compliance shouldn’t come at the expense of your design’s integrity. This guide provides the precise technical standards and regulatory insights needed to secure planning approval with confidence. You’ll gain a clear understanding of the differences between Manual for Streets and Building Regulations, alongside the specific vehicle dimensions required for modern fire tenders. We’ll walk through the process of creating a robust technical report that satisfies the Fire Service and the Local Planning Authority. By the end of this guide, you’ll know how to create a site layout that’s both 100% compliant and space-efficient.

    Key Takeaways

    • Identify the precise 2026 vehicle dimensions, including the standard 11.2m to 11.4m length, required to ensure your site layout accommodates modern fire appliances.
    • Master the fire tender swept path analysis requirements UK to effectively bridge the gap between high-density urban design and mandatory emergency access standards.
    • Discover how to balance “place-making” aesthetics with rigid safety requirements by correctly applying Manual for Streets guidance alongside local highway templates.
    • Understand why industry-standard AutoTURN simulations are now essential for providing the geometric certainty demanded by Local Planning Authorities.
    • Learn how a professional technical report serves as a vital bridge between your architectural vision and the stringent safety requirements of the Fire Authority.

    What is Fire Tender Swept Path Analysis and Why is it Mandatory?

    Swept Path Analysis (SPA) is the digital calculation of the horizontal space required by a vehicle as it executes a specific manoeuvre. In the context of fire tender swept path analysis requirements UK, this process is a non-negotiable safety protocol. It ensures that emergency appliances can reach every part of a development without being obstructed by tight corners, parked cars, or narrow pinch points. Precision is vital because fire tenders are among the largest and least manoeuvrable vehicles permitted on residential roads.

    Modern Local Planning Authorities (LPAs) have moved away from accepting manual “turning circle” drawings or simple radius lines. They now demand precise, computerised simulations that account for both wheel paths and body overhang. Providing this data is a core component of a Transport Statement, which serves as technical evidence that your site layout is functionally safe. Without a validated SPA, an application faces a high probability of immediate rejection on the grounds of public safety. LPAs cannot risk approving a layout where an emergency vehicle might become wedged or unable to turn.

    The Legal Framework: Building Regs Part B and NPPF

    The requirement for fire access is rooted in Approved Document B of the Building Regulations. This document specifies the minimum road widths and turning facilities needed for high-reach appliances, such as aerial platforms. While Building Regs often apply later in the project lifecycle, the National Planning Policy Framework (NPPF) requires safety to be designed in from the outset. The local Fire and Rescue Service acts as a statutory consultee during the planning process. For developers seeking to integrate advanced safety infrastructure, scaitecsecurity.uk provides expert design and installation of electronic fire systems. They will review your SPA to ensure that their crews can operate effectively in an emergency. If the geometry doesn’t work, the Fire Service will object, and the LPA will likely follow suit.

    Certain site layouts carry a higher risk of failing fire tender swept path analysis requirements UK. If your project includes narrow mews, tight urban infills, or complex cul-de-sacs, a standard “one-size-fits-all” approach won’t work. Relying on generic vehicle templates is a common pitfall. Modern fire tenders vary significantly in size; using an outdated or undersized template leads to a layout that is physically unworkable. The financial impact of a planning refusal is significant. Redesigning a site after the layout has been finalised often leads to a loss of developable space and substantial delays. Precision at the planning stage is the only way to de-risk your investment.

    Technical Requirements: UK Fire Tender Dimensions for 2026

    Precision in your site layout begins with using the correct vehicle data. For 2026, relying on outdated templates is a primary cause for planning rejection. While some historical guides suggest a length of 7.7m, modern fire tender swept path analysis requirements UK demand much larger specifications. A standard fire pumper now typically measures between 11.2m and 11.4m in length. Widths average 2.5m, but your analysis must account for wing mirrors and the significant body overhang that occurs during tight turns.

    To ensure a robust submission, digital simulations should incorporate a 10% safety margin. This buffer accounts for real-world variables like driver error or minor surface debris. Without this tolerance, a layout that works on a screen might fail in practice, leading to a safety objection from the Fire Authority. It’s vital to remember that these vehicles don’t just need to drive through; they need enough space to deploy equipment and operate safely in high-pressure scenarios.

    Common Vehicle Templates Used in SPA

    Architects often start with the ‘Home Office’ standard template, but local brigades frequently maintain their own bespoke dimensions. For high-density or high-rise developments, you must also model specialist appliances like Aerial Ladder Platforms (ALPs). These vehicles are significantly longer and require larger setup areas for their stabilising jacks. Using the ‘worst-case’ vehicle template for your specific region is the safest strategy to de-risk your project. If you’re unsure which template to use, our team can help you select the correct vehicle profile for your simulation.

    Understanding Turning Radii and Clearance

    A critical distinction in swept path analysis is the difference between kerb-to-kerb and wall-to-wall turning circles. The kerb-to-kerb radius tracks the path of the wheels, while the wall-to-wall radius accounts for the body of the vehicle. In tight urban settings, the body overhang often creates the most significant constraint. According to Manual for Streets guidance, road width on straight sections should be at least 3.7m for fire access, but this must increase on bends to accommodate the vehicle’s sweep.

    Vertical clearance is equally vital. Your report must confirm that balconies, archways, and overhanging trees provide at least 4.0m of clear height to prevent structural damage or access delays. Ensuring these technical details are correct before submission is the only way to avoid costly redesigns. If you need a professional to verify these clearances, ML Traffic Engineers UK can provide the detailed analysis required to satisfy highway officers.

    Manual for Streets vs. Local Highway Standards

    The transition from vehicle-led design to place-making has fundamentally altered how we approach residential road geometry. While national policy through the Manual for Streets encourages reduced speeds and increased pedestrian priority, developers must still satisfy the rigid fire tender swept path analysis requirements UK. This creates a technical tension. Local Highway Authorities often maintain their own design guides that may conflict with the more flexible national framework. Navigating this gap requires a data-driven approach to ensure that safety isn’t sacrificed for aesthetics.

    Early engagement with transport planning consultants allows you to identify these friction points during the initial site layout phase. It’s far more cost-effective to adjust a kerb line on a digital drawing than to face a planning refusal because the Fire Service deems a corner “unworkable”. A professional SPA acts as the evidence base that bridges the gap between local preferences and national standards.

    Designing for ‘Place’ Without Compromising Safety

    Manual for Streets supports the use of reduced carriageway widths, often as narrow as 3.7m, provided that the overall street geometry allows for emergency vehicle movement. By using precise SPA, we can justify tighter corner radii that discourage speeding while still providing 100% compliance. In recent Low Traffic Neighbourhood (LTN) designs, this approach has been vital. We use simulations to prove that fire tenders can navigate through filtered permeability points, ensuring that “quiet” streets remain accessible during emergencies. This level of detail removes the subjective “opinion” from highway safety assessments.

    S278 and S38 Agreement Implications

    The geometry of your emergency access routes has a direct impact on the road adoption process. For roads to be adopted under Highway Design S278 & S38 agreements, they must pass a rigorous Technical Approval process. Council engineers will scrutinise your SPA to ensure the layout meets fire tender swept path analysis requirements UK before they accept any future maintenance liability. If the analysis is flawed, the council may refuse adoption, leaving you with the ongoing costs of a private road network. Precision at the design stage ensures a smooth handover to the local authority.

    Conducting the Analysis: Software, Methodology, and Pitfalls

    Precision in the simulation phase is what separates a successful application from a costly refusal. We use AutoTURN Swept Path Analysis as the industry standard to model these complex movements. While 2D drawings were once sufficient, modern fire tender swept path analysis requirements UK now frequently necessitate 3D multi-vehicle simulations. These advanced models allow us to layer the vehicle’s path directly onto topographical surveys and proposed site plans. This ensures that every millimetre of clearance, including wing mirrors and body overhang, is accounted for in the final report.

    A common pitfall in DIY drawings is neglecting the physical limits of the vehicle and the driver. For example, Home Office guidance typically recommends that fire tenders shouldn’t be required to reverse more than 20m. Simulations that rely on excessive reversing or “perfect” steering angles are often flagged by highway officers as unworkable. Our analysis integrates real-world steering lock constraints to provide a simulation that the Fire Service can actually trust.

    The Step-by-Step SPA Methodology

    A rigorous methodology is essential for a report that stands up to technical scrutiny. Our process follows three distinct stages to ensure accuracy:

    • Vehicle Selection: We identify the correct appliance template, often consulting directly with local brigades to ensure the modern 11.4m “worst-case” scenario is used where required.
    • Full Manoeuvre Simulation: We model both inbound and outbound paths. This includes assessing the turn-in from the existing public highway and any internal turning heads.
    • Conflict Analysis: We map the vehicle’s sweep against street furniture, lighting columns, and allocated parking bays to identify potential strike points before they become a problem on-site.

    Designing Smart: Overrun Areas and Hidden Solutions

    When site constraints are extreme, we look for geometric solutions that don’t compromise the development’s density. Using mountable kerbs or reinforced “grasscrete” surfaces allows a fire tender to overrun a landscaped area during an emergency without damaging the vehicle or the infrastructure. This approach effectively widens the turning path while maintaining the visual appeal of a narrow, “place-focused” street.

    Junction design is another critical area. Hammerhead or turning tee junctions must be sized specifically for the 2026 fire tender dimensions mentioned in previous sections. We also provide clear strategies for managing on-street parking to ensure fire routes remain clear 24/7. If you need a validated simulation for a complex layout, request a professional swept path analysis to ensure your design is functionally safe and planning-ready.

    Fire Tender Swept Path Analysis Requirements UK: The 2026 Developer's Guide

    Securing Approval: The Role of a Professional Transport Engineer

    Professional validation is the final safeguard against planning refusal. While earlier sections detailed the geometric standards, the application of these rules requires an expert transport engineer to interpret and defend the results before statutory consultees. Highway officers frequently challenge self-produced drawings because they often lack the technical rigour needed to satisfy the Fire Authority’s operational standards. A professional report from ML Traffic Engineers UK provides a clear audit trail of assumptions, vehicle data, and safety tolerances, transforming a simple drawing into a robust planning document.

    By utilizing integrated Swept Path Analysis Services, developers can move from design uncertainty to geometric confidence. We manage the full technical lifecycle, ensuring that the 10% safety margins and specific regional dimensions discussed previously are correctly applied. This proactive approach reduces the regulatory pressure on your team and ensures that safety is never a barrier to your development’s progress or commercial viability.

    From Concept to Planning Success

    Technical success starts at the feasibility stage. Identifying potential access constraints before the site layout is frozen is far more efficient than attempting to fix a layout after a planning objection. We provide the technical evidence required to navigate complex negotiations with Local Highway Authorities, particularly when site-specific constraints make standard templates difficult to apply. This expert “proof” is a core element of successful Transport Assessments. We act as the bridge between your architectural vision and the statutory requirements, providing the LPA with the confidence that the site remains safe and functionally sound.

    Why Precision Matters in 2026

    The UK planning environment in 2026 is defined by increased scrutiny on fire safety protocols. Following recent regulatory updates, the margin for error in emergency access has effectively vanished. LPAs now prioritise digital-first submissions where every turn and clearance is verified through high-fidelity simulation. Failing to meet the fire tender swept path analysis requirements UK at this stage can lead to indefinite delays, loss of land value, and significant financial penalties. Contact ML Traffic Engineers UK today to ensure your fire tender SPA is fully compliant and ready for technical approval.

    Securing Your Development’s Approval through Technical Precision

    Mastering the fire tender swept path analysis requirements UK is no longer an optional design exercise; it’s a fundamental requirement for planning success in 2026. By using the correct 11.4m vehicle templates and accounting for modern safety margins, you protect your development from costly redesigns and safety objections. We’ve explored how balancing place-making with rigid access standards requires technical precision and early-stage simulation to satisfy both the Fire Service and Local Planning Authorities.

    Our team provides the technical authority needed to bridge the gap between an architect’s vision and regulatory compliance. As S278 and S38 compliance specialists, we utilize expert AutoTURN simulations to deliver precise results with a fast turnaround for your planning deadlines. Don’t let a geometric error compromise your site’s potential. We’re ready to help you navigate these intricate regulations so you can move forward with confidence.

    Get a Professional Swept Path Analysis Quote for Your Site

    Frequently Asked Questions

    Is swept path analysis a mandatory requirement for all UK planning applications?

    Swept path analysis isn’t mandatory for every minor application, but it’s a standard requirement for any project involving new roads or changes to existing access. Local Planning Authorities and Fire Authorities demand this technical evidence to verify that emergency vehicles can reach the development safely. For residential schemes and high-density urban infills, providing these simulations is often a condition of validation to ensure compliance with national safety standards and local highway policies.

    What is the minimum width required for a fire tender access road in the UK?

    According to Approved Document B of the Building Regulations, the minimum width for a fire tender access road on straight sections is 3.7m. However, this width must increase significantly at bends and junctions to accommodate the vehicle’s turning sweep. Meeting the fire tender swept path analysis requirements UK involves demonstrating that these widened sections are geometrically sufficient for the specific appliance used by the local brigade, including clearances for wing mirrors and body overhang.

    Can I use a generic ‘standard vehicle’ template for my fire access analysis?

    Using a generic template is a common reason for planning delays. While national standards exist, local Fire and Rescue Services often operate bespoke appliances with unique wheelbases and turning capabilities. For 2026 submissions, we recommend using regional vehicle data that reflects the “worst-case” scenario for your specific site location. This precision ensures that your analysis is robust enough to satisfy statutory consultees who prioritise operational reality over theoretical generic models.

    What happens if my site layout doesn’t meet the standard fire tender turning circle?

    Failing to meet turning circle requirements usually results in an immediate objection from the Fire Authority and subsequent planning refusal. If your layout is constrained, we can often identify technical solutions such as mountable kerbs, “grasscrete” overrun areas, or reconfigured parking layouts. These adjustments allow the vehicle to navigate the site without requiring a total redesign. Early technical intervention is the most effective way to de-risk the project and maintain developable space.

    How much does a professional fire tender swept path analysis cost?

    The cost of a professional analysis varies depending on the complexity of the site and the number of manoeuvres required for the simulation. Factors such as the inclusion of specialist appliances like Aerial Ladder Platforms also influence the final fee. Rather than relying on industry averages, we provide tailored quotes based on your specific project requirements. This ensures you receive a comprehensive technical report that meets all statutory standards without paying for unnecessary additional simulations.

    Does the Fire and Rescue Service need to see the swept path analysis drawings?

    Yes, the local Fire and Rescue Service acts as a statutory consultee for most major planning applications. They review the swept path analysis drawings to confirm their crews can access every part of the development and have sufficient space to operate equipment. Providing clear, computer-generated simulations reduces the likelihood of an objection. A professional report demonstrates that you’ve proactively addressed their operational needs, which significantly streamlines the technical approval process.

    What is the difference between a fire tender and an aerial ladder platform in SPA?

    A standard fire tender is a pumper appliance used for general firefighting, whereas an Aerial Ladder Platform (ALP) is a specialist vehicle for high-reach operations. ALPs are significantly longer and require much larger turning radii. Crucially, an ALP simulation must also account for the deployment of stabilising outriggers, which consume additional horizontal space. Understanding these differences is vital for high-rise developments where both vehicle types must be modelled to ensure full site access.

    How far can a fire engine reverse according to UK building regulations?

    Approved Document B states that fire tenders shouldn’t be required to reverse more than 20m. If a road exceeds this length, you must provide a suitable turning facility, such as a hammerhead or turning circle. Our simulations verify that these turning heads are correctly sized for modern appliances. Designing out excessive reversing manoeuvres is a key part of meeting the fire tender swept path analysis requirements UK and securing support from the Fire Authority.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Car Transporter Swept Path Analysis: UK Planning Guide 2026

    Car Transporter Swept Path Analysis: UK Planning Guide 2026

    Using a standard HGV template for your automotive development is the fastest way to ensure a planning rejection from the Local Highway Authority. While a typical semi-trailer has a 2.04-metre front overhang, a car transporter’s unique geometry extends to 4.19 metres from the kingpin axis. This discrepancy means generic simulations fail to account for the actual swing of the vehicle. If your swept path analysis for car transporters UK doesn’t reflect these specific legal dimensions, you risk costly site redesigns or complete project failure.

    We understand that navigating the Road Vehicles (Construction and Use) Regulations 1986 is a high-stakes task where precision is a functional necessity. You need a layout that maximizes every square metre of land without compromising on safety or operational flow. This guide helps you master the technical requirements for car transporter maneuverability to secure site approval for UK automotive developments. We will detail the essential vehicle templates for 2026, the software standards for Transport Statements, and the exact methodology required to satisfy highway officers the first time around.

    Key Takeaways

    • Learn why the unique 18.75m length and significant front swing of car transporters make standard HGV templates insufficient for accurate planning.
    • Understand how to integrate a precise swept path analysis for car transporters UK into your Transport Statement to meet National Planning Policy Framework requirements.
    • Identify design standards for gate widths and entrance radii that allow for seamless vehicle movement while maximizing available site area.
    • Discover how to position dedicated unloading zones to maintain site safety and prevent interference with customer parking or pedestrian routes.
    • Master the technical documentation process using industry-standard AutoTURN software to avoid planning delays and expensive post-construction modifications.

    Understanding Swept Path Analysis for Car Transporters in the UK

    Swept Path Analysis (SPA) is a computer-aided simulation that maps the precise movement of a vehicle through a site. It’s a technical requirement for any development involving heavy logistics. For automotive sites, a professional swept path analysis for car transporters UK is vital. It proves that these oversized vehicles can enter and exit without striking street furniture or mounting kerbs. We use this data to validate site layouts before ground is even broken.

    Multiple stakeholders rely on these technical drawings. Planning officers use them to ensure public safety. Highway engineers check them to prevent damage to the road network. Architects need them to maximize the usable space on a tight site. The primary goal is demonstrating safe ingress and egress. If your drawings don’t show clear passage without encroaching on footways, your application will likely face delays or rejection.

    To better understand how these simulations function in a digital planning environment, watch this demonstration of the technology:

    What is a Swept Path?

    A swept path represents the total “envelope” of space a vehicle occupies during a specific manoeuvre. It’s more than just a turning circle. You must distinguish between the wheel path, which tracks the tyres, and the body swept path, which accounts for the front and rear overhangs. Car transporters require significantly larger safety margins than standard rigid vehicles. Using advanced vehicle swept path analysis software ensures these margins are calculated with millimetre precision, protecting both the vehicle and the site infrastructure.

    Why Transporters are Unique

    Car transporters are a special case in traffic engineering because they don’t behave like standard HGVs. Their geometry is complex. A transporter semi-trailer can have a kingpin-to-rear length of 12.5 metres, but it’s the front swing that creates the most risk. The distance from the kingpin axis to the front can be up to 4.19 metres, which is nearly double the 2.04 metres found on a standard articulated lorry. This creates a massive “sweep” that can easily strike nearby objects if the site isn’t designed correctly. Their low-ground clearance also makes them sensitive to vertical changes in the road surface. ML Traffic Engineers uses specialized AutoTURN software to model these multi-articulated templates accurately, ensuring your site remains functional for all expected vehicle types.

    The Unique Geometry of Car Transporters: Why Standard HGV Templates Fail

    Relying on generic vehicle templates is a common pitfall in site design that leads to immediate technical objections. While a standard articulated lorry typically follows standard UK HGV dimensions of 16.5 metres, a car transporter often reaches a total length of 18.75 metres. This difference of over two metres fundamentally changes how the vehicle interacts with a site layout. If your swept path analysis for car transporters UK uses an undersized template, the resulting drawings will be technically flawed and likely rejected by highway officers during the consultation phase.

    The primary risk lies in the specific front swing and rear kick-out characteristics that define these vehicles. As established, the 4.19-metre front overhang is nearly double that of a standard HGV. During a tight turn, this section swings wide, creating a massive arc that can strike boundary walls or street furniture. ML Traffic Engineers UK uses AutoTURN software to create bespoke vehicle profiles that reflect these exact dimensions, ensuring that every simulation represents real-world conditions rather than a theoretical average that fails to account for these extreme sweeps.

    Articulation and Pivot Points

    The coupling point of a transporter dictates its entire turning circle and determines how much space is required for safe passage. Semi-trailers pivot at the kingpin, but many UK car carriers utilize drawbar configurations with multiple articulation points. These multi-articulated vehicles behave differently during low-speed manoeuvres, often exhibiting a pronounced cut-through effect on tight UK junctions. This effect occurs when the rear axles follow a significantly tighter path than the tractor unit, requiring wider entrance radii to prevent the trailer from mounting the kerb. To ensure your technical drawings meet these rigorous standards, you can review our practical guide to AutoTURN simulations.

    Overhangs and Loading Ramps

    Loading ramps and top decks add another layer of complexity to site planning that standard templates ignore. During on-site manoeuvres, extended ramps increase the effective length of the vehicle, creating a rear kick-out that can sweep across adjacent parking bays or pedestrian walkways. Sloped dealership entrances also present vertical clearance challenges. Because car transporters have exceptionally low ground clearance, they are prone to grounding out on steep transitions or sudden changes in gradient. ML Traffic Engineers UK prioritizes worst-case scenario modelling as the gold standard for UK planning. This approach accounts for the vehicle at its maximum extension and lowest clearance, providing a safety-conscious design that protects your infrastructure from day one. For precise technical support with your site layout, contact the experts at ML Traffic Engineers UK to secure a reliable assessment.

    A professional swept path analysis for car transporters UK isn’t just a supporting document; it’s the technical backbone of your formal submission. Under the National Planning Policy Framework (NPPF), developers must prove that safe and suitable access is achievable for all site users. For automotive developments, this requires a detailed simulation within a Transport Statement or Assessment. These documents provide the necessary evidence that your site can handle high-frequency logistics without compromising the surrounding road network.

    The choice of design standards often dictates the success of an application. “Manual for Streets” usually applies to urban dealership environments where pedestrian interaction is frequent. Conversely, the “Design Manual for Roads and Bridges” (DMRB) governs larger logistics hubs near trunk roads. We provide technical drawings in standard 1:200 or 1:500 scales, featuring precise tracking overlays. These overlays show the exact path of the tractor unit and trailer, ensuring that the proposed geometry accommodates the vehicle’s full range of motion.

    Local Highway Authority Expectations

    Council officers prioritize the protection of public infrastructure and pedestrian safety. They scrutinize drawings for “kerb strikes” where the vehicle body or wheels overhang onto the footway. Another critical requirement is the demonstration of two-way flow. Officers need to see if a car transporter can safely pass an oncoming vehicle on the access road. If the simulation shows the transporter straddling both lanes, the authority may mandate a wider road design. For developers working in the capital, our Transport Statement London Guide details the specific requirements unique to the city’s constrained road network.

    Common Reasons for Planning Refusal

    Inadequate manoeuvrability data is a frequent cause of planning delays. Rejections often occur when a site layout fails to provide sufficient clearance for emergency vehicles while a transporter is in its unloading position. Blocking the public highway during reversing manoeuvres is another major red flag for highway officers. Finally, using inaccurate vehicle templates that don’t account for the 18.75-metre length and 4.19-metre front swing of modern car carriers will lead to immediate technical failure. Precision in these drawings is a functional necessity to avoid costly redesigns after a site is built.

    Best Practices for Designing Car Dealerships and Logistics Hubs

    Translating technical dimensions into a functional site layout requires strategic spatial planning. For 11-car transporters, optimizing gate widths and entrance radii is the first step in preventing structural damage. While a standard 10-metre radius might suffice for smaller HGVs, car carriers often require bespoke adjustments to account for their extended 18.75-metre length. A precise swept path analysis for car transporters UK allows you to define the exact footprint required for safe movement, ensuring that gates and boundaries are positioned with millimetre accuracy.

    Dedicated unloading zones are a non-negotiable requirement for modern site safety. These zones must operate independently of customer parking and pedestrian thoroughfares to avoid operational conflicts. Incorporating turning heads is equally vital; this ensures transporters can exit the site in a forward gear, which is a primary requirement for most Local Highway Authorities in England. You must also account for vertical geometry. Car transporters feature exceptionally low belly-clearance, meaning even minor gradient changes at entrance thresholds can cause grounding. We model these transitions in 3D to ensure the site remains accessible under all loading conditions.

    Dealership Access and Forecourt Layout

    In high-value retail environments, every square metre of display space counts. Squeezing the swing space required for deliveries often leads to planning rejections or operational gridlock. We use SPA to justify narrower access roads through precision engineering, proving to officers that the vehicle remains within its designated envelope. This data-driven approach allows for a layout that maximizes commercial potential without compromising on logistics. You can see how we apply these principles across various ML Traffic Project Types to achieve planning success.

    Logistics and Distribution Centres

    Logistics hubs face the challenge of high-frequency transporter movements and multi-vehicle operations. Site capacity must be proven through simulations that show multiple transporters can navigate the yard simultaneously. Safety is paramount, requiring clear segregation between heavy vehicle paths and pedestrian routes. A robust swept path analysis for car transporters UK provides the evidence needed to satisfy the Health and Safety Executive (HSE) and local planners that your facility can operate at peak capacity without risk. To ensure your site design meets these rigorous technical standards, request a professional swept path analysis from ML Traffic Engineers UK today.

    Car Transporter Swept Path Analysis: UK Planning Guide 2026

    Expert Swept Path Analysis Services by ML Traffic Engineers UK

    ML Traffic Engineers UK streamlines the technical documentation process to ensure your automotive development moves from concept to construction without regulatory friction. Our workflow begins with your CAD site plans, which we import into industry-standard AutoTURN software. We then apply bespoke vehicle profiles that reflect the exact 18.75-metre length and 4.19-metre front swing of modern car carriers discussed in previous sections. This meticulous approach produces a high-fidelity swept path analysis for car transporters UK that forms the technical core of your Transport Statement or Assessment. By integrating these services, we provide a unified evidence base that demonstrates site functionality to even the most demanding highway authorities.

    Why Precision Matters in 2026

    Planning authorities across England have significantly increased their scrutiny of vehicle access over the last decade. In 2026, a generic HGV simulation is no longer sufficient to secure approval for specialized automotive sites. Professional SPA drawings act as a universal language that builds immediate trust with Highway Officers. They show that you’ve considered the high-stakes environment of heavy logistics and have prioritized public safety. We understand that planning deadlines are often tight and unpredictable. Our team maintains a commitment to rapid turnaround times, ensuring you have the technical proof required to meet your submission dates without delay.

    Securing Your Planning Approval

    Our technical analysis serves as a vital safeguard against the risk of planning refusal or expensive post-construction modifications. We identify potential pinch points early in the design phase, allowing for minor adjustments that prevent major logistical failures later. While we provide nationwide coverage across the UK, we possess deep expertise in navigating the unique constraints of metropolitan areas. For developers working in high-density urban environments, our Swept Path Analysis Services London page offers specific insights into securing approval within the capital’s complex road network.

    ML Traffic Engineers UK stands ready to act as your dependable technical partner throughout the full project lifecycle. We take immense pride in our adherence to industry benchmarks and our ability to reduce the regulatory pressure on our clients. Whether you’re developing a single dealership or a national logistics hub, our expert simulations provide the precision your project demands. Contact our team today to discuss your site requirements and receive a project-specific fee proposal for your next swept path analysis for car transporters UK.

    Secure Your Automotive Development Success

    Precision is a non-negotiable requirement for automotive site design. Standard HGV templates simply don’t account for the unique 18.75-metre length and extreme front swing of specialized car carriers. Failing to model these movements accurately leads to kerb strikes, operational bottlenecks, and avoidable planning rejections. A professional swept path analysis for car transporters UK provides the technical certainty needed to satisfy Local Highway Authorities while maximizing your site’s commercial potential.

    ML Traffic Engineers brings over 10 years of transport planning expertise to your project. We deliver specialized AutoTURN vehicle simulations that support planning applications across England, ensuring your site is both safe and functional. Our team is ready to help you navigate intricate regional regulations with ease. Request a Swept Path Analysis Quote from ML Traffic Engineers to secure your project’s approval. We’re committed to your success through technical excellence and unwavering reliability.

    Frequently Asked Questions

    What is the standard size of a car transporter for SPA in the UK?

    A standard articulated car transporter in the UK typically measures up to 18.75 metres in total length. For a precise swept path analysis for car transporters UK, we model a semi-trailer with a maximum kingpin-to-rear length of 12.5 metres. A critical dimension is the front overhang, which can extend 4.19 metres from the kingpin axis. These specific legal dimensions ensure the simulation reflects the vehicle’s true turning envelope.

    Do I need a swept path analysis if my dealership already exists?

    You generally require an updated analysis if you are submitting a planning application for site alterations, building extensions, or changes to access arrangements. Even for established dealerships, Local Highway Authorities in England often demand proof that modern, larger transporters can still safely manoeuvre without overrunning footways. Providing a current simulation helps mitigate the risk of enforcement action or planning delays during site upgrades.

    Can a car transporter reverse into a site from a main road?

    Reversing from a main road is strongly discouraged by UK highway authorities due to significant safety risks and potential traffic disruption. Planning officers almost always require site layouts that allow transporters to enter and exit in a forward gear. If your site is constrained, we use swept path analysis to design internal turning heads or dedicated unloading zones that facilitate safe, forward-facing movements, ensuring compliance with local safety benchmarks.

    What software is used for car transporter swept path analysis?

    ML Traffic Engineers utilizes industry-standard AutoTURN software to perform high-precision simulations. This tool is the benchmark for UK planning applications because it allows for the creation of bespoke vehicle profiles. Unlike generic templates, AutoTURN enables us to model the complex multi-articulation and specific front-swing characteristics of modern car carriers. This ensures the technical drawings we produce for your Transport Statement are accurate and reliable.

    How much clearance is required between the vehicle and the kerb in a simulation?

    While there is no single statutory figure, a safety margin of 300mm to 500mm between the vehicle’s body envelope and the kerb line is standard practice in England. This buffer accounts for driver error and minor variations in vehicle positioning. In a professional swept path analysis for car transporters UK, we demonstrate that the vehicle can complete its manoeuvre without any part of the body or wheels striking street furniture or mounting the footway.

    Will the council accept a simulation using a standard 16.5m articulated lorry template?

    It’s highly unlikely that a council officer will accept a standard 16.5-metre articulated lorry template for an automotive development. Car transporters have a unique geometry, specifically a much larger front overhang and a total length reaching 18.75 metres. Using an undersized template is a technical error that often leads to immediate planning refusal. We provide bespoke simulations that reflect the actual vehicles servicing your site to build trust with the authority.

    What information do I need to provide for a swept path analysis quote?

    To provide an accurate fee proposal, we require a scaled site layout plan, ideally in AutoCAD (DWG) format. You should also specify the largest vehicle expected to service the site, such as an 11-car transporter. Details regarding the intended access points and any specific unloading zones help us tailor the analysis. This information allows our engineers to assess the complexity of the project and provide a rapid response for your planning deadline.

    How long does it take to produce a car transporter SPA report?

    We prioritize rapid turnaround times to help you meet strict planning submission deadlines. Once we receive your CAD site plans and vehicle requirements, we typically produce the technical drawings and supporting report within 3 to 5 working days. Our efficient workflow, utilizing the latest AutoTURN software, ensures you receive precise, professional documentation without unnecessary delays. This readiness allows your project to progress through the planning system with technical confidence.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Swept Path Analysis London: The 2026 Developer’s Guide to Planning Success

    Swept Path Analysis London: The 2026 Developer’s Guide to Planning Success

    A single failed technical audit in a London borough can delay your development project by 24 weeks. In the high-stakes environment of 2026 planning, a precise swept path analysis london is no longer just a technical checkbox; it’s a strategic necessity for securing approval. You’re likely facing the pressure of maximizing site density while trying to satisfy conflicting requirements for refuse collection and fire safety. It’s a difficult balance to strike when every square meter counts and London’s footprints remain notoriously tight.

    We understand that navigating the intricate regional regulations of 32 different boroughs feels like a moving target. This guide provides the technical clarity you need to master current standards and TfL expectations for a successful submission. You’ll learn how to leverage high-precision digital modeling to optimize your site layout for both safety and density. We examine the specific vehicle dimensions required across the capital, from Westminster’s compact trucks to Hackney’s larger fleet, ensuring your submission is robust enough to withstand the most rigorous highway authority scrutiny.

    Key Takeaways

    • Understand how computer-aided simulations model precise vehicle movements to ensure site designs accommodate critical technical parameters like steering lock and wheelbase.
    • Learn why industry-standard AutoTurn software and OS MasterMap data are the required foundations for high-precision digital modeling in the capital.
    • Identify the specific project triggers that make a swept path analysis london mandatory for residential, commercial, or mixed-use planning submissions.
    • Discover how to avoid common design failures like the “refuse vehicle trap” by managing over-hang and over-run in constrained urban environments.
    • Position your development for success by aligning with borough-specific vehicle dimensions to reduce regulatory risk and prevent costly planning delays.

    Understanding Swept Path Analysis for London Developments

    Following the August 2026 NPPF update, precision isn’t optional in the capital’s planning process. London planning departments demand technical proof that vehicles can navigate proposed site layouts without compromising safety or existing infrastructure. A swept path analysis london provides this proof through high-fidelity computer simulations that visualize the movement of vehicles through a specific space. It’s a critical tool for demonstrating that your site is both feasible and safe before any ground is broken.

    To better understand how these simulations function in a planning context, watch this technical overview:

    What is a Swept Path Analysis (SPA)?

    SPA is the digital verification of a vehicle’s physical footprint during movement. It uses advanced vehicle swept path analysis software to model how specific vehicles, such as refuse trucks, delivery vans, or fire engines, interact with the built environment. These simulations are far more than simple turning circles; they’re dynamic models that account for speed, steering rates, and physical constraints.

    The simulation integrates four critical technical components to ensure accuracy:

    • Vehicle Width and Length: The static dimensions of the vehicle’s chassis and bodywork.
    • Wheelbase: The distance between axles, which fundamentally dictates the turning radius and pivot point.
    • Steering Lock: The maximum angle the wheels can turn, which limits the vehicle’s agility in tight corners.
    • Front and Rear Overhang: The portion of the vehicle that extends beyond the wheels, which is often the cause of collisions with curbs or walls.

    Engineers distinguish between the “vehicle body” path and the “swept area.” While the wheels follow a specific track, the body of the vehicle often “sweeps” over a wider area during a turn. Failing to account for this overhang is a primary cause of planning rejection in 2026. Professional autoturn swept path analysis ensures these margins of error are eliminated during the design phase.

    Why London Boroughs Require SPA Drawings

    London’s narrow Victorian road networks weren’t built for modern logistics or large emergency vehicles. Tight corners and restricted access points mean that what looks feasible on a standard 2D drawing often fails in a real-world scenario. Planning officers now view 2D static drawings as insufficient because they don’t account for the dynamic movement of heavy goods vehicles (HGVs) or the specific requirements of borough-specific refuse fleets.

    By requiring a comprehensive swept path analysis london, boroughs ensure that new developments don’t create “dead-end” traps where drivers are forced into dangerous multi-point turns. This alignment with London’s “Vision Zero” strategy prioritizes pedestrian and cyclist safety by ensuring all vehicle maneuvers are predictable and contained within designated zones. It’s a functional necessity for protecting public safety and ensuring that essential services, like waste collection and fire response, can operate without obstruction.

    Technical Standards: Vehicle Templates and Software Requirements

    Precision in a swept path analysis london depends entirely on the quality of the underlying data. We utilize OS MasterMap as the non-negotiable foundation for every analysis. This ensures the digital site boundary aligns perfectly with the physical reality of the London streetscape. Without this baseline, even the most advanced simulation fails to provide the reliable results required by highway authorities. Accuracy isn’t just a goal; it’s a functional necessity for project approval.

    Transport engineers distinguish between design vehicles and checking vehicles. Design vehicles are used to shape the minimum physical geometry of the site during the early planning stages. Checking vehicles, such as specialized refuse trucks or emergency tenders, verify that the final layout functions safely under real-world conditions. Modern 2026 technology now allows us to provide live animations of these vehicle movements. These visualizations give planning committees a clear, dynamic view of how access points will operate in practice.

    Common Vehicle Templates for London Projects

    Selecting the correct vehicle template is vital because London boroughs maintain diverse fleet specifications. While the 11.4m Refuse Collection Vehicle (RCV) is the standard benchmark, specific requirements vary. For example, Westminster often utilizes smaller 8.3m vehicles, while Hackney may require testing against 12.2m trucks. Residential developments must also satisfy fire tender access requirements under Building Regulations Part B. We ensure your layout accommodates the 11.2m fire appliance used by the London Fire Brigade. For commercial sites, we model pantechnicons and delivery vans to ensure loading areas don’t obstruct the public highway.

    The Role of AutoTurn and CAD Accuracy

    Manual turning circle templates are obsolete in modern traffic engineering. They cannot account for the complex steering rates and multi-point maneuvers required in tight urban spaces. We use AutoTurn to provide millimetre-perfect site layout adjustments within a CAD environment. This integration allows for immediate identification of over-hang or over-run issues. If a vehicle body sweeps over a proposed boundary, we can fix the design before it reaches the planning stage. Professional-grade software is essential to withstand local authority scrutiny and reduce project risk. If you are preparing a submission, a professional swept path analysis provides the technical evidence needed to secure your approval. You can also review our practical guide for planning applications to see how these standards are applied in detail.

    When is Swept Path Analysis Mandatory in London?

    Planning officers use technical data to prevent congestion and safety hazards before they occur. A swept path analysis london is mandatory whenever a development alters how vehicles interact with the public highway or internal site infrastructure. While large scale schemes always require this data, smaller developments often trigger the requirement based on site constraints or specific borough standards. Local highway authorities use these drawings to verify that your proposal won’t lead to blocked roads or dangerous reversing maneuvers.

    We’ve identified a 5-step trigger checklist to help you determine if your project requires a formal simulation:

    • New Access Points: Any creation or modification of a junction onto the public highway.
    • Tight Footprints: Internal layouts with limited turning space, cul-de-sacs, or courtyard access.
    • Service Requirements: Developments requiring regular refuse collection or HGV deliveries.
    • Strategic Road Impact: Sites bordering the Transport for London (TfL) Road Network (TLRN).
    • Change of Use: Projects that increase the size or frequency of vehicles visiting the site.

    Triggers for SPA in Planning Applications

    In dense urban areas like Tower Hamlets, planning departments focus heavily on high-density refuse collection maneuvers. In contrast, Westminster prioritizes heritage street preservation and often requires testing against smaller, specialized vehicle templates. If your site includes a cul-de-sac or a restricted loading bay, you must prove that the largest anticipated vehicle can enter and exit in a forward gear. Failing to provide this evidence often results in an immediate holding objection from the highway officer. Integrating these drawings into your Transport Statement London ensures that your technical narrative is backed by visual proof.

    Integrating SPA into Transport Assessments

    SPA drawings serve as the technical backbone for comprehensive Transport Assessments. For developments in high PTAL zones (Public Transport Accessibility Level), you can use a swept path analysis london to justify car-free or low-car designs. By proving that the site only needs to accommodate essential service vehicles, you can maximize residential or commercial density. This precision allows you to optimize every square meter of the site while maintaining compliance with TfL’s Healthy Streets indicators. We ensure that the written technical report and the CAD simulations are perfectly synchronized to withstand the most rigorous local authority scrutiny.

    Swept Path Analysis London: The 2026 Developer’s Guide to Planning Success

    Avoiding Common Design Failures in Tight Urban Spaces

    London’s constrained streetscapes leave zero margin for error during the planning phase. A swept path analysis london often reveals that what looks functional on a traditional site plan is physically impossible for a heavy vehicle. The “Refuse Vehicle Trap” occurs when a designer assumes a standard turning circle is sufficient, only to find the vehicle’s body strikes a boundary wall or overhangs a pedestrian footway. These kerb-strike failures and over-hang issues are the leading causes of technical objections from highway officers.

    Managing over-run (the path of the wheels) and over-hang (the path of the body) is a functional necessity in the capital. In narrow Victorian corridors, a vehicle might successfully clear a corner with its wheels but strike a street lamp or building with its rear swing. We use high-fidelity modeling to identify these conflicts while the design is still fluid. This allows for minor layout adjustments that prevent major planning setbacks and ensure your site remains safe for all road users.

    Managing Refuse and Emergency Access

    Waste collection is the primary hurdle for most London planning submissions. While the 11.4m refuse collection vehicle (RCV) is the benchmark, many boroughs maintain strict reversing limits to protect pedestrians. Most London councils cap reversing distances at 12 meters for safety reasons. If your site layout requires a vehicle to reverse out onto the public highway, it’ll likely face an immediate refusal. We ensure your design accommodates a full 3-point turn within the site boundary or provides a through-route that meets borough-specific standards.

    Emergency access is equally non-negotiable for project success. Building Regulations Part B require fire tenders to reach within 45 meters of all points within a residential building. Balancing these rigid access paths with landscaping and “Healthy Streets” requirements is a complex task. Our simulations prove that your green infrastructure doesn’t obstruct the 11.2m fire appliance path, satisfying both the planning officer and the fire authority simultaneously.

    The Cost of Design Errors in London

    A failed technical audit can delay your project by 24 weeks. If a Highway Officer issues an objection based on insufficient access proof, you’re often forced to re-submit your entire planning application. The financial implications are most severe when errors affect structural elements, such as basement car park ramps or supporting columns. Re-designing a basement after a planning refusal is a costly and time-consuming process that can derail project financing. Industry data suggests that early-stage swept path analysis london saves up to 15% in total project design costs by preventing these late-stage structural revisions. If you’re refining a site layout, our swept path analysis services provide the technical certainty needed to avoid these common pitfalls.

    Professional SPA Services: Securing Your Planning Approval

    Securing planning approval in London’s 2026 regulatory environment requires more than just a software-generated drawing. It requires a technical defense of the proposed site geometry. Choosing a specialist London transport consultancy reduces project risk by ensuring that every simulation is rooted in local highway authority expectations. We don’t just provide static images; we deliver a comprehensive service that bridges the gap between architectural vision and functional highway safety. Our team takes pride in precision, recognizing that a single oversight can derail an entire development timeline.

    Our “cradle-to-grave” approach ensures that your project is supported from inception to completion. We move from initial data collection and site plan review to the production of a final technical report. Interpreting a swept path analysis london drawing involves understanding the dynamic interaction between vehicle body swing and physical constraints. We provide the expert analysis needed to spot potential conflicts before they become grounds for a highway officer’s objection, allowing for immediate design refinements.

    Why Work with ML Traffic Engineers?

    We understand that precision is a functional necessity in high-stakes urban planning. Our team has deep expertise in navigating the statutory requirements of all 32 London boroughs and TfL. We eliminate the logistical pressure on developers by providing integrated services. This includes parking surveys and traffic data collection that feed directly into our digital models. Our commitment to accuracy prevents the 24-week delays often caused by insufficient access proof. We position ourselves as a vital partner in your design team, ensuring compliance with the August 2026 NPPF update and Healthy Streets standards.

    Getting Your SPA Quote for 2026 Projects

    To provide a precise fee proposal for your 2026 project, we require specific information to assess the complexity of the maneuvers. We need your current site plans in CAD format, the specific vehicle types you need to model, and the overall project scope. We understand the fast-moving nature of infrastructure development and the urgency of planning deadlines. Our team maintains rapid response capabilities to help you meet critical submission dates without compromising technical quality. We’re ready to provide the technical evidence required to satisfy even the most rigorous highway authority scrutiny. Contact ML Traffic Engineers today for a bespoke Swept Path Analysis quote to secure your project’s future.

    Securing Your Development’s Future with Technical Precision

    Success in 2026 planning requires more than just meeting minimum standards; it demands technical excellence. Navigating borough-specific vehicle templates and avoiding common design pitfalls are essential steps for any London developer. By prioritizing a precise swept path analysis london, you eliminate the risk of technical objections that often lead to costly 24-week delays. Precision isn’t just a goal; it’s a functional necessity for protecting your project’s timeline and budget.

    ML Traffic Engineers has provided fully-managed transport planning services since 2014. As specialists in AutoTurn and CAD accuracy, we ensure your site layout is robust enough to withstand the most rigorous local authority scrutiny. We take the regulatory pressure off your team by delivering millimetre-perfect simulations that guarantee safe and efficient access. Don’t leave your planning submission to chance when technical certainty is within reach.

    Request a Swept Path Analysis Quote for Your London Project to secure your approval. We’re ready to help you optimize your site for maximum density and safety today.

    Frequently Asked Questions

    When is a Swept Path Analysis required for a London project?

    A swept path analysis london is required whenever a development alters access to the public highway or introduces internal layouts where maneuvering space is restricted. Common triggers include the creation of new junctions, the inclusion of cul-de-sacs, or the need to accommodate large service vehicles. Planning officers use these simulations to verify that refuse trucks and fire tenders can navigate the site safely without causing congestion or safety hazards for other road users.

    Can I use a standard car template for my planning application?

    Using a standard car template is rarely sufficient for London planning applications. While car parking maneuvers are important, most boroughs prioritize the movement of larger vehicles like the 11.4m refuse collection vehicle or fire appliances. Your application must prove that the largest anticipated vehicle can enter and exit the site in a forward gear. Relying solely on car templates often leads to a holding objection from the local highway authority.

    How much does a Swept Path Analysis cost in London?

    The cost of technical modeling depends on the specific complexity of your development and the number of vehicle maneuvers required. Factors such as the number of access points, the variety of vehicle templates, and the scale of the site layout will influence the final fee. We recommend requesting a bespoke quote to ensure the analysis covers all borough-specific requirements. This approach prevents the financial risk associated with redesigns after a planning refusal.

    What vehicle templates do London Boroughs usually require?

    London boroughs maintain diverse fleet specifications, but the 11.4m Refuse Collection Vehicle (RCV) remains the most common benchmark. Fire tenders, typically modeled at 11.2m, are also a mandatory requirement for residential schemes. Some areas, like Westminster, utilize smaller 8.3m vehicles, while others may require testing against 12.2m trucks. We always verify the current fleet dimensions for the specific borough to ensure your swept path analysis london is technically accurate.

    Do I need a Swept Path Analysis for a private driveway?

    A swept path analysis london isn’t always required for a single private driveway. However, it becomes a necessity if the driveway serves multiple dwellings or connects to a strategic road network managed by TfL. If there is any doubt about a vehicle’s ability to turn within the site or exit in a forward gear, the Highway Officer will likely request technical proof. Providing this data early prevents delays during the consultation period.

    How long does it take to produce a Swept Path Analysis report?

    Production timelines vary based on the quality of the provided CAD site plans and the complexity of the maneuvers. Once we receive accurate digital drawings, a standard technical report can often be produced within a few business days. We understand the urgency of planning deadlines and maintain a responsive service to help you meet critical submission dates. Having all technical data ready prevents the 24-week delays caused by insufficient access evidence.

    What software is used for Swept Path Analysis in 2026?

    AutoTurn remains the industry standard software for swept path analysis in 2026. This software allows engineers to perform high-precision digital modeling within a CAD environment. By integrating OS MasterMap data, we ensure that vehicle simulations are grounded in the physical reality of the London streetscape. These advanced tools provide the live animations and technical appendices that planning committees now expect for all significant residential and commercial development proposals.

    Can an architect produce a Swept Path Analysis, or do I need an engineer?

    While some architects utilize basic tracking tools, a specialist traffic engineer is recommended for formal planning submissions. Traffic engineers possess a deeper understanding of the intricate regional regulations and the specific technical parameters required by highway authorities. A professional engineer ensures that the simulation accounts for steering rates and wheelbase pivot points accurately. This specialized expertise reduces project risk and provides the technical authority needed to overcome potential objections from council officers.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Swept Path Analysis for Planning Applications: The 2026 Developer’s Guide

    Swept Path Analysis for Planning Applications: The 2026 Developer’s Guide

    Did you know that human error contributed to 88% of road collisions in Great Britain according to recent data? This single statistic is driving Local Highway Authorities to demand unprecedented technical precision in 2026. For developers, a simple site layout is no longer enough to win approval. You’ve likely faced the frustration of a planning refusal because a council officer deemed your refuse vehicle tracking unworkable or non-compliant with the latest fire safety standards. It’s a common pain point that leads to expensive, late-stage design revisions and missed project deadlines.

    Securing a successful outcome requires a proactive approach to swept path analysis for planning applications. We understand the pressure of meeting the September 30, 2026, amendments to Approved Document B while balancing local council preferences for bin lorry dimensions. This guide provides the technical clarity you need to master vehicle tracking and avoid site design errors. You’ll learn how to utilize the latest AutoTURN Pro 2026 modeling to confirm access for fire tenders and heavy goods vehicles. We will walk you through the essential steps to produce planning-ready drawings that ensure smooth communication with the Highway Authority from inception to completion.

    Key Takeaways

    • Understand why swept path analysis for planning applications is the essential technical simulation required by Highway Authorities to prove vehicle maneuverability.
    • Identify the critical vehicle templates, such as refuse collection vehicles and fire tenders, that must be modeled to meet current safety and access regulations.
    • Discover how to use vehicle tracking as a proactive design tool to maximize developable site area while eliminating unworkable layouts and “dead zones.”
    • Learn the strategic advantage of submitting technical drawings at the pre-application stage to resolve potential objections before they lead to a formal refusal.
    • Ensure your technical reports meet the specific precision standards and formatting expected by planning officers to streamline the approval process.

    What is Swept Path Analysis for Planning Applications?

    Swept Path Analysis (SPA) is a computer-aided simulation that models the physical space a vehicle requires to complete a turn or maneuver. In the UK planning system, officers often use the term “Vehicle Tracking” interchangeably with SPA. This process moves beyond static road measurements to provide a dynamic view of how vehicles interact with your site layout. While a road may meet a standard width on paper, it doesn’t account for the “outswing” of a 16.5m articulated HGV or the specific turning radius of a local refuse truck. Relying on generic manual measurements is a risk that often leads to planning refusal.

    A professional swept path analysis for planning applications serves as the technical evidence required to support a Transport Statement or a more detailed Transport Assessment. It provides empirical proof that a site design is physically viable. Without this data, a Highway Authority has no guarantee that service vehicles won’t mount kerbs or become stuck, which typically results in immediate objections from the council.

    The Technology Behind the Analysis

    Precision is the non-negotiable standard for any modern development. We utilize AutoTURN software, which is the industry benchmark for simulating vehicle movements across the UK. By integrating digital vehicle models directly into your CAD site drawings, we achieve millimetre precision. This process requires more than just software; it demands a foundation of accurate Ordnance Survey (OS) mapping to account for existing kerb lines and boundaries. Historically, the evolution of vehicle swept path analysis software has moved from manual overlays to these sophisticated digital twins, allowing us to predict real-world outcomes before a single brick is laid.

    Why Local Authorities Demand SPA

    Local Highway Authorities across England have significantly increased their technical requirements in 2026. Their primary goal is maintaining highway safety and preventing vehicles from mounting pavements, which poses a direct risk to pedestrians. Officers use SPA to verify that your development layout doesn’t impede the flow of existing traffic or cause local congestion. Beyond general traffic, you must meet strict statutory requirements for emergency and service vehicle access. Key requirements include:

    • Emergency Access: Ensuring a fire tender can reach within 45m of all points of a dwelling.
    • Refuse Collection: Proving a 12m bin lorry can enter, turn, and exit the site in a forward gear.
    • Pedestrian Safety: Demonstrating that large vehicles can navigate corners without encroaching on footways.

    If a site layout cannot accommodate the turning circle of these critical vehicles, planning officers will view the scheme as unworkable and unsafe.

    Key Vehicle Templates: From Refuse Trucks to Fire Tenders

    Selecting the correct vehicle profile is the foundation of a robust technical submission. In the context of swept path analysis for planning applications, we focus on “critical vehicles.” These are the largest vehicles expected to visit your site regularly. If your layout accommodates the largest possible vehicle, it’s mathematically certain that smaller cars and vans will also navigate the space safely. We prioritize modeling the worst-case scenario to eliminate any doubt from the Highway Authority’s assessment.

    Many developers make the mistake of using generic vehicle templates found in basic software libraries. This is a high-risk strategy. Local councils across England have specific preferences for refuse collection vehicle (RCV) dimensions, and using a template that is even 20cm too short can lead to a planning refusal. We select the correct vehicle profile based on your specific site location, cross-referencing local authority guidance to ensure the simulation reflects the actual fleet used by the council. For more technical details on these specifications, you can explore our practical guide for planning applications.

    Emergency Vehicle Access Requirements

    Fire safety regulations are non-negotiable and often dictate the entire entrance design of a residential development. Most UK authorities require a standard 11.2m fire tender to be modeled. This analysis isn’t just about the turn; it’s about the pump-to-hydrant reach and ensuring the appliance can position itself within 45m of all points within a dwelling. The standard turning circle of a UK fire tender is 16.8 metres. Official resources like the NYC Street Design Manual highlight how these geometric requirements are a global standard for ensuring life safety in urban environments. We model these maneuvers to prove that emergency services can operate without restriction on your site.

    Refuse and Service Vehicle Maneuvers

    Waste management requirements have become more stringent in 2026. We’ve seen a significant shift toward larger 3-axle and 4-axle RCVs as councils aim for higher collection efficiency. A key requirement for planning approval is the “forward gear” rule. Planning officers almost always insist that a bin lorry can enter, turn, and exit the site in a forward gear. This often necessitates a three-point turn within the site boundaries. For mixed-use developments, we also track delivery vans to ensure that loading bays are accessible without blocking the main highway. Our swept path analysis for planning applications provides the visual proof that these essential services won’t cause gridlock or safety hazards.

    Optimising Site Layouts and Access Feasibility

    Balancing parking density with efficient vehicle circulation is a constant challenge for modern developments. We look beyond simple road widths to analyze how visibility splays and turning envelopes interact. It’s vital to ensure that a vehicle’s path doesn’t conflict with pedestrian crossings or site boundaries. When these elements are synchronized, the resulting layout is inherently safer and more likely to receive a positive recommendation from the local Highway Authority. We don’t just provide drawings; we provide the technical confidence that your site works in the real world.

    Urban developments often face significant constraints, such as narrow entrances or historic building lines that cannot be moved. In these high-stakes environments, we use vehicle tracking to prove that site access is feasible even with limited space. We frequently specify “overrun” areas or mounting-strips in modern highway design. These features allow larger vehicles to navigate tight corners while maintaining a narrower road profile for standard traffic. We also demonstrate that two vehicles, such as a car and a van, can safely pass at critical junctions. This prevents potential bottlenecks that would otherwise lead to a planning objection or a “Reason for Refusal.”

    Integrating SPA into the Architectural Workflow

    The most successful projects involve a continuous iteration loop between transport engineers and architects. We work alongside your design team to identify potential flaws before they reach the planning committee. This collaborative approach prevents costly revisions late in the project lifecycle. By integrating our Swept Path Analysis services early, you ensure your architectural vision is grounded in physical reality. We provide the technical evidence to defend your design against scrutiny. This confirms that fire tenders and refuse trucks can operate seamlessly within the proposed layout from the first day of occupation.

    Using swept path analysis for planning applications throughout the project lifecycle provides a significant regulatory advantage. Technical evidence is most effective when used as a proactive communication tool rather than a reactive fix. By integrating vehicle tracking at the earliest stages, you demonstrate to planning officers that your development is grounded in physical reality. This technical transparency builds trust with the Highway Authority and can significantly shorten the determination period for complex sites.

    If a project has previously faced a “Reason for Refusal” based on unworkable layouts or safety concerns, SPA is your most powerful tool for resubmission. It provides the empirical data needed to overturn subjective objections. This technical proof is also a prerequisite for Section 278 (S278) agreements. When your project requires modifications to the existing public highway, the council will demand precise tracking to ensure the new road geometry accommodates standard service vehicles without compromising safety.

    The Pre-Application Phase

    The pre-application stage is the ideal time to open a technical dialogue with the Highway Authority. Presenting professional vehicle tracking early allows you to secure “in principle” support for ambitious access designs. This strategy identifies potential “showstoppers” before you invest in full architectural plans. By addressing the concerns of statutory consultees early, you reduce the risk of a late-stage objection that could derail your entire application. Our experts use this phase to negotiate specific vehicle dimensions, ensuring the final submission aligns perfectly with local requirements.

    Discharging Reserved Matters and Conditions

    Securing outline planning permission is often just the first step. Local authorities frequently attach transport-related conditions that must be discharged before construction begins. We provide the granular detail required for these submissions, often focusing on specific concerns such as construction traffic management or delivery vehicle routing. It’s essential that the final build matches the approved tracking paths exactly. Discrepancies between the approved SPA and the finished site can lead to enforcement action or delays in site adoption. We ensure your technical drawings are robust enough to withstand this scrutiny from inception to completion.

    To ensure your project moves through the planning system without technical delays, contact us to discuss our fully-managed swept path analysis services.

    Swept Path Analysis for Planning Applications: The 2026 Developer’s Guide

    Professional Technical Analysis with ML Traffic Engineers

    ML Traffic Engineers UK brings over a decade of specialized experience to your development team. Founded in 2014, we prioritize precision and regulatory compliance in every report we produce. Our technical team understands that a minor error in vehicle tracking can lead to a major delay in your project timeline. We provide a “ready-to-submit” drawing format that planning officers prefer, which significantly reduces the need for clarification requests. Our expertise spans both London-specific requirements (TfL) and national highway standards across England. We maintain rapid turnaround times because we understand the fast-moving, unpredictable nature of infrastructure maintenance and emergency works; for those requiring safety verification of lifting machinery in these sectors, visit Pulo Compliance Ltd.

    Generalist architectural services often lack the specialized software and regulatory depth required for complex swept path analysis for planning applications. We act as a dependable partner that understands intricate regional regulations so you don’t have to. Our engineers engage in direct communication with Highway Authorities to resolve technical disputes before they escalate. This specialized focus allows us to defend your site layout with technical authority and professional integrity. Beyond vehicle tracking, we offer an all-encompassing, fully-managed service that includes Parking Surveys, Transport Assessments, and Travel Plans. This comprehensive support reduces the logistical pressure on your team from project inception to completion.

    Next Steps for Your Planning Application

    Getting started is a straightforward process designed for efficiency and clarity. To request a quote, we typically require your current site plans in CAD format and a list of the specific vehicle types the council has requested. If you aren’t sure which vehicle templates are required, we advise you based on our extensive database of local authority preferences and the latest 2026 standards. Our consultation process moves logically from an initial review of your layout to the delivery of final, signed-off drawings. We identify potential design flaws early and suggest refinements to ensure your submission is robust.

    We take immense pride in our adherence to industry benchmarks and legislative requirements. Our role is to act as a vital guardian of public safety while ensuring your project remains commercially viable. We are ready to support your application with the technical evidence needed to secure approval and avoid costly site design errors. Contact ML Traffic Engineers UK for a Swept Path Analysis quote today to keep your development on schedule and ensure your site is planning-ready.

    Secure Your Planning Approval with Technical Precision

    Mastering the technical requirements of vehicle tracking is the most reliable way to avoid costly site design errors and planning deadlock. We’ve demonstrated that swept path analysis for planning applications is no longer just a reactive compliance document. It’s a vital tool for maximizing developable land while ensuring public safety. By utilizing advanced AutoTURN precision modeling, you can transform your site layout into a technical drawing that satisfies the strictest Highway Authority requirements.

    Founded in 2014, ML Traffic Engineers UK provides UK-wide planning expertise to help you navigate intricate regional regulations. Our team manages full project lifecycles to ensure your fire tender and refuse truck access paths are indisputable. We reduce the logistical and regulatory pressures on your team so you can focus on the build. Don’t let unworkable layouts or “dead zones” delay your project milestones.

    Get a Professional Swept Path Analysis for Your Project and ensure your development is ready for a successful submission.

    Frequently Asked Questions

    What is the average cost of a swept path analysis for a planning application?

    Costs vary significantly based on the complexity of your project and the number of vehicle profiles required by the council. A single-access residential site requires less modeling than a large-scale logistics hub with multiple HGV loading bays. Getting a tailored quote ensures you only pay for the specific vehicle tracking your local authority demands. This targeted approach prevents overspending on unnecessary simulations while ensuring every statutory requirement is met for your submission.

    Which software is best for swept path analysis in the UK?

    AutoTURN is the industry standard for performing swept path analysis for planning applications across the UK. It provides an extensive library of vehicle templates that align with national standards and specific council fleet dimensions. Most Local Highway Authorities prefer results from this software because it integrates directly with CAD drawings for millimeter precision. Using this recognized platform ensures your technical drawings meet the professional standards expected by planning officers and statutory consultees.

    Does every planning application require vehicle tracking?

    No, vehicle tracking isn’t a universal requirement for every project. It’s typically mandatory for developments that introduce new access points, change internal road layouts, or increase service vehicle demand. Small internal renovations usually don’t need it. However, if your project involves a new residential block or commercial unit, the council will likely request technical proof that fire tenders and refuse trucks can navigate the site safely and exit in a forward gear.

    What happens if my site layout fails the swept path analysis?

    A failed simulation is an opportunity to optimize your design before it reaches the planning committee. If the tracking shows a vehicle hitting a boundary or mounting a kerb, we collaborate with your architects to refine the geometry. This might involve widening a junction, repositioning parking bays, or implementing overrun areas. Identifying these “dead zones” early prevents a formal planning refusal and ensures your final site layout is physically workable.

    Can I do my own swept path analysis using standard CAD tools?

    Performing an accurate analysis is difficult without specialized software and traffic engineering expertise. Standard CAD tools lack the dynamic libraries needed to account for complex vehicle outswing and steering characteristics. Planning officers look for specific professional formatting and technical certification in the reports they review. Submitting an amateur drawing often leads to immediate rejection or technical objections, which can significantly delay your project determination and increase your overall revision costs.

    How long does it take to produce a professional SPA drawing?

    Most professional technical drawings are produced within a few business days once we receive your CAD site plans. The exact timeline depends on the number of maneuvers and vehicle types requested by the Highway Authority. For complex, multi-phase developments, the process may take slightly longer to ensure every junction is thoroughly tested. We prioritize efficient turnaround times to help you meet tight submission deadlines and keep your development project on schedule.

    What vehicle types are most commonly requested by UK councils?

    UK councils most frequently demand tracking for 11.2m fire tenders and 12m refuse collection vehicles. For commercial sites, 16.5m articulated HGVs are the standard for logistics hubs, while 10m rigid trucks are common for retail deliveries. We also model standard 4.8m cars to verify parking bay accessibility. Ensuring your site layout accommodates these specific templates is essential for proving that essential services can operate safely without obstructing the existing public highway.

    Is swept path analysis required for residential driveways?

    Swept path analysis is rarely necessary for a single private driveway. However, it’s often required for shared driveways serving multiple dwellings or sites with narrow access onto busy roads. In these scenarios, the Highway Authority requires proof that a car can turn within the site to enter and exit the highway in a forward gear. This prevents dangerous reversing maneuvers onto the main road, which is a critical factor in maintaining local highway safety.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Swept Path Analysis Quote London: A 2026 Developer’s Guide to Costs and Requirements

    Swept Path Analysis Quote London: A 2026 Developer’s Guide to Costs and Requirements

    Did you know that 42% of minor development applications across London boroughs face immediate delays at the validation stage simply because of insufficient highway data? It’s a frustrating bottleneck that stalls projects before they even begin. If you’re navigating the complexities of site access, securing a precise swept path analysis quote London councils will actually accept is your first line of defense against these setbacks. We understand that the pressure to provide technical drawings that meet the latest 2026 standards, such as AutoTURN 2026 modeling, can feel overwhelming when you’re managing tight project timelines.

    You’ve likely dealt with the confusion of whether a specific borough requires a standard pump fire tender or a 64m turntable ladder template for your site. This guide simplifies that process. You’ll learn how to obtain a fast, fixed-fee quote while ensuring your technical drawings pass scrutiny the first time. We’ll examine the specific requirements for the London Fire Brigade, including the 3.7 meter minimum road width, and explain why digital modeling has replaced manual templates as the non-negotiable standard for planning approval in 2026.

    Key Takeaways

    • Identify why high-precision digital simulations are now the mandatory standard for proving vehicle maneuverability to all 32 London boroughs.
    • Learn how site complexity and specific vehicle templates, like 12-metre refuse lorries, directly impact your swept path analysis quote London for a 2026 application.
    • Understand the technical role of AutoTurn software in modeling “vehicle envelopes” to account for body overhang and wheel paths with absolute precision.
    • Discover the critical differences between London Fire Brigade standards and individual borough requirements for refuse collection to prevent validation failures.
    • Access professional guidance on securing a fast, fixed-fee quote and expert-led technical drawings that prioritize both safety and planning approval.

    What is Swept Path Analysis and Why is it Mandatory in London?

    Swept Path Analysis (SPA) is a technical computer-aided simulation that maps the exact footprint of a vehicle as it maneuvers through a specific layout. By utilizing advanced AutoTurn Software, we calculate the precise path of the vehicle’s body, wheels, and outer chassis overhang. This digital modeling ensures that your proposed site can accommodate the physical realities of vehicle movement without striking kerbs, buildings, or other infrastructure. Securing a reliable swept path analysis quote London developers can trust is now a standard requirement for almost every planning application across the capital.

    To better understand the mechanics of how these simulations work in a real-world engineering context, watch this helpful video:

    In high-density boroughs like Westminster, Tower Hamlets, or Camden, space is a finite resource. Planning officers don’t just look at whether a car can park; they prioritize the “worst-case” vehicle scenarios. A common misconception among developers is that standard passenger vehicle access is sufficient for approval. In reality, London councils focus almost exclusively on fire tenders and refuse lorries. If your site plan doesn’t demonstrate that a 12-metre bin lorry can enter and exit in forward gear, your application will likely fail at the first hurdle. High-precision digital modeling is now the non-negotiable benchmark for all 32 London boroughs in 2026.

    The Consequences of Skipping Professional Vehicle Tracking

    Failing to include professional vehicle tracking often leads to an immediate rejection by the Local Highway Authority. This isn’t just a paperwork issue; it’s a safety and functional necessity. Without SPA, you risk costly late-stage redesigns. Imagine completing a courtyard only to discover a London Fire Brigade pump cannot reach the building because the turning circle is too tight. Furthermore, improper planning leads to “overrun” where heavy vehicles mount pedestrian footways, creating significant safety hazards and potential legal liabilities for the developer.

    The Role of SPA in London Transport Statements

    SPA serves as the technical backbone of a Transport Statement London councils require for minor and major developments. By integrating vehicle tracking into your site access strategy, ML Traffic Engineers UK provides the empirical proof needed to justify tighter turning circles or reduced parking allocations. We use these simulations to show that even restricted urban sites can function safely. When you request a swept path analysis quote London experts provide, you’re investing in a planning solution that proactively addresses council concerns before they become formal objections.

    Calculating Your Swept Path Analysis Quote: Factors That Influence Cost

    Calculating a swept path analysis quote London developers can rely on requires a clear understanding of your site’s physical constraints. No two projects are identical. A simple residential driveway check differs significantly from a large-scale commercial distribution hub. Several technical variables consistently drive the consultancy fee. Site complexity is the primary factor. If we’re assessing a single access point from a public highway, the simulation is straightforward. However, projects involving multiple internal junctions or shared surfaces require more engineering time to ensure every corner meets the safety standards that are now mandatory in London planning applications.

    Timeline and urgency play a final role in the quote. We maintain a constant sense of readiness to meet tight deadlines, but “24-hour turnaround” requests usually carry a premium. This accounts for the immediate reallocation of technical resources to ensure your drawings are ready for submission. If you need to understand the technical nuances before requesting a price, you can learn more about our technical approach here.

    What Information You Need to Provide for a Fast Quote

    To receive an accurate swept path analysis quote London consultancies can provide quickly, you should follow three steps. First, provide your site layout in a scaled DWG format. This allows for immediate integration into our modeling software. Second, identify the “critical” vehicles required by your specific borough. If you aren’t sure, we can advise on whether you need a standard bin lorry or a specialist emergency vehicle. Third, specify the necessary maneuvers. Most councils want to see entry, exit, and any three-point turns or hammerhead maneuvers required within the site boundary. Providing this data upfront ensures a fast, precise response.

    Fixed-Fee vs. Hourly Rates in London Consultancies

    We recommend choosing fixed-fee quotes for better budget certainty. Hourly rates often lead to “scope creep,” where minor adjustments result in unexpected costs that can stall your project. A standard fixed-fee quote from a professional firm usually includes the technical report, the CAD drawings, and at least one round of revisions. This transparent approach helps you manage your transport planning budget without hidden charges. For a tailored assessment of your project, you can reach out to our team at mltraffic.co.uk to discuss your specific site requirements and secure a dependable quote.

    Technical Precision: Using AutoTurn Software for Planning Approval

    When you request a swept path analysis quote London planning departments will respect, the technical tools behind the drawings are just as critical as the engineer’s experience. ML Traffic Engineers UK utilizes AutoTurn 2026, the global industry standard for simulating vehicle maneuvers. This software is not merely a drawing aid; it’s a high-precision validation engine that accounts for complex steering geometry and vehicle dynamics. London councils expect this level of digital modeling because it eliminates the guesswork associated with tight urban sites. It provides a level of certainty that manual templates simply cannot match, especially when every millimetre of pavement counts.

    A primary advantage of digital simulation is the ability to model “vehicle envelopes” with absolute accuracy. We don’t just track the wheels; we account for the body overhang at the front and rear of the vehicle. This is vital in London, where street furniture, historic building corners, and narrow kerb alignments create constant obstacles. Our simulations also incorporate real-world variables like kerb heights and gradients. By testing these conditions digitally, we reduce the need for expensive and logistically difficult physical trial runs on-site. This proactive approach ensures your site layout is functional before a single brick is laid.

    Visualising the Swept Path Envelope

    Your SPA report will clearly distinguish between the “chassis” lines, which show where the wheels travel, and the “body” lines, which indicate where the outer edges of the vehicle swing. London Highway Officers look for specific clearance margins between these lines and the site boundaries to ensure safety. The swept envelope is the total area a vehicle occupies during a turn. We include these margins to prove that even the largest permitted vehicles can navigate your site without risking structural damage or pedestrian safety.

    Integrating SPA into Your Highway Design

    Precision modeling is essential for successful Highway Design S278 & S38 submissions. ML Traffic Engineers UK integrates vehicle tracking directly into your AutoCAD drawings to validate the placement of loading bays, car park entrances, and refuse collection points. This spatial accuracy confirms that your infrastructure can handle the intended traffic volume and vehicle types. If you’re preparing a submission, you can explore our practical guide to AutoTurn modeling to see how we refine these technical details for council approval.

    Swept Path Analysis Quote London: A 2026 Developer’s Guide to Costs and Requirements

    Securing a swept path analysis quote London developers can move forward with requires more than just technical software; it demands an intimate knowledge of borough-specific fleet dimensions. While generic UK templates exist, London’s 32 boroughs often utilize bespoke vehicle configurations that catch unprepared developers off guard. For example, the refuse collection vehicle (RCV) dimensions required for a planning application in Hackney may differ from those in Bromley due to varying local fleet contracts. We maintain an updated database of these local requirements to ensure your drawings reflect the exact vehicle your local council operates.

    Developments located on or near the Strategic Road Network (SRN) face additional scrutiny from Transport for London (TfL). In these cases, your simulation must prove that servicing vehicles, such as a 10.7m rigid lorry, can enter and exit the site without disrupting the flow of red routes or high-traffic corridors. We provide the technical proof required for Servicing and Delivery Plans, ensuring that your commercial units remain functional and compliant with TfL’s stringent safety standards. If you need to verify your site’s viability against these complex regulations, you can explore our full range of swept path analysis services to see how we manage these regional intricacies.

    Standard London Vehicle Templates

    The most common hurdle in London planning is the 11.2m or 12m refuse collection vehicle. Councils prioritize these “worst-case” scenarios to prevent waste collection teams from blocking narrow residential streets. For residential basement parking, we typically model an 8.0m “large car” or van template to ensure ramp gradients and tight corners are navigable. During the construction phase, central London boroughs often require simulations for abnormal loads, proving that heavy machinery can reach the site without damaging historic infrastructure or street furniture.

    Addressing the “Fire Tender Access” Objection

    London Fire Brigade (LFB) standards are non-negotiable. You must prove that a fire appliance can reach within 45m of all points within a building. The LFB requires a minimum road width of 3.7m between kerbs and a gateway width of at least 3.2m. For dead-end roads longer than 20m, you must provide a turning facility, such as a hammerhead or turning circle. We use high-precision modeling to justify reversing distances that might exceed the standard 20m guidance, provided the safety case is robust. Integrating these findings into a Construction Logistics Plan is essential for projects with restricted access. When you request a swept path analysis quote London experts provide, you ensure that these safety critical dimensions are baked into your design from day one.

    Secure Your Planning Approval with ML Traffic Engineers UK

    Timing is critical in the high-stakes environment of London property development. Our team maintains a constant state of readiness to provide a swept path analysis quote London professionals can rely on to keep their projects moving forward. We commit to a 24 to 48 hour turnaround for all initial quotes, reflecting the urgency that modern infrastructure projects demand. This rapid response capability is a hallmark of our service, ensuring that technical requirements never become a bottleneck for your planning submission. We prioritize clarity and precision to reduce the regulatory pressures on your team.

    Our expertise extends across all 32 London boroughs and the City of London. This comprehensive geographic coverage means ML Traffic Engineers UK already understands the specific preferences of local highway officers, whether they require bespoke refuse vehicle dimensions or strict adherence to fire tender access routes. We don’t just provide drawings; we deliver planning solutions. By integrating our vehicle tracking simulations seamlessly with your Transport Assessment or Transport Statement, we create a unified technical case that supports your site’s feasibility from the outset. This holistic approach ensures that all transport-related elements of your application are technically sound and ready for scrutiny.

    Why Developers Choose ML Traffic Engineers UK

    Developers frequently partner with us because of our proven track record in overcoming difficult access objections. We take immense pride in our precision and adherence to industry standards, positioning ourselves as a vital guardian of site safety and public welfare. Unlike larger consultancies, we provide direct communication with our engineers. This ensures that technical progress is never blocked by administrative layers or account managers who lack specialized knowledge. We also offer competitive, transparent pricing for projects of all sizes, from small residential infills to complex industrial units. Our goal is to provide a tailored service that reflects the unique constraints of your specific site.

    Get Your Fixed-Fee Quote Today

    Securing your planning-ready drawings starts with a simple assessment of your site layout. Upload your plans via our contact form for a same-day response from our technical team. When you submit your inquiry, please mention your specific borough so we can provide a tailored vehicle template assessment immediately. This allows us to align our modeling with local requirements right from the start. You can also Request a Swept Path Analysis Quote through our dedicated resource page. We are ready to help you manage the intricate regional regulations and secure the approval your project needs to succeed.

    Secure Your Site Access and Planning Certainty

    Achieving planning approval in 2026 requires technical precision and a deep understanding of borough-specific vehicle requirements. You’ve seen how digital simulations using AutoTurn software eliminate the guesswork that often leads to validation delays. By prioritizing accurate modeling for fire tenders and refuse vehicles, you proactively address the safety and accessibility concerns of local highway officers. Securing a professional swept path analysis quote London developers can trust ensures your site layout is validated against statutory requirements before submission.

    Since 2014, ML Traffic Engineers has provided over a decade of specialized London planning expertise. We are specialists in AutoTurn vehicle tracking and maintain an intricate understanding of LFB and TfL statutory requirements. Get a Fixed-Fee Swept Path Analysis Quote for Your London Project to secure expert-led drawings that pass scrutiny the first time. Our team is ready to provide the technical certainty your project deserves, helping you navigate complex regional regulations with confidence and efficiency. We look forward to supporting your next successful development.

    Frequently Asked Questions

    How much does a Swept Path Analysis quote in London typically cost?

    The price for a swept path analysis quote London developers receive depends on the technical complexity of the site and the total number of vehicle maneuvers required. Factors such as the availability of scaled CAD drawings and the urgency of your planning deadline also influence the final fee. We provide fixed-fee quotes to ensure budget certainty, covering the full technical report and the necessary revisions to meet borough standards.

    What vehicles do I need to include in my Swept Path Analysis?

    How long does it take to receive the completed SPA drawings?

    You can expect to receive completed technical drawings within 2 to 5 working days for standard projects. We understand the urgency of planning deadlines and offer accelerated turnarounds of 24 to 48 hours for time-sensitive applications. Providing your site layout in a scaled DWG format significantly speeds up the modeling process, allowing our engineers to integrate the data into AutoTurn software immediately for rapid delivery.

    Will the council accept a Swept Path Analysis if I do it myself?

    Planning departments generally reject self-produced drawings because they lack the precision of industry-standard software like AutoTurn. Research indicates that 92% of self-written transport reports face delays or rejection due to technical omissions. Councils require professional engineering validation to ensure public safety and highway functionality. Investing in a professional swept path analysis quote London experts provide ensures your submission meets the rigorous digital modeling standards expected in 2026.

    What is the difference between a Swept Path Analysis and a Transport Statement?

    A Swept Path Analysis is a specific technical simulation showing vehicle movement, while a Transport Statement is a broader planning document. The SPA provides the empirical proof of accessibility that supports the arguments made within the Transport Statement. While the statement explains the overall impact of the development, the vehicle tracking drawings offer the visual and mathematical evidence that the site layout is physically viable for heavy vehicles.

    Do I need a Swept Path Analysis for a dropped kerb application in London?

    Many London boroughs now require a technical simulation for dropped kerb applications, especially in areas with restricted space or high pedestrian activity. You must demonstrate that a vehicle can safely enter and exit the driveway in a single maneuver without mounting the footway or endangering other road users. This technical proof is essential for the Local Highway Authority to approve any modification of the public footway and kerb alignment.

    Can Swept Path Analysis be done in 3D?

    3D modeling is essential for projects involving basement access, multi-story car parks, or sites with significant gradients. This analysis checks for vertical clearance to ensure vehicle roofs or chassis don’t strike low ceilings or steep ramps. While 2D analysis covers the horizontal footprint, 3D simulations provide a comprehensive safety check for the entire vehicle volume. This is a common requirement for complex urban infill developments across Central London.

    What happens if the Swept Path Analysis shows a vehicle cannot make the turn?

    If the simulation identifies a conflict, it serves as an early warning to redesign the site layout before submitting your application. We don’t just provide drawings; we offer expert advice on mitigation measures, such as widening access points or adjusting kerb alignments. This proactive approach prevents costly late-stage redesigns and ensures your final submission demonstrates a functional, safe, and policy-compliant development that is ready for council approval.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

Powered by CookieAdmin
