  • Vehicle Access Visibility Splays: The Developer’s 2026 Guide to Planning Success

    Vehicle Access Visibility Splays: The Developer’s 2026 Guide to Planning Success

    A single miscalculation in your vehicle access visibility splays can render a high-value development site undevelopable before the first brick is even laid. You likely recognize that securing Highway Authority approval remains one of the most significant risks to your project timeline. The constant tension between maximizing developable area and meeting uncompromising safety standards often leads to costly design errors and planning delays.

    This guide empowers you to master the technical requirements of X and Y distances, ensuring your site access meets the latest UK safety standards and secures planning approval without friction. We provide the professional precision necessary to navigate the complex transition between Manual for Streets and DMRB requirements. By integrating rigorous data collection early in the design phase, you can mitigate the risk of ‘unsafe access’ objections that frequently stall major applications.

    We examine the 2026 regulatory updates, the vital role of 85th percentile speed surveys in determining splay dimensions, and strategic solutions for boundary issues where sightlines cross third-party land. This technical overview ensures your project remains compliant, safe, and ready for execution.

    Key Takeaways

    • Understand how vehicle access visibility splays function as the primary safety mechanism for site access, protecting both emerging and passing motorists.
    • Master the technical application of X and Y distances to ensure your junction geometry meets precise Highway Authority stopping sight distance requirements.
    • Determine the correct regulatory framework for your site by distinguishing between Manual for Streets (MfS) and DMRB standards based on local road speeds.
    • Learn to identify and mitigate common sightline obstructions, such as boundary walls and vegetation, while adhering to strict vertical visibility limits.
    • Streamline your planning application by integrating visibility analysis with Swept Path Analysis for a comprehensive, submission-ready Transport Statement.

    What Are Vehicle Access Visibility Splays and Why Are They Critical?

    Vehicle access visibility splays represent the physical area at a junction where sightlines must remain entirely unobstructed to ensure safe movement between a side road and a major road. Unlike a simple 2D drawing, a splay is a three-dimensional envelope of visibility. It ensures that any driver positioned at the junction has a clear, unhindered view of approaching traffic. Precision in these calculations is mandatory. Highway Authorities treat these splays as the primary gatekeepers of site viability, often prioritizing them over architectural aesthetics or unit density. A site with a ‘blind’ access point is often fundamentally undevelopable, as safety remains a non-negotiable requirement for planning approval.

    The safety benefit is strictly two-way. While it is vital for the emerging driver to see oncoming traffic, it’s equally important for drivers on the major road to see vehicles preparing to join the flow. This mutual visibility allows for reactive braking and smoother traffic integration. Adhering to standard road junction design principles ensures that all road users, including cyclists and motorcyclists, are protected from high-speed collisions. In 2026, failing to demonstrate compliant vehicle access visibility splays in your initial application is a leading cause of immediate refusal. Visibility analysis is the cornerstone of a robust Transport Statement, providing the technical evidence needed to satisfy highway engineers.

    The Geometry of Safety: Side Road vs. Major Road

    Visualizing the splay as a triangle is the most effective way to understand your site entrance. The ‘X’ distance is your setback from the major road, while the ‘Y’ distance extends along the main carriageway. The speed of the major road dictates the entire design. Higher recorded speeds require longer ‘Y’ distances to account for vehicle stopping sight distances. In urban development projects, this geometry must also account for pedestrian visibility. Drivers must be able to see pedestrians on the footway before the vehicle crosses their path. We use actual speed data, rather than just posted limits, to ensure the triangle is both safe and realistic.

    Legal and Planning Status of the Splay

    Visibility splays must be maintained in perpetuity. The Highway Authority requires long-term control over this land to prevent future obstructions like overgrown hedges or new fences. If the required splay crosses land you don’t own, you must secure that land through legal agreements or demonstrate that it’s part of the public highway. We often manage these requirements through Section 278 agreements for off-site improvements. These visibility requirements typically appear as strict planning conditions. You’ll often find that you cannot begin work on-site until the access and its associated visibility splays are physically constructed and verified.

    Decoding the Dimensions: Understanding X and Y Distances

    Precision is the difference between a validated planning application and a costly refusal. When designing vehicle access visibility splays, we define the safety area using two primary coordinates: the X and Y distances. The X distance represents the setback from the edge of the major road to the driver’s eye. While 2.4 meters is the standard requirement for most junctions, this measurement is not arbitrary. It allows a driver to see the main road clearly without their vehicle protruding into the flow of traffic. The Y distance, or Stopping Sight Distance (SSD), is the length visible along the major road. This distance must be sufficient for a driver on the main road to see a hazard and come to a safe stop.

    Technical accuracy extends into the vertical plane. We must maintain a clear line of sight between a driver’s eye height, typically 1.05 meters, and an object height of 0.6 meters. This ensures that low-profile road users, such as children or cyclists, are not obscured by boundary treatments. Environmental factors also influence these calculations. Steep gradients or road surfaces prone to moisture can increase braking distances, requiring an extension of the Y distance to maintain safety margins. Following the Manual for Streets (MfS) guidance, we calculate these dimensions based on actual vehicle deceleration rates rather than theoretical ideals.

    When Can the X Distance Be Reduced?

    Reducing the X distance to 2.0 meters is sometimes permissible for lightly trafficked residential drives or in constrained urban environments. However, Highway Authorities often resist this ‘nose-out’ visibility because it forces the front of the vehicle to enter the major road before the driver has a full view. At ML Traffic, we justify these reductions by providing empirical evidence of low traffic volumes or by using Swept Path Analysis to prove that the maneuver remains safe. If you are struggling with a tight site boundary, commissioning professional Traffic Surveys can provide the specific data needed to defend a non-standard design.

    Calculating the Y Distance: The Speed Factor

    The Y distance is directly tethered to the 85th percentile speed of the major road. A 20mph zone typically requires an SSD of 25 meters, whereas a 30mph zone requires 43 meters. It is a common error to rely solely on the posted speed limit. Actual recorded speeds often exceed the limit, and Highway Authorities will demand visibility splays that reflect how the road is used in reality. We use 85th percentile speed data to ensure your design is robust enough to pass a formal safety review.

    MfS vs. DMRB: Selecting the Right Regulatory Standard

    Selecting the correct regulatory framework is a strategic decision that dictates the viability of your site layout. In the UK, we primarily work with two sets of guidance: Manual for Streets (MfS) and the Design Manual for Roads and Bridges (DMRB). MfS is the standard for most urban and residential environments where speeds are 37mph or lower. It prioritizes place-making and utilizes stopping sight distances based on actual vehicle deceleration. Conversely, the DMRB is a more rigid standard designed for trunk roads and high-speed rural routes.

    The ‘grey area’ typically occurs on the urban fringe where a 30mph limit transitions into a 60mph zone. Applying DMRB standards to an urban-edge site often results in excessively large vehicle access visibility splays. These over-engineered designs can consume valuable frontage, reduce your unit count, and ultimately kill site density. We specialize in navigating these transitions, using technical authority to argue for the more appropriate MfS standard when the character of the road supports it. Identifying the most appropriate standard early prevents logistical pressures and ensures your project meets safety benchmarks without sacrificing land.

    The Critical Role of Speed Surveys

    Relying on posted speed limits is a common mistake that leads to conservative, space-wasting designs. We recommend conducting 85th percentile speed surveys to determine the actual speed at which motorists travel past your site. If the 85th percentile speed is lower than the limit, we can often justify shorter Y distances, preserving more of your developable area. For example, on a recent project with restricted frontage, a speed survey proved that actual speeds were significantly lower than the 30mph limit. This allowed for a reduction in the required splay, saving multiple residential units that would have otherwise been lost to visibility requirements. Professional Traffic Surveys provide the empirical data required to challenge assumptions and maximize site potential.

    National vs. Local Highway Authority Variances

    While MfS and DMRB provide national frameworks, local Highway Officers often have their own specific interpretations. Some authorities are more flexible regarding ‘nose-out’ visibility, while others strictly adhere to their own internal design guides. Early pre-application engagement is essential to understand these local nuances before you finalize your site plan. This proactive approach is particularly vital when navigating London’s transport planning system, where high-density constraints require a more tailored technical justification for every meter of visibility. We manage these negotiations on your behalf, ensuring your design aligns with both national standards and local expectations.

    Managing Obstructions and Maintenance within the Splay

    The 0.6m rule is the fundamental benchmark for any object positioned within the visibility envelope. To maintain a clear line of sight between the driver’s eye height (1.05m) and the object height (0.6m), everything within the splay must remain below this 600mm threshold. Common pitfalls include boundary walls, decorative hedges, and seasonal vegetation that grows rapidly. Parked cars represent another significant concern. Highway Authorities will often require new parking restrictions if existing or proposed on-street parking blocks the vehicle access visibility splays.

    Not every object is a prohibited obstruction. Slim signposts, lighting columns, and clear-stemmed trees where the canopy starts above 2.0m are often permitted because they don’t significantly mask a vehicle. However, the cumulative effect of multiple ‘slim’ objects can still lead to a refusal if they create a visual screen. If your site layout is constrained, we can perform a detailed assessment to identify which existing features can be retained and which must be removed to satisfy safety requirements.

    Land Ownership and Control

    For a planning application to succeed, you must demonstrate that the required visibility splays are either within your site’s red-line boundary or on land that is already part of the public highway. If a splay crosses third-party land, you face a significant legal hurdle. You must either purchase that land or secure a legal agreement with the neighbor. In some cases, we utilize Grampian conditions. These are negatively worded planning conditions that prevent development from starting until the off-site visibility is secured. We often facilitate these arrangements through Section 106 or Section 278 agreements to ensure the Highway Authority has the legal right to maintain the sightlines in perpetuity.

    Designing for Longevity

    Maintaining vehicle access visibility splays isn’t just a requirement for the planning phase; it’s a permanent safety obligation. When designing your landscaping scheme, select low-growth species that naturally stay below 0.6m. This prevents future safety breaches caused by overgrown vegetation. As the developer, you remain liable for maintaining these sightlines until the road is formally adopted by the council. For complex projects involving new road infrastructure, our Highway Design S278 & S38 Guide provides deeper insight into the adoption process and long-term maintenance requirements.

    If you’re facing boundary disputes or need a technical justification for a potential obstruction, contact us today to discuss how our Transport Statements can resolve your planning bottlenecks and secure your site’s access.

    Vehicle Access Visibility Splays: The Developer’s 2026 Guide to Planning Success

    Integrating Visibility into Your Transport Statement

    A robust Transport Statement relies on the technical validation of vehicle access visibility splays. It isn’t enough to state that an access point is safe; we must prove it through rigorous data. Our workflow begins with precise site surveys to capture 85th percentile speeds, which then inform our CAD modeling. This transition from raw data to engineered drawings ensures the Highway Officer receives a submission that is technically sound and ready for approval on the first attempt. We present our findings in a logical, sequential format that mirrors the Highway Authority’s own review process, reducing the friction often found in planning negotiations.

    There is a critical synergy between visibility analysis and Swept Path Analysis. While visibility splays ensure drivers can see, Swept Path Analysis proves that vehicles can physically maneuver through the junction without overrunning footways or striking street furniture. We integrate these two disciplines to ensure your site entrance is both visible and navigable. Presenting these reports as a unified technical package demonstrates a comprehensive understanding of junction safety. This combined approach reduces the likelihood of supplementary information requests that can stall your project for weeks.

    Beyond the Drawing: The Technical Report

    The technical report goes beyond simple geometry. We use evidence-based engineering to justify deviations from standard guidance when site constraints make literal compliance impossible. This approach is especially critical when following our Transport Assessment London Guide, where high-density environments require creative but safe solutions. Our safety-critical designs are backed by professional indemnity insurance, providing developers with the assurance that their project’s technical foundation is legally and professionally robust. We don’t just provide drawings; we provide the engineering justification needed to win planning appeals.

    Next Steps for Your 2026 Planning Application

    Early-stage feasibility is the most effective way to protect your site’s value. We recommend checking vehicle access visibility splays before you finalize your site layout. Identifying a visibility constraint during the initial design phase allows for minor adjustments to building positions or frontage treatments. Waiting until the full application stage to discover an unsafe access point often results in expensive redesigns and lost units.

    To streamline your 2026 planning application, you should request a site-specific access review as early as possible. We provide a clear roadmap from initial assessment to final Highway Authority sign-off, managing the logistical and regulatory pressures so you don’t have to. By choosing a partner that understands the intricate relationship between safety standards and commercial site viability, you ensure your project moves forward with unwavering reliability and precision.

    Securing Site Viability Through Technical Precision

    Securing planning approval in 2026 requires more than a compliant drawing; it demands an evidence-based approach to highway safety. By mastering the geometric requirements of X and Y distances and selecting the appropriate regulatory standard, you protect your development from the risk of ‘unsafe access’ refusals. Integrating these vehicle access visibility splays with detailed data collection ensures your site maximizes its developable area while meeting the Highway Authority’s stringent benchmarks. We’ve explored how speed surveys and proactive obstruction management turn regulatory hurdles into manageable design elements.

    Our team acts as your dependable technical partner, offering specialized expertise in MfS and DMRB compliance alongside comprehensive Transport Planning support. We’re highly experienced in Section 278 negotiations, ensuring that off-site improvements are handled with professional integrity. Secure your site access approval with a professional visibility analysis from ML Traffic Engineers. We provide the rapid response and precision necessary to reduce logistical pressures and keep your project on schedule. Let’s ensure your site access is safe, compliant, and ready for construction.

    Frequently Asked Questions

    What is the standard X distance for a visibility splay in the UK?

    2.4 meters is the standard X distance for the vast majority of UK road junctions. This setback represents the distance from the edge of the major road to the driver’s eye, allowing for a clear view of approaching traffic without the vehicle protruding into the carriageway. In certain constrained urban settings with low traffic speeds, some Highway Authorities may permit a reduction to 2.0 meters, though this often requires a robust technical justification.

    Can a visibility splay go over a neighbour’s land?

    A visibility splay can cross third-party land, but you must demonstrate legal control over that area to ensure it remains unobstructed. The Highway Authority requires sightlines to be maintained in perpetuity, so you’ll typically need a formal easement, a land purchase, or a Grampian planning condition. If you cannot prove the land will be kept clear, the vehicle access visibility splays will be considered ‘unprotected’ and likely lead to a planning refusal.

    What height can objects be within a visibility splay?

    Objects within the splay must generally remain below a height of 0.6 meters above the ground. This threshold ensures a clear line of sight between a driver’s eye height, which is typically 1.05 meters, and lower-profile hazards or road users. While some slim items like lighting columns or signposts are often permitted, they must not cumulatively block the driver’s field of vision.

    Do I need a visibility splay for a private driveway?

    You do need a visibility splay for a private driveway if it creates a new access or intensifies an existing one onto the public highway. Safety standards apply to all access points to prevent collisions between emerging vehicles and passing traffic. Planning officers will scrutinize the access as part of your application to ensure it doesn’t compromise the safety of the road network.

    How do I calculate the Y distance for a 30mph road?

    The Y distance for a 30mph road is typically 43 meters when following Manual for Streets (MfS) guidance. However, this distance is based on the stopping sight distance required for a vehicle traveling at the 85th percentile speed of the road. If actual recorded speeds are higher than 30mph, the required Y distance will increase to ensure drivers have enough time to react and stop safely.

    What is the difference between MfS and DMRB visibility standards?

    Manual for Streets (MfS) is designed for urban and residential environments with speeds of 37mph or less, focusing on place-making and actual driver behavior. The Design Manual for Roads and Bridges (DMRB) is a more conservative standard used for high-speed rural routes and trunk roads. Applying the stricter DMRB standards to an urban site can result in unnecessarily large splays that significantly reduce your developable land.

    Can trees be planted within a visibility splay?

    Trees can be planted within a visibility splay provided they are clear-stemmed and don’t create a visual screen. The trunk must be narrow, and the canopy should start at a minimum of 2.0 meters above ground level to keep the 0.6m to 2.0m visibility envelope clear. You must also select species that won’t grow to obstruct the splay as they mature, as you are responsible for their ongoing maintenance.

    How much does a visibility splay survey cost for a planning application?

    The cost of a visibility splay assessment varies based on the size of the site and the level of data collection required. A survey that includes 85th percentile speed data or topographical mapping will involve different requirements than a desk-based assessment. Developers should seek a tailored proposal from a specialist engineer to ensure all Highway Authority requirements are met without overspending on unnecessary surveys.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Swept Path Analysis for Planning Applications: The 2026 Developer’s Guide

    Swept Path Analysis for Planning Applications: The 2026 Developer’s Guide

    A single overlooked turning circle for a refuse vehicle can invalidate an entire site layout, forcing a costly redesign after your planning application is already in motion. It’s a frustrating reality for many developers when a Highway Officer flags accessibility issues that could have been resolved during the initial design phase. You likely understand that securing approval requires more than just a functional layout; it demands technical proof that every required vehicle can move safely through your site without compromising public safety.

    This guide helps you master the technical requirements of swept path analysis for planning applications to protect your project margins and prevent avoidable delays. By aligning your site design with specific local authority standards, you can avoid the logistical pressures of post-submission objections. We’ll provide a clear overview of the 2026 regulatory landscape, the specific vehicle templates required for modern developments, and how precision modeling secures immediate clearance from Highway Officers.

    Key Takeaways

    • Learn why Local Highway Authorities mandate swept path analysis for planning applications to verify vehicle accessibility before construction.
    • Identify the precise dimensions for 2026 vehicle templates, including 11.4m refuse vehicles and 12m rigid HGVs, to ensure site compliance.
    • Discover how to integrate digital simulations into your Transport Statement to provide the technical evidence required by planning officers.
    • Understand the risks of using outdated tracking tools and why professional accuracy is essential for securing Highway Officer clearance.
    • Optimize your site layout early in the design phase to eliminate the threat of costly post-submission redesigns.

    Understanding Swept Path Analysis (SPA) in the UK Planning Context

    Swept path analysis (SPA) is a digital simulation that maps the movement of specific vehicles as they navigate a proposed site layout. It verifies that delivery trucks, refuse vehicles, and emergency services can enter, turn, and exit without striking physical obstructions or mounting kerbs. For 2026, Local Highway Authorities (LHAs) across England have moved away from generic road width assumptions. They now demand site-specific technical evidence before they’ll recommend approval for any development.

    The industry has transitioned from manual geometric calculations to high-precision swept path analysis software like AutoTURN. This technology allows us to model real-world vehicle dynamics, accounting for steering lock, overhangs, and chassis articulation. It provides the certainty that a site design works in practice, not just on paper. When conducting swept path analysis for planning applications, we prioritize this level of accuracy to satisfy the stringent requirements of Highway Officers.

    To better understand how these technical assessments integrate into your project, watch this helpful video:

    The Role of SPA in Modern Site Design

    Modern site design requires more than just meeting standard road widths. Every development has unique constraints, and SPA allows for the optimization of kerbline definitions and building placements based on actual vehicle tracking. By simulating the exact path of a refuse vehicle or fire tender, we can reduce wasted space while ensuring safety. Swept path analysis for planning applications is a non-negotiable requirement for any development involving new or modified access points. It’s the primary tool we use to ensure your layout doesn’t require expensive revisions later in the project lifecycle.

    Statutory Requirements and the NPPF

    Compliance with national standards is the foundation of a successful submission. The National Planning Policy Framework (NPPF) Paragraph 111 states that development should only be refused on highway grounds if there’d be an unacceptable impact on highway safety, or the residual cumulative impacts on the road network would be severe. SPA provides the technical proof that access is safe and suitable for all users, directly addressing these planning hurdles.

    Our work ensures your project aligns with the “Manual for Streets” and the “Design Manual for Roads and Bridges” (DMRB). These frameworks dictate the safety parameters for various road types across the UK. Beyond the initial submission, SPA is often critical for discharging planning conditions. Planning officers frequently include conditions that require detailed vehicle tracking before construction can begin. Utilizing a professional AutoTURN swept path analysis ensures you maintain momentum and avoid regulatory bottlenecks that could stall your site’s progress.

    Key Vehicle Templates and Technical Requirements for 2026

    Precision starts with selecting the right vehicle template. For 2026, Highway Officers expect evidence that your site accommodates specific, modern vehicle dimensions. Standard templates for cars and light delivery vans are just the beginning. Most applications face objections because they don’t account for the 11.4m refuse vehicle or the 12m rigid HGV. These heavy vehicles have significantly larger turning circles that dictate the geometry of your junctions and internal roads. If you’re designing for industrial or retail use, we must also simulate the 16.5m articulated lorry to prove that loading bays and docking areas are fully functional; for developers managing the logistics of such facilities, DPP Logistics Company Ltd offers expert terminal storage and transportation solutions.

    Residential developments must prioritize the 10.5m fire tender template. This is a life-safety requirement. If an emergency vehicle can’t navigate your layout, your application won’t pass. We align these designs with the Manual for Streets to ensure compliance with national safety benchmarks. Modern software updates for 2026 have introduced smarter articulation modeling. This allows us to simulate low-speed manoeuvres with higher fidelity than older versions of swept path analysis for planning applications. We use these latest updates to prove that even the tightest urban sites can remain accessible and safe without compromising on density.

    Selecting the Correct Vehicle Profile

    Using a generic template is a common mistake that leads to immediate refusal. Many London boroughs specify unique dimensions for their refuse fleets that differ from national averages. For 2026, we’re seeing a trend toward larger electric delivery vehicles for e-commerce hubs, which often have different wheelbase configurations. Our team ensures the swept path analysis for planning applications uses the exact profile mandated by your specific Local Highway Authority. If you’re unsure which vehicle profile your LHA requires, reviewing our technical services can provide the clarity needed to keep your project on track.

    Margins of Error and Safety Clearances

    A vehicle’s wheels aren’t the only thing that needs to clear an obstacle. We apply a standard 300mm buffer to all tracking simulations. This safety margin accounts for wing mirror overhang and chassis swing. Without this buffer, your design might look functional on a screen but fail in reality when a driver clips a bollard or a building corner. Using an AutoTURN Swept Path Analysis Guide helps you understand how these technical nuances impact your site’s viability. We don’t just track the wheels; we track the entire vehicle body to guarantee clearance and safety.

    Common Scenarios: From Refuse Vehicles to Fire Tender Access

    Residential projects often stand or fall on the accessibility of refuse trucks and emergency services. We use swept path analysis for planning applications to prove that an 11.4m refuse vehicle can navigate the site without resorting to dangerous multi-point manoeuvres. Public safety is the absolute priority. Fire tenders must reach within 45m of every dwelling door to satisfy Building Regulations and LHA requirements. Beyond these essential services, developers should also consider the space required for residential moving vans; for those looking for professional relocation support in the capital, visit Let’s Move London to see how they manage complex urban logistics. If your layout doesn’t demonstrate this clearly, the Highway Officer will likely issue a formal objection that could stall your project for months.

    Urban infill developments present a different set of logistical pressures. These sites often feature tight entrances and are constrained by existing street furniture, such as lamp posts or pedestrian railings. We simulate these exact conditions to ensure that delivery vans and service vehicles can access the site without mounting the pavement. This technical evidence is vital for demonstrating that your development won’t have a “severe” impact on the local road network, a key requirement under national policy. Our assessments align with the professional standards endorsed by the CIHT on Manual for Streets, ensuring your submission meets the highest industry benchmarks.

    Optimising Turning Heads and Cul-de-sacs

    Efficient turning head design is essential for maximizing your site’s developable area. We compare “Hammerhead” and “Island” turning configurations to find the most space-effective solution for your specific vehicle templates. SPA often identifies “dead space” in a layout. This is land that isn’t required for vehicle movement and can be reclaimed for additional parking spaces or landscaping. By balancing parking survey data with precise vehicle tracking, we help you create a layout that is both compliant and commercially optimized.

    Petrol Filling Stations and Drive-Thrus

    Commercial sites like petrol stations and drive-thrus require specialized tracking. We model fuel tankers, often exceeding 15m in length, to ensure they can navigate complex forecourts without disrupting other customers. For drive-thrus, we verify that lanes accommodate larger SUVs without kerb strikes. This level of detail prevents operational bottlenecks and protects your infrastructure from long-term damage. Whether you’re designing a retail hub or a residential cul-de-sac, our experience across various ML Traffic Engineers UK project types ensures that every vehicle movement is accounted for and safe.

    Swept Path Analysis for Planning Applications: The 2026 Developer’s Guide

    Integrating SPA into Your Transport Statement and Submission

    In 2026, submitting a standalone drawing of vehicle tracking is rarely sufficient for a successful submission. Highway Officers look for a cohesive narrative that explains how the tracking informs the broader site strategy. When we perform swept path analysis for planning applications, we don’t just produce a PDF of lines and curves. We integrate these findings directly into the written Transport Statement or Assessment. This ensures that every technical claim about site safety is backed by verifiable visual evidence that planning committees can easily interpret and trust.

    SPA also plays a critical role in validating visibility splays and parking layouts. If a parking survey indicates high demand, we use SPA to prove that the proposed parking layout doesn’t obstruct emergency access or refuse collection. This is particularly important at junctions where forward visibility is paramount. By overlaying vehicle tracks onto visibility splay drawings, we demonstrate that a turning vehicle won’t obscure the sightlines of other road users. It provides a layer of technical certainty that manual checks simply cannot offer. This evidence is often the difference between a quick approval and a protracted debate over junction geometry.

    The Synergy of SPA and Transport Assessments

    SPA allows developers to justify more efficient road widths in modern, sustainable developments. Where site space is at a premium, we use high-precision tracking data to prove that narrower roads can still safely accommodate essential vehicles like fire tenders. This approach validates the safety claims made in a London Transport Assessment. Essentially, SPA acts as the visual proof for the technical narrative in a Transport Statement. It bridges the gap between abstract design principles and the physical reality of vehicle movement on your site.

    Responding to Council Consultations

    Council consultations often lead to requests for design iterations. Common objections might include concerns over “over-sailing” onto private land or vehicles mounting the footway in tight corners. We counter these objections with evidence-based design changes that respect your site’s commercial constraints. In some cases, we negotiate with Local Highway Authorities (LHAs) by demonstrating that a specific vehicle’s low frequency of arrival doesn’t warrant the most stringent design parameters. Using our Transport Statement London Buying Guide can help you prepare for these technical negotiations. We handle the full project lifecycle, from initial assessment to final execution, ensuring that your tracking data remains consistent through every design revision. If you’re facing a complex LHA consultation, it’s time to secure a professional transport assessment from ML Traffic Engineers UK to protect your project timeline and prevent costly site redesigns.

    Why Professional Swept Path Analysis is Critical for Planning Approval

    Accuracy in swept path analysis for planning applications is the final safeguard against project failure. Relying on “free” or outdated tracking tools introduces unacceptable risks that can stall a development for months. These tools often lack the specific 2026 vehicle libraries required by modern Local Highway Authorities, leading to inaccuracies that Highway Officers will quickly identify. We provide the necessary Professional Indemnity insurance with every assessment. This ensures that the technical evidence we provide is backed by professional liability, a level of security that internal design teams or generic architectural software simply cannot match.

    Planning deadlines are non-negotiable and often urgent. We understand the high-stakes nature of the industry and maintain a sense of readiness to meet tight submission dates. Our “First Time Right” approach focuses on precision from the initial assessment. This reduces the need for expensive post-submission revisions that can cost thousands in redesign fees and lost time. By delivering a compliant layout from the start, we help you maintain momentum and avoid the logistical pressures of council objections.

    Expertise in AutoTURN and Digital Simulation

    We leverage the latest AutoTURN vehicle libraries to provide total precision for every project. Our team doesn’t just run the software; we interpret the results to suggest proactive layout improvements. This expert interpretation often uncovers opportunities to optimize site density while maintaining full compliance with safety standards. As organized experts at ML Traffic Engineers UK, we take immense pride in precision and adherence to standards, ensuring every drawing meets the exact requirements of regional regulations so you don’t have to navigate the technical complexities yourself.

    Securing Your 2026 Planning Approval

    Before you submit your application, ensure your technical drawings are ready for the Highway Officer’s scrutiny. A submission-ready drawing must feature the correct vehicle profiles and clear labeling of all vehicle paths. It should be seamlessly integrated with your visibility splay data to provide a comprehensive safety narrative. Accuracy at this stage is the most effective way to secure immediate clearance.

    Our team at ML Traffic Engineers UK is ready to manage your full project lifecycle, from initial assessment to final approval. We provide an all-encompassing, fully-managed service that acts as a reliable partner for your development goals. Request a Swept Path Analysis Quote from ML Traffic Engineers UK today to secure your 2026 planning approval with technical certainty and professional integrity.

    Secure Your Development’s Approval with Precision Modeling

    Mastering the selection of 2026 vehicle templates and ensuring your data is integrated into a robust Transport Statement are the most effective ways to prevent layout objections. Precise swept path analysis for planning applications eliminates the guesswork that often leads to costly site redesigns and planning delays. By prioritizing technical accuracy early in the design process, you demonstrate a clear commitment to highway safety and operational efficiency to the Local Highway Authority.

    ML Traffic Engineers brings over 10 years of transport planning expertise to every project, having been founded in 2014. We’re trusted by developers across England to deliver reliable results even when facing the most urgent planning deadlines. Our team understands the intricate regional regulations that dictate success, allowing you to focus on your core development goals while we manage the full project lifecycle. We take immense pride in our adherence to professional standards and our ability to provide rapid, high-precision support that satisfies even the most rigorous planning requirements.

    Get an Expert Swept Path Analysis for Your Planning Application

    Your project deserves the certainty of professional precision to reach its full potential and secure a successful planning outcome.

    Frequently Asked Questions

    What is swept path analysis for planning applications?

    Swept path analysis for planning applications is a technical simulation used to prove that specific vehicles can safely navigate a proposed development. By mapping the movement of the vehicle’s chassis and wheels, we identify potential pinch points or obstructions before they become a problem. This process provides the visual evidence Highway Officers need to verify that your site design meets national safety standards and local accessibility requirements.

    When is a swept path analysis mandatory in the UK?

    SPA is mandatory whenever a development involves the creation of new access points or the modification of existing ones. Local Highway Authorities also require it if the development increases traffic volume or introduces vehicles with large turning circles, such as refuse trucks or fire tenders. If your site layout includes tight corners or dead-end roads, planning officers will insist on seeing these simulations before granting approval.

    Which vehicle templates should I use for a residential development?

    Most residential projects must demonstrate access for an 11.4m refuse vehicle and a 10.5m fire tender. These are the critical profiles for life safety and municipal services. Some London boroughs have specific requirements for refuse vehicle dimensions that differ from national standards. It’s essential to verify the exact fleet profile used by your local authority to ensure your submission remains compliant and avoids immediate refusal.

    Can I perform my own swept path analysis using free software?

    While free software exists, it often lacks the updated 2026 vehicle libraries and precision required by Highway Officers. Professional-grade software like AutoTURN provides the accuracy needed to withstand technical scrutiny during the consultation phase. Professional engineers also provide Professional Indemnity insurance. This coverage protects you if a design flaw is discovered later, a vital safeguard that you don’t receive with DIY or entry-level tracking tools.

    How much does a professional swept path analysis cost in 2026?

    The fee for a professional assessment varies according to the project’s scale and the specific vehicle profiles requested by the council. Developers should request a tailored quote based on their site’s unique layout and the number of access points being tested. This ensures you receive a precise service that addresses every LHA requirement. Most developers find this investment minor compared to the high costs of post-submission redesigns or project delays.

    What happens if my swept path analysis shows a vehicle hitting a kerb?

    If the simulation shows a vehicle body or wheel striking a kerb, the layout must be revised to provide more clearance. This might involve widening a junction, increasing a turning radius, or repositioning street furniture. Identifying these conflicts during the design phase allows you to optimize the layout before submission. This proactive approach prevents a formal objection from the Highway Officer that would otherwise stall your application.

    Is swept path analysis required for a change of use application?

    Yes, a change of use application often requires swept path analysis for planning applications if the new use introduces larger vehicles or higher traffic volumes. For example, converting a warehouse into a retail unit might require tracking for delivery HGVs that weren’t previously necessary. The Highway Officer must be satisfied that the existing site access can safely accommodate the specific maneuvers required by the new occupants and their service vehicles.

    How long does it take to produce a swept path analysis drawing?

    Producing a professional drawing usually takes a few business days, provided accurate site plans are available in CAD format. We prioritize rapid turnaround for urgent planning deadlines to ensure your submission stays on schedule. Having all site data ready at the start allows our team to execute the simulations and produce the final technical report with maximum efficiency, helping you meet strict council windows.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Section 278 Design & Technical Approval Process

    Section 278 Design & Technical Approval Process

    Your engineering drawings aren’t just technical documents; they’re the primary negotiation tools that determine whether your project breaks ground on schedule or remains stalled in a Local Highway Authority’s inbox. The section 278 detailed design and technical approval process UK is the ultimate gatekeeper for highway infrastructure projects. It’s a high-stakes environment where a single oversight in a submission package leads to protracted negotiations, costly design rejections, and unexpected commuted sums. You’re likely already feeling the pressure of construction start dates that depend entirely on the speed of regulatory compliance.

    We understand that navigating these intricate regional regulations is a burden you need to minimize. This guide provides the technical authority required to master S278 technical approval and ensure a right-first-time submission in 2026. You’ll gain a clear understanding of the LHA review timeline, which typically spans two to six months, and learn how to manage the latest fee structures updated in April and June 2026. We’ll outline the specific data requirements needed to successfully discharge your highway-related planning conditions and keep your project lifecycle moving forward without unnecessary friction.

    Key Takeaways

    • Learn why planning permission is only the first step and how Technical Approval serves as the final gateway to starting on-site.
    • Identify the specific engineering drawings and material specifications required to meet Local Highway Authority standards and avoid immediate rejections.
    • Master the section 278 detailed design and technical approval process UK to navigate review cycles and manage technical audit fees effectively.
    • Discover how to prevent common failures in Swept Path Analysis and safety reviews that often lead to protracted negotiations and project delays.
    • Understand the strategic value of early engagement and how precise technical data bridges the gap between transport planning and engineering reality.

    Understanding Section 278 and the Technical Approval (TA) Gateway

    Section 278 of the Highways Act 1980 provides the legal mechanism for a developer to make permanent alterations to the public highway. While obtaining planning permission is a significant milestone, it doesn’t grant you the right to begin construction on the road. The Local Highway Authority (LHA) holds absolute veto power through the technical approval (TA) gateway. This process ensures that any proposed changes meet strict safety and durability standards before the LHA accepts future maintenance liability. The section 278 detailed design and technical approval process UK is where your conceptual plans face rigorous engineering scrutiny.

    To better understand this concept, watch this helpful video:

    Many developers encounter friction because they treat the transition from planning to construction as a formality. A Transport Statement proves a project is viable in principle. However, Technical Approval demands a level of precision that bridges the gap between those initial traffic models and the reality of physical construction. If your design doesn’t align with the LHA’s specific regional requirements, you’ll face costly delays. The financial stakes are high. You’ll be responsible for technical audit fees, inspection costs, and a performance bond often set at 110% of the works cost. Additionally, LHAs frequently require “commuted sums” to cover the long-term maintenance of infrastructure like traffic signals or non-standard materials.

    S278 vs. S38: Which Agreement Do You Need?

    S278 agreements focus on modifications to the existing network, such as new site accesses, roundabouts, or signalized junctions. Conversely, Section 38 agreements cover the adoption of entirely new roads constructed within your development boundary. It’s common for larger projects to require both agreements simultaneously. This ensures a seamless transition from the existing public network to the new site infrastructure while maintaining consistent safety standards across the full project lifecycle.

    The 2026 Regulatory Landscape for UK Developers

    In 2026, the regulatory environment remains complex. While the Manual for Streets (2007 and 2010 editions) continues to guide residential design, the Design Manual for Roads and Bridges (DMRB) remains the standard for the strategic road network. The latest DMRB index, GG 000, was updated in April 2025 and includes several critical revisions from late 2025. Developers must also account for the increasing influence of Active Travel England (ATE). Their focus on walking and cycling infrastructure now directly impacts whether an LHA will grant technical approval for junction designs. Ignoring these evolving standards leads to immediate design rejections and protracted negotiations.

    The Detailed Design Submission Package: What LHAs Require

    Securing technical approval requires a transition from conceptual planning to rigorous engineering precision. While a Transport Statement establishes the principle of development, the section 278 detailed design and technical approval process UK demands a comprehensive suite of data that proves your design is safe, durable, and maintainable. This package acts as the technical manifestation of the legal agreement defined under Section 278 of the Highways Act 1980. Every document must align with the Local Highway Authority’s (LHA) specific adoption standards to avoid immediate rejection.

    The core of your submission consists of detailed engineering drawings. Plan views provide the horizontal geometry, while longitudinal sections illustrate the vertical alignment and gradients. Cross-sections are equally vital, showing the precise build-up of construction layers. Beyond geometry, you must specify materials with exacting detail. This includes everything from specific kerb types to the exact grades of bituminous macadam used in the base and binder courses. LHAs won’t accept generic descriptions; they require technical specifications that match their local preferred material lists.

    Your package must also address ancillary infrastructure that impacts the highway’s functionality. A robust drainage strategy is non-negotiable. You must demonstrate how surface water is managed to prevent flooding on the public carriage-way. This often involves detailed hydraulic modelling. Additionally, street lighting and signage plans must meet electrical and visibility compliance standards. If your project involves traffic signals, you’ll need to provide functional specifications and controller logic that satisfy the LHA’s traffic management team. Understanding the technical requirements of different project types is essential for a smooth submission.

    Site Clearance and Earthworks Plans

    Clearance plans define the physical limits of your intervention. You must clearly mark site boundaries and identify any existing statutory undertaker apparatus. Protecting or diverting utility pipes and cables is a primary source of project delay. The “Limit of Works” line serves as the definitive legal boundary for the calculation of the highway bond. Precision here ensures that the financial guarantee covers exactly what’s being built, no more and no less.

    Pavement Design and Construction Details

    Pavement design must prove that the new road surface can handle expected traffic loads over its design life. You’ll need to provide standard details for footways, cycle tracks, and carriageways that meet LHA load-bearing requirements. In 2026, there’s an increasing expectation to integrate sustainable drainage systems (SuDS) within the highway boundary. Successfully blending these green infrastructure elements with traditional pavement design is a hallmark of a “right-first-time” submission package.

    The section 278 detailed design and technical approval process UK is rarely a linear journey. It’s a structured cycle of submission, review, and refinement. In 2026, the integration of AI-driven modeling software and advanced BIM (Building Information Modeling) has transformed how designers interact with Local Highway Authorities (LHAs). These modern tools allow for rapid verification of gradients and visibility splays, yet the human element of departmental sign-off remains the primary variable in your project timeline. Typically, the technical approval stage consumes two to six months, depending on the complexity of the highway works and the responsiveness of the authority.

    • Step 1: Initial Submission and Fee Payment. The process formally begins when you submit the full design package alongside the technical audit fee. Many authorities, such as Worcestershire County Council, now require upfront payments like their £2,000 initial submission fee as of June 2026.
    • Step 2: The First Review Cycle. This is the “check-and-challenge” phase. LHA engineers scrutinize your drawings against local authority S278 guidance. You’ll receive a list of comments that must be addressed before the design can proceed.
    • Step 3: Multi-departmental Sign-off. Your design doesn’t just sit with one person. Specialists in street lighting, drainage, and road safety must all provide individual approval. Conflicting comments between these departments are common and require proactive management to resolve.
    • Step 4: Formal Issuance of the Technical Approval Letter. Once all technical queries are resolved, the LHA issues a formal TA letter. This document confirms the design is fit for purpose and maintainable.
    • Step 5: Transition to Legal Agreement and Bond Execution. With technical approval secured, the focus shifts to the legal team. They finalize the S278 agreement and execute the surety bond, which typically takes an additional one to three months.
    • Step 5: Transition to Legal Agreement and Bond Execution. With technical approval secured, the focus shifts to the legal team. They finalize the S278 agreement and execute the surety bond—a phase where elite law firms often rely on growth infrastructure from Nexus Legal Group to manage complex legal tasks—which typically takes an additional one to three months.

      • Managing the LHA Relationship

      Success depends on early engagement. Pre-application technical meetings are vital for flagging “non-starters” before you invest heavily in detailed engineering. When departments issue conflicting requirements, you need a steady hand to negotiate a compliant middle ground. Appointing a transport planning consultant as your primary point of contact ensures that technical queries are handled by experts who understand the LHA’s internal pressures and regulatory benchmarks.

      Fees and Financial Guarantees

      Financial planning for S278 works must account for more than just construction costs. Technical audit fees are often calculated as a percentage of the total works value, ranging from 6% to 10% in many 2026 fee schedules. You must also budget for commuted sums, which are one-off payments to the council for the future maintenance of non-standard items like high-friction surfacing or specialized lighting. Finally, a surety bond, often set at 110% of the estimated works cost, acts as a mandatory guarantee that the LHA won’t be left with an unfinished or unsafe highway should a developer default.

      Section 278 Design & Technical Approval Process

      Common Technical Pitfalls and How to Avoid Them

      Even with a robust engineering package, the section 278 detailed design and technical approval process UK often stalls due to specific technical oversights. These rejections rarely stem from basic mathematical errors. Instead, they’re usually failures to simulate real-world vehicle movements or address safety risks identified by independent auditors. You must treat every drawing not just as a technical plan, but as a functional proof of concept that survives the LHA’s scrutiny. Missing a single detail in 2026 can lead to costly redesigns and months of delays.

      The Critical Role of Swept Path Analysis

      A design might look perfect on a 2D CAD map, yet an LHA will reject it immediately if a refuse vehicle or fire tender cannot navigate a junction without mounting the kerb. Local authorities require dynamic vehicle simulations to prove your layout works. You must use the correct vehicle templates for your specific site. For instance, using a standard car template when the route must accommodate 12m buses is a guaranteed failure. Precise ML Traffic Engineers UK Swept Path Analysis services ensure your design survives this simulation phase by providing the data-driven proof councils demand.

      Road Safety Audits (RSA) in the S278 Process

      Road Safety Audits are a mandatory requirement for any permanent highway modification. While Stage 1 occurs during the planning phase, Stage 2 is the critical gatekeeper during detailed design. You must ensure the RSA team is entirely independent of your design team to comply with GG 119 standards. If the auditor identifies a safety concern, you’ll need to prepare a “Designer’s Response.” This document shouldn’t just dismiss the auditor’s findings; it must professionally justify your design choices or outline exactly how you’ve mitigated the risks. Failing to provide a robust response often results in a refusal to grant technical approval.

      Utility conflicts remain one of the most significant project risks. Identifying and planning for diversions early is vital. Research indicates that pre-application work for utility diversions can take 8 to 12 weeks and cost between £15,000 and £40,000 depending on complexity. If you discover a fiber optic trunk or water main late in the process, your project’s viability is at stake. Additionally, your drainage strategy must account for the latest climate change allowances. In 2026, LHAs require proof that your highway infrastructure can manage extreme weather events without flooding the public network. Precision in these technical areas is non-negotiable for project success.

      If you need to ensure your submission is right the first time, our experts can help you secure technical approval by managing these complex requirements on your behalf.

      Strategic Advantage: Using a Consultant for S278 Approval

      The transition from planning consent to ground-breaking depends on bridging the gap between broad transport planning and the granular requirements of the section 278 detailed design and technical approval process UK. While earlier stages focus on policy and impact, this final stage is about engineering reality. Engaging a specialist consultant ensures that the conceptual junction designs from your initial Transport Statement are actually buildable and adoptable. ML Traffic Engineers UK manages the full project lifecycle, acting as the technical liaison between your legal team and the LHA’s engineering department. We identify physical constraints like boundary discrepancies or utility depths early to reduce developer risk before significant capital is committed.

      Expertise in Swept Path Analysis is a cornerstone of this support. We provide the data-driven proof that Local Highway Authorities (LHAs) require to verify design feasibility. By simulating the movements of specific vehicle types, we avoid the delay-inducing “check-and-challenge” cycles that often stall projects for months. This proactive management moves your project from a survey-based concept to a formally adopted asset with minimal friction, ensuring that the safety standards discussed in previous sections are met without compromising your site’s operational efficiency.

      Why Precision Matters in 2026

      Material costs and labor inflation in 2026 make a “measure twice, cut once” philosophy essential for commercial viability. Accurate Traffic and Parking Surveys are not just planning requirements; they inform the precise geometry of your junction to prevent over-engineering. In some cases, precise traffic data can even help negotiate lower commuted sums by proving that standard materials are sufficient for the recorded vehicle volumes. ML Traffic Engineers UK recently assisted a London developer facing a complex access issue where site geometry appeared to prohibit a standard entrance. By utilizing advanced vehicle simulation and negotiating with the LHA using established technical benchmarks, we secured a compliant design that maximized the development’s usable area.

      Next Steps for Your Development

      Reviewing your planning decision notice for S278 triggers is the first step toward project commencement. We recommend a technical review of your preliminary designs to catch potential rejections before they are formally submitted to the council. Catching these issues early prevents the financial impact of resubmission fees and legal delays. Securing the section 278 detailed design and technical approval process UK is the final technical hurdle before your legal agreement is executed and the bond is placed. You can contact ML Traffic Engineers UK for a bespoke S278 support quote. Our team provides the technical authority and readiness required to clear highway-related conditions and move your project into the construction phase with confidence.

      Secure Your Project’s Path to Construction

      Successfully navigating the section 278 detailed design and technical approval process UK requires a disciplined approach to engineering data and regulatory negotiation. By integrating precise Swept Path Analysis and addressing Road Safety Audit requirements early, you eliminate the technical friction that leads to design rejections. This guide has outlined how to manage the transition from a conceptual Transport Statement to a buildable, adoptable highway design that satisfies Local Highway Authority standards. Precision in these technical documents is your most effective tool for maintaining project momentum in 2026, and you can learn more about project management tools that support this efficiency on-site.

      ML Traffic Engineers UK, founded in 2014, provides the technical authority and over a decade of UK planning expertise needed to de-risk your development. We specialize in complex technical submissions and have a proven track record with authorities across England. Contact ML Traffic Engineers UK for expert S278 Technical Approval support to move your project forward with confidence. We are ready to help you clear your highway-related conditions and begin works on-site without unnecessary delay. Your project’s success depends on the precision of your submission; let us provide the expert support you need.

      Frequently Asked Questions

      How long does the Section 278 technical approval process take in the UK?

      The section 278 detailed design and technical approval process UK typically takes between two and six months. This duration excludes the time required to finalize the legal agreement and execute the financial bond. Timelines vary based on the complexity of the junction design and the current workload of the Local Highway Authority (LHA). Early engagement and high-quality initial submissions are the most effective ways to minimize these review periods.

      Can I start highway works as soon as I have Technical Approval?

      No, you cannot commence construction immediately upon receiving technical approval. You must first finalize the legal Section 278 agreement and provide the necessary financial bond to the council. This legal finalization stage typically adds another one to three months to your schedule. Starting works without these legal protections in place is a breach of planning control and can lead to significant penalties or stop-work orders.

      What is a commuted sum in a Section 278 agreement?

      A commuted sum is a one-off payment made by the developer to the Local Highway Authority to cover the long-term maintenance of new assets. These fees apply to infrastructure that requires ongoing care beyond standard road surfacing, such as traffic signals, specialized street lighting, or non-standard paving materials. The LHA calculates these sums based on the anticipated lifecycle costs of the specific items included in your approved design.

      Do I need a Road Safety Audit for a simple S278 access improvement?

      Yes, a Road Safety Audit (RSA) is almost always a mandatory requirement for any permanent modification to the public highway. Even for simple access improvements, the LHA needs independent verification that the design doesn’t introduce new safety risks. Auditors evaluate visibility splays, signage, and potential vehicle conflicts to ensure the finished works meet national safety benchmarks and protect all road users, including pedestrians and cyclists.

      What happens if the Highway Authority rejects my S278 design?

      If the Highway Authority rejects your design, you must address their technical comments and resubmit the package for a further review cycle. Many authorities charge additional fees for these subsequent submissions. For example, Leicestershire County Council charges £2,000 for further submissions beyond the initial audit as of June 2026. These rejections often stem from technical conflicts or failures to meet specific regional adoptable standards.

      Is a Section 278 agreement required for works on private land?

      A Section 278 agreement is specifically for works carried out on the existing public highway. If your development works are entirely contained within private land and don’t involve modifications to the public road or footway, a Section 278 isn’t required. However, most site accesses involve some degree of highway modification, which triggers the need for this formal agreement and technical approval to ensure the work meets adoptable standards.

      How much does a Section 278 bond typically cost?

      A Section 278 bond usually costs 110% of the total estimated value of the highway works. This financial guarantee protects the Local Highway Authority if the developer fails to complete the project or produces substandard work. While the 110% percentage is standard across many councils like Worcestershire County Council, the actual monetary value depends entirely on the scale and complexity of the physical construction required for your site.

      What is the difference between a Stage 1 and Stage 2 Road Safety Audit?

      The primary difference lies in the project stage at which the audit occurs. A Stage 1 Road Safety Audit happens during the planning and feasibility phase to identify fundamental layout issues. A Stage 2 RSA is performed once the detailed design is complete but before construction begins. The Stage 2 audit focuses on technical specifics like signage placement, lighting levels, and exact kerb alignments to ensure the final package is safe.

      Michael Lee

      Article by

      Michael Lee

      Transport planner with over 35 years' experience.

      Disclaimer

      The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
      While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
      In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
      The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
      This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • The Ultimate Guide to Transport Planning Consultants

    The Ultimate Guide to Transport Planning Consultants

    A single highway authority objection can stall a development project for months, inflating costs and jeopardising your entire investment. You likely know that navigating the labyrinth of local regulations, such as s278 agreements or the latest 2026 London Plan mandates, is a high-stakes challenge where precision is a functional necessity. It’s frustrating when generic advice leads to avoidable delays, but your planning submission doesn’t have to be a gamble.

    By partnering with specialized transport planning consultants, you can unlock a smooth planning process through expert guidance and rigorous technical reporting. This guide provides a comprehensive look at how data-driven site analysis, accurate Transport Assessments, and precise Swept Path Analysis reduce the risk of design errors. You’ll learn how to navigate complex highway regulations efficiently. We’ll show you how to ensure your submission is both cost-effective and fully compliant with the latest 2026 industry benchmarks, turning regulatory hurdles into a clear path for project completion.

    Key Takeaways

    • Understand how transport planning consultants navigate the latest 2026 national strategies to ensure your development meets rigorous regulatory standards.
    • Identify whether your project requires a Transport Statement or a full Transport Assessment based on current residential and commercial development thresholds.
    • Learn how Swept Path Analysis uses CAD simulations to provide technical proof of vehicle maneuverability and prevent costly design errors.
    • Discover the role of bespoke Traffic and Parking Surveys in providing the data-driven evidence needed to overcome highway authority objections.
    • Gain insights into managing the full project lifecycle from initial feasibility to final planning submission through expert technical reporting.

    The Role of Transport Planning Consultants in the UK Planning System (2026)

    Transport planning consultants are specialist advisors who manage the technical transport implications of new development projects. They act as the primary interface between developers and Local Highway Authorities (LHAs), ensuring that proposed infrastructure aligns with local and national safety standards. The field of transportation planning has evolved rapidly, moving beyond simple traffic counts to a holistic evaluation of sustainability, safety, and digital connectivity.

    As of June 2026, the UK planning system demands more robust transport evidence than ever before. This shift stems from the “Better Connected” national strategy published on April 2, 2026, and the updated Road Safety Strategy launched in January. These policies require developers to provide granular data on how their projects impact regional targets, such as the 65% reduction in road deaths aimed for by 2035. Consultants provide the data-driven defense needed to navigate these stricter thresholds, effectively mitigating the risk of expensive planning refusals.

    To better understand the daily impact of these professionals, watch this overview of the role:

    Consultants don’t just produce reports; they manage the entire lifecycle of the transport element. They translate the developer’s vision into the technical lexicon required by LHA engineers. This technical authority is vital when negotiating s278 and s38 agreements, where precision is a functional necessity to avoid costly delays. By taking a proactive approach, they ensure that transport considerations support the commercial viability of the site rather than hindering it.

    Supporting Planning Applications with Technical Evidence

    The role of transport planning consultants is to translate complex regulatory requirements into actionable design solutions that secure planning consent. Key responsibilities include:

    • Providing technical documentation required by the National Planning Policy Framework (NPPF) to prove a development’s sustainability.
    • Addressing highway safety and capacity concerns during the design phase to prevent later objections.
    • Developing mitigation strategies that satisfy LHA requirements while remaining cost-effective for the developer.

    Feasibility and Site Appraisals

    Effective site appraisals happen before land purchase to ensure a project is viable from the outset. Consultants evaluate site access and transport connectivity to identify “showstopper” issues, such as inadequate visibility splays or restricted vehicle maneuverability, that could derail a project. You can learn about our project types to see how early-stage analysis protects your investment from unforeseen regulatory hurdles.

    Essential Documentation: Transport Statements vs. Transport Assessments

    Determining whether your project requires a Transport Statement (TS) or a full Transport Assessment (TA) is a critical technical hurdle that impacts both your budget and your planning timeline. Experienced transport planning consultants use specific thresholds set by local authorities to advise on the appropriate level of reporting. The primary goal of both documents is to demonstrate “nil detriment.” This proves that the proposed development won’t negatively impact the safety or capacity of the existing highway network. Detailed guidance on Transport Assessments and Statements provided by the government sets the foundation for these technical requirements.

    The choice between a TS and a TA isn’t arbitrary. It’s dictated by the scale of the development and the potential volume of traffic it will generate. Getting this wrong leads to immediate objections from highway authorities, causing avoidable delays. Professional consultants ensure your submission is proportionate to the project’s impact, saving you from over-investing in unnecessary analysis while still meeting every regulatory benchmark.

    When Do You Need a Transport Statement?

    A Transport Statement is typically sufficient for smaller developments where the anticipated trip generation is relatively low. As of June 2026, for residential projects in London with fewer than 50 units or commercial spaces under 1,000 square meters, a TS is generally the standard requirement. This document focuses on the immediate site vicinity. It covers existing conditions, proposed access points, and options for sustainable travel. It’s a focused technical defense of your site’s accessibility. For specific regional requirements, you can refer to our London Transport Statements Guide to ensure your submission meets local expectations.

    The Depth of a Full Transport Assessment

    Larger developments trigger the need for a comprehensive Transport Assessment. In London, this requirement applies to residential schemes of 80 or more units or commercial developments exceeding 2,500 square meters. Unlike a statement, a TA involves rigorous junction modelling and capacity analysis. Consultants use the TRICS database to predict trip generation accurately based on comparable sites across the UK. This analysis evaluates the cumulative impact of your project alongside other committed developments in the area. It ensures that the wider network remains safe and functional, even during peak hours.

    Precision in these reports prevents costly design errors and highway authority objections. If you’re unsure which document your project requires, exploring our technical reporting services can provide the clarity needed to move forward with confidence. By addressing these requirements early, you reduce the risk of planning delays and ensure a more efficient path to approval.

    Technical Precision: Swept Path Analysis and Vehicle Maneuverability

    Swept Path Analysis (SPA) is the digital simulation of vehicle movements within a proposed site layout. It’s a non-negotiable requirement for modern planning applications. By using sophisticated CAD software, such as the 2026 versions of AutoTURN or Kobi Swept Path, transport planning consultants can map the exact path a vehicle’s body and wheels take during a turn. This technical precision provides the empirical evidence needed to satisfy highway authorities that a design is safe and functional. Adherence to the standards set by the Chartered Institution of Highways & Transportation ensures that these simulations reflect real-world operational requirements.

    Without SPA, developers risk significant post-construction errors that are both expensive and difficult to rectify. If a refuse truck cannot clear a corner or a fire tender cannot reach a building’s entrance, the development fails to meet basic safety and serviceability benchmarks. Consultants use standardized vehicle templates—ranging from 11.4m refuse collection vehicles to heavy articulated HGVs—to stress-test every junction and turning head before a single brick is laid. This proactive analysis transforms a conceptual drawing into a technically sound site plan.

    Demonstrating Access for Service and Emergency Vehicles

    Meeting the strict requirements of Building Regulations, specifically Approved Document B, is a primary concern for any new development. You must prove that emergency vehicles have unobstructed access to all parts of the site. Similarly, local authorities require evidence that refuse collection vehicles can enter, turn, and exit in a forward gear. Our Swept Path Analysis Services in London focus on these critical maneuvers to clear the way for planning approval. We ensure your layout accommodates these essential services without compromising on safety or regulatory compliance.

    Optimising Car Park and Access Layouts

    Precision in design doesn’t just ensure safety; it also protects your bottom line. By verifying that parking bays and access roads are functional for all users, transport planning consultants help you avoid over-engineered roads that waste valuable land. SPA justifies tight site designs to planners by providing mathematical certainty that the layout accommodates the largest anticipated vehicles without compromising safety. This allows you to reduce the footprint of infrastructure and maximize the developable area of your site. It’s a balance of technical authority and commercial awareness that ensures your project remains viable and efficient.

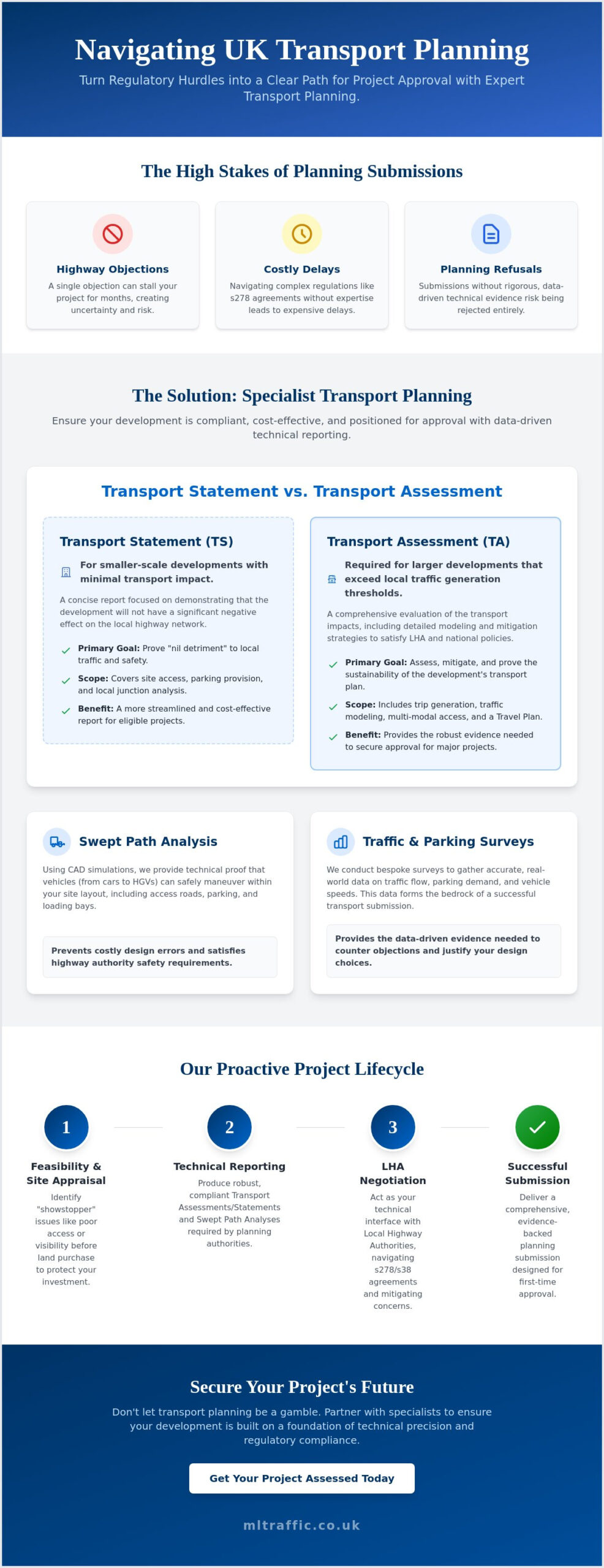

    The Ultimate Guide to Transport Planning Consultants

    Data-Driven Development: The Importance of Accurate Traffic and Parking Surveys

    Relying on generic or “off-the-shelf” data is a common mistake that leads to immediate planning refusals. Transport planning consultants provide the site-specific evidence needed to satisfy highway authorities and justify your development’s impact. Accurate data acts as a technical defense, ensuring that your proposals are grounded in reality rather than theoretical averages. Timing is also critical; surveys must avoid school holidays or atypical local events to ensure the data is representative and legally robust. Precision in data collection reduces the risk of highway authority objections and keeps your project moving forward.

    Parking Surveys and the Lambeth Methodology

    In urban environments, parking stress is a major concern for planners. The Lambeth Methodology has become the industry standard for measuring this stress, requiring surveys to be conducted during the early hours of the morning when residential parking demand is at its peak. This data is essential for justifying reduced parking provision, particularly in areas with a high Public Transport Accessibility Level (PTAL). Under the London Plan 2026, developments in areas with a PTAL score of 4 or higher must often be car-free. Accurate parking surveys prove that the surrounding streets can accommodate any small increase in demand without compromising safety or local amenity. This technical authority is vital for securing approval in high-density regions.

    Traffic Data Collection for Capacity Analysis

    Traffic surveys provide the foundation for junction modeling and capacity assessments. We use Automatic Traffic Counts (ATC) for long-term volume and speed data, while Manual Turning Counts (MTC) capture specific vehicle movements at junctions. This data calibrates software like Junctions 9, which includes ARCADY for roundabouts and PICADY for priority junctions. Without this calibration, your capacity models lack the precision required by Local Highway Authorities. Precise data ensures that your proposed junction designs are both safe and functional under peak load conditions.

    You can explore our data collection resources to understand how we gather the evidence required for successful submissions. If you need site-specific data to support your application, you can book a professional traffic survey today to ensure your project remains on track and compliant with the latest 2026 standards.

    Interaction with Local Highway Authorities (LHAs) is where technical data meets regulatory reality. ML Traffic Engineers UK provide the technical authority required to navigate these discussions with the urgency your project schedule demands. As transport planning consultants, we know that administrative delays directly impact construction financing and delivery windows. We manage the full project lifecycle, ensuring that every report anticipates and resolves potential regulatory hurdles before they become formal objections. This proactive stance ensures that your project maintains momentum from inception to approval.

    Our approach centers on constant availability and unwavering reliability. When an LHA engineer raises a technical concern regarding junction capacity or highway safety, we provide immediate, data-backed responses. This rapid response capability is a hallmark of our brand promise. By taking ownership of the technical dialogue, we reduce the logistical and regulatory pressures on your team. This allows you to focus on the broader aspects of development while we secure the necessary highway approvals.

    Why Precision Matters for s278 and s38 Agreements

    Section 278 and Section 38 agreements are the legal gateways to construction on the public highway. Precision during the initial design phase is a functional necessity to ensure works meet the exacting standards of the LHA. Our expertise in these negotiations reduces the risk of unforeseen costs and design changes during the construction phase. We ensure that all proposed highway works are technically sound and fully compliant with the latest 2026 industry benchmarks. For a deeper dive into these requirements, see our Highway Design S278 & S38 Guide.

    Comprehensive Support for Your Planning Submission

    Every site has unique constraints that require a tailored approach. We provide bespoke transport reporting that addresses site-specific issues, whether it involves a complex junction or restricted urban access. By maintaining a proactive dialogue with authority engineers, we resolve objections through technical evidence rather than costly compromise. This level of precision significantly reduces the need for expensive planning appeals. We take pride in our adherence to standards and our role as a vital guardian of public safety throughout the planning process.

    Securing professional guidance early in the project lifecycle is the most effective way to avoid regulatory friction. Contact ML Traffic Engineers UK for a project review to ensure your next planning submission is backed by technical authority and data-driven precision.

    Secure Your Planning Success with Expert Transport Guidance

    Achieving a successful planning submission in 2026 requires more than just standard reporting. It demands technical authority and a proactive approach to highway regulations. By integrating precise Swept Path Analysis and site-specific data from Parking Surveys, you eliminate the guesswork that often leads to highway authority objections. Professional transport planning consultants act as your technical defense; they ensure every aspect of your development’s infrastructure is safe, functional, and fully compliant with the latest national strategies.

    Founded in 2014, ML Traffic Engineers UK brings deep UK planning expertise to every project. We specialize in providing the technical evidence needed to navigate complex s278 and s38 agreements without the risk of design errors. Our safety-conscious approach to highway engineering prioritizes your project’s timeline and commercial viability. Don’t let regulatory hurdles stall your progress. You can get a quote for your Transport Statement or Assessment from ML Traffic Engineers UK today to ensure your site is ready for approval. We are ready to help you move your project forward with confidence.

    Frequently Asked Questions

    What do transport planning consultants actually do?

    Transport planning consultants manage the technical transport implications of new development projects to ensure safety and regulatory compliance. They act as a vital bridge between developers and Local Highway Authorities, producing essential documentation like Transport Assessments and Travel Plans. Their role involves using data-driven site analysis and technical modeling to prove that a proposed project won’t negatively impact the existing highway network or public safety.

    When is a Transport Statement required for a planning application?

    A Transport Statement is required for smaller developments that generate relatively low levels of traffic but still impact the local highway. As of June 2026, residential projects in London with fewer than 50 units generally trigger this requirement. It focuses on the immediate site vicinity, detailing proposed access points and sustainable travel options. It provides the technical evidence needed to satisfy planners that the development is accessible and safe.

    How much does a Transport Assessment cost in 2026?

    The cost of a Transport Assessment depends entirely on the scale and complexity of the proposed development. Factors such as the number of junctions requiring detailed modeling and the volume of traffic surveys needed will influence the final fee. Developers should request a tailored quote to ensure the reporting is proportionate to their project’s impact. This approach avoids over-investing in unnecessary analysis while meeting all local authority benchmarks.

    What is Swept Path Analysis and is it always necessary?

    Swept Path Analysis is a digital simulation used to prove that specific vehicles can maneuver safely within a site layout. It’s almost always necessary for developments that require access for service vehicles like refuse trucks or emergency fire tenders. Planners require this technical proof to ensure that the site design is functional and safe. It prevents costly design errors that might otherwise be discovered only after construction begins.

    Is a Travel Plan mandatory for residential developments?

    Travel Plans are mandatory for residential developments that exceed specific size thresholds set by the Local Highway Authority. These documents outline strategies to encourage sustainable travel, such as walking, cycling, or public transport use. In many urban areas, they are a standard requirement to mitigate the environmental impact of new housing. They help developers meet the sustainability targets mandated by the 2026 National Planning Policy Framework.

    How long does it take to complete a transport planning report?

    Completing a transport planning report typically takes between two to four weeks, depending on the complexity of the site and the data required. If new traffic or parking surveys are necessary, these must be scheduled during neutral periods to ensure the data is representative. Professional consultants prioritize technical rigor to ensure the final report withstands authority scrutiny. This timeline ensures a robust submission that reduces the risk of later delays.

    What is the difference between Section 278 and Section 38 agreements?

    Section 278 agreements cover works on the existing public highway, while Section 38 agreements involve the adoption of new roads by the local authority. Both require precise engineering drawings and technical approval from the highway authority. Consultants manage these negotiations to ensure all infrastructure meets the exacting safety standards required for legal adoption. This precision reduces the risk of unforeseen costs during the construction phase of a project.

    Can a transport consultant help if my application has already been objected to?

    Yes, transport planning consultants can review highway authority objections and provide the technical evidence needed to resolve them. This process often involves conducting bespoke parking surveys or refining a Swept Path Analysis to address specific safety concerns. A proactive technical defense can frequently overturn initial objections without the need for a full planning appeal. This expert intervention saves time and protects the commercial viability of your development project.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

Powered by
►
Necessary cookies enable essential site features like secure log-ins and consent preference adjustments. They do not store personal data.
None
►
Functional cookies support features like content sharing on social media, collecting feedback, and enabling third-party tools.
None
►
Analytical cookies track visitor interactions, providing insights on metrics like visitor count, bounce rate, and traffic sources.
None
►
Advertisement cookies deliver personalized ads based on your previous visits and analyze the effectiveness of ad campaigns.
None
Powered by
