    Swept Path Analysis for UK Basement Construction Access

    What if a basement ramp fits on the plan but the vehicle using it cannot make the turn? Swept path analysis for basement construction access tests the vehicle’s full journey, from the approach outside the site through the entrance, down the ramp and around any internal turning area. It models the selected vehicle’s path and swept envelope to identify potential conflicts with walls, columns, corners and other fixed obstacles.

    A tight basement layout can leave little room to address a problem once the design is advanced. The assessment is useful only when it reflects the intended vehicle and accurate project information. This guide explains which parts of the route to test, what drawings and vehicle assumptions to prepare, and how to identify geometric issues early enough to inform design discussions.

    It also explains how a project-specific review can reflect the local planning context and how access findings may support a wider Transport Statement or Transport Assessment. ML Traffic Engineers UK provides Swept Path Analysis for development access feasibility, drawing on senior staff with over 35 years of traffic engineering experience.

    Key Takeaways

    • Distinguish a vehicle’s wheel track from the wider space its body occupies when assessing clearances.
    • Use swept path analysis for basement construction access to test each movement, including entry, ramp descent, positioning and exit.
    • Choose design vehicles to match the movement being assessed, and distinguish construction-phase needs from those of the completed development.
    • Provide coordinated basement drawings and clear vehicle assumptions so the assessment can identify potential conflicts early.
    • A project-specific review can relate access findings to the local planning context and, where relevant, a wider Transport Statement or Transport Assessment.

    Why basement construction access needs a full swept path test

    A ramp can appear wide enough on a plan yet leave a vehicle unable to negotiate the turn at its foot. Swept path analysis for basement construction access assesses whether a defined vehicle can manoeuvre along a proposed route, using the supplied design information. It examines more than whether the vehicle’s wheels stay within the roadway or ramp.

    The wheel track shows where the tyres travel. The vehicle’s body follows a wider envelope because its front and rear overhangs can swing out as it turns. That envelope may approach a wall, column, kerb, gate or other fixed feature even when the wheels clear it. In an enclosed basement, limited headroom, narrow ramps and restricted turning areas can make each part of the movement relevant to the assessment.

    The scope should match the access purpose. Construction-phase access may involve vehicles needed to build the basement, while access for the completed development concerns vehicles serving the finished site. When planning for substructure works, consulting specialist contractors like Surrey Groundworks & Civil Engineering Ltd helps clarify the realistic dimensions of excavation plant and muck-away lorries. These can involve different movements and vehicle assumptions. If both phases matter, assess them separately rather than treating one vehicle path as evidence that every vehicle can use the route.

    What does a swept path drawing show at basement access?

    A swept path drawing plots the assumed vehicle as it moves through the proposed route, not just at the entrance. Depending on the assessment brief, it can show the approach, entry, ramp descent, turning and exit. The plotted body envelope helps reveal where overhang may approach walls, columns or kerbs. The result tests a defined vehicle and movement against the plans and other design information provided.

    Specialist tools can model vehicle movements. AutoTrack (swept path analysis software) is one example. For a basement, the value lies in applying the assessment to the actual route and its constraints. A line showing wheel movement alone cannot show the full clearance picture.

    Why assess access before the basement design is fixed?

    Early testing can expose a tight turn or potential conflict while the layout is still being developed. The design team can consider the finding before relying on a route that only appears workable in plan. The analysis provides evidence about the vehicle movement assessed. It does not, by itself, prescribe a design change or guarantee a particular planning outcome.

    In basement access design, swept path analysis tests whether an assumed vehicle’s full manoeuvring envelope can follow the proposed route without conflicting with features shown on the plans. The usefulness of that test depends on clear vehicle assumptions and coordinated information, including the entrance, ramp geometry, internal layout and fixed obstacles. A project-specific guide to swept path analysis for planning applications provides related context for understanding how vehicle movements are assessed.

    How construction vehicles move through a basement access route

    A useful route assessment follows the vehicle from the approach road to its intended position, then considers how it leaves. The entrance is only one part of that journey. A vehicle may clear the site boundary but encounter a tight transition at the top of the ramp, need additional space at the ramp foot, or lack room to turn within the basement.

    For swept path analysis for basement construction access, describe the actual movement being tested. Construction-phase vehicles may use a temporary or evolving arrangement, while vehicles serving the completed development may follow a different route or have different dimensions. Treat these as distinct assessment cases where both are relevant. One vehicle’s movement does not establish that another can use the same layout.

    Which parts of the basement route should be tested?

    Set out the route in sequence and identify where the vehicle changes direction, negotiates a transition or needs room to align with its destination. Include the approach road and entrance, ramp alignment and transitions, internal turning area, destination point and exit route where they form part of the project question.

    Review the route against the features shown on the drawings, including boundary walls, columns, kerbs, gates and other fixed obstacles. If a vehicle must enter a loading or work area, assess the movement into that position as well as the route to reach it. Match the level of detail to the access question. Reaching the basement entrance is not necessarily the end of the journey.

    • Approach and entry: Consider how the vehicle lines up with the entrance and begins its turn from the road.
    • Ramp and transition: Examine changes in alignment and the available manoeuvring space at the top and foot of the ramp.
    • Internal movement: Include turning, positioning and exit movements that the proposed operation relies on.

    How do reversing and tight turns affect the assessment?

    Show the manoeuvre as proposed. If the vehicle needs to reverse into or out of a position, model that movement rather than assuming it can travel forwards throughout. A turn may bring the body’s front or rear overhang closer to an obstacle than the wheel track suggests, so review the full vehicle envelope against the available clearances along the route.

    Restricted sightlines or limited space can also make the sequence of movements relevant. For example, a vehicle may need to pause, realign or reverse where the ramp meets an internal turning area. Include these operational details in the brief and drawings when they affect the movement being assessed.

    The assessment demonstrates the defined vehicle movement against the supplied design information. It does not establish that every possible site operation, vehicle or traffic interaction has been tested. A clear route brief helps keep the analysis focused. ML Traffic Engineers UK provides traffic engineering support tailored to the project and its planning context.

    What design vehicle and basement details make the analysis useful?

    A swept path assessment is only as relevant as the vehicle and movement it represents. For swept path analysis for basement construction access, define the access question first: is the test for a vehicle needed during construction, for servicing the completed development, or for both? A vehicle selected for one purpose should not be treated as a stand-in for another with different dimensions or manoeuvring needs.

    Set out the intended vehicle and route with the project team, then provide plans showing the geometry the vehicle must negotiate. Where construction and operational access both matter, identify each as a separate case. This makes the assessment’s scope clear and helps prevent a result for one movement being applied to another.

    How should the design vehicle match the project?

    Select the vehicle to reflect the movement being assessed, using project information rather than an unsupported assumption or generic template. A construction vehicle accessing a work area may have a different purpose and route from a vehicle serving the completed development. Record the relevant vehicle assumptions and manoeuvre for each case so the assessment can test the intended scenario.

    Assessment case Information to define
    Construction phase The vehicle required for the construction-related access question, its approach and route, and the position it needs to reach.
    Completed development The vehicle serving the finished site, the access route it will use, and any internal positioning or exit movement being assessed.

    These categories describe different assessment purposes, not fixed vehicle types. The project brief should identify the actual vehicle assumptions and movements to be tested. If a vehicle or route changes as the design develops, review the assessment basis against the updated information.

    Which basement drawings and constraints should be reviewed?

    Provide a coordinated base plan that makes the full route legible, from the entrance and ramp through internal circulation to the turning area and intended destination. Include dimensions and levels where available, together with the ramp alignment, transitions and relevant approach geometry. Use drawings with a suitable scale and dimensions for assessing the movement, rather than relying on visual estimates from an unclear or incomplete plan.

    Show fixed features that could affect vehicle movement, including walls, columns, kerbs, gates and other obstructions. If a feature is absent from the drawing, it cannot be reliably considered in the plotted assessment. Check that the information describes the same design layout and that key dimensions and levels are consistent across the supplied plans.

    Vehicle assumptions and base-plan accuracy shape what a swept path assessment can show: the result tests the defined vehicle against the geometry represented in the supplied drawings. Clear inputs make the findings more useful for design discussion and keep conclusions tied to the specific movement and layout assessed.

    Swept Path Analysis for UK Basement Construction Access

    Reviewing Basement Access Results and Conflicts

    A swept path drawing is evidence of a defined movement, not a general approval of the whole basement layout. Review it in sequence: establish what has been tested, trace the vehicle envelope through each constrained area, then record any conflicts with the design features shown. This keeps the discussion specific and makes it easier for the project team to identify what needs further attention.

    How should a project team read the swept path output?

    Start by checking the vehicle, direction of travel, manoeuvre and route shown on the drawing. Then follow the plotted envelope through the entrance, along the ramp and around internal obstacles. Compare it with the features shown, not just the wheel track. Keep the result within its scope: a drawing demonstrates the movement modelled against supplied information, not movements, conditions or obstructions it does not represent.

    1. Confirm the assumptions. Verify that the vehicle and movement match the access question, including whether the route is for entry, exit, reversing or internal positioning.
    2. Trace the full manoeuvre. Follow the vehicle from its start point through each change in direction. Do not focus only on the entrance or the tightest-looking turn.
    3. Review the vehicle envelope. Check the body path against entrance edges, ramp boundaries, walls, columns, kerbs, gates and other fixed features represented on the plans.
    4. Note the constrained locations. Record where the envelope approaches or conflicts with a feature, and identify the route segment and movement involved.
    5. Separate findings from assumptions. Distinguish clearances demonstrated on the drawing from details that were not shown or movements outside the assessment scope.

    This sequence helps the team communicate a finding precisely. For example, “the vehicle envelope approaches the column during the turn at the ramp foot” identifies a location and movement for design discussion. It is more useful than a broad statement that the basement access is too tight. The practical AutoTURN swept path analysis guide offers further context on interpreting vehicle movement drawings.

    What can the design team do when a movement conflicts?

    First, identify the exact conflict and the assumptions behind it. The design team can then discuss potential layout revisions, such as changing the route geometry or the arrangement of an obstruction. These are design considerations, not guaranteed solutions. Assess any revision using updated project drawings and agreed vehicle assumptions so the result reflects the design being considered.

    Findings can support access-feasibility discussions and inform planning evidence, but they do not guarantee planning approval. Keep the assessment clear about what was tested and what it demonstrates. For project-specific swept path analysis for basement construction access, discuss your access requirements with ML Traffic Engineers UK.

    How ML Traffic Engineers UK supports basement access assessment

    ML Traffic Engineers UK provides Swept Path Analysis to assess proposed vehicle movements and support development access feasibility. For a basement project, the work focuses on the defined route, vehicle assumptions and design information, providing technical evidence for access discussions. The assessment is tailored to the project and its local planning context, rather than relying on a generic route or vehicle scenario.

    The consultancy takes a hands-on approach to each project. Every senior staff member has over 35 years of traffic engineering experience. ML Traffic Engineers UK works across Greater London, Manchester, Birmingham, the West Midlands, Liverpool, Surrey, East Sussex, West Sussex, Hampshire, Berkshire and Buckinghamshire, where assessments can be tailored to the relevant local planning context.

    What information helps scope a basement access assessment?

    A clear brief helps define what the assessment needs to demonstrate. Set out the access question, vehicle, movement and intended destination, then provide the latest available drawings so the analysis reflects the current proposal. Include relevant dimensions, levels and fixed constraints along the route. ML Traffic Engineers UK tailors its review to the project information and local planning context, keeping the assessment focused on the movement under consideration.

    • Access question: Explain whether the review concerns construction-phase access, the completed development, or both.
    • Vehicle and movement: Identify the vehicle assumptions and whether the proposed manoeuvre involves entry, reversing, turning, positioning or exit.
    • Design information: Supply drawings showing the entrance, ramp, internal route, destination and relevant walls, columns, kerbs, gates or other fixed features.
    • Project context: Note the planning stage and any relevant local access or drawing requirements identified for the project.

    These inputs establish the assessment’s scope and make its findings easier to interpret alongside the proposed design. If the layout or vehicle assumptions change, updated information can inform a further review of the movement.

    What are the next steps for a UK development project?

    First, establish whether the project needs a focused access drawing or whether vehicle access forms part of wider transport planning documentation. A specific basement manoeuvre may call for a targeted assessment. Where a broader review of transport effects is relevant, a guide to Transport Assessments for London development explains the wider planning context. The appropriate scope depends on the project and its planning requirements.

    For a focused review, bring together the access question, vehicle assumptions and current design drawings. ML Traffic Engineers UK can tailor Swept Path Analysis to assess the proposed movements and support development access feasibility, with the findings considered alongside the design and local planning context.

    Discuss your basement access requirements with ML Traffic Engineers UK.

    Set the next design decision in motion

    Make the access question clear while the basement layout is still being developed. Identify the vehicle movement that needs testing and align the assessment with the current design information. If the proposal changes, updated drawings and assumptions help ensure any further review relates to the layout now under consideration.

    Use swept path analysis for basement construction access to inform design discussions, not as a substitute for project-specific planning judgement. Clear evidence of the movement assessed can help the project team focus on the relevant access issue and consider it alongside the wider development proposal.

    ML Traffic Engineers UK takes a hands-on approach, tailoring its assessment to the project and local planning context. Its senior staff each have over 35 years of traffic engineering experience. For support with your proposed basement access, discuss your access requirements with ML Traffic Engineers UK.

    Start with a clearly defined movement and the latest available design information. That gives your team a sound basis for the next design discussion.

    Frequently Asked Questions

    What is swept path analysis for basement construction access?

    It is a technical assessment of how a selected vehicle moves through a proposed basement access layout. The review can test a defined route, such as entering from the site approach, descending a ramp and turning towards a destination. Its conclusions apply to the vehicle and manoeuvre represented, not every vehicle that might use the site. This makes it useful for discussing a specific access question with the design team.

    Can swept path analysis show whether a construction vehicle can enter a basement?

    Yes. It can test whether a defined construction vehicle movement can be accommodated by the access geometry shown in the project information. The brief should describe the intended approach and manoeuvre, such as entering forwards or reversing to reach a work area. The result is evidence about that tested movement. It does not establish how every site operation will be managed or resolve matters beyond the drawing’s scope.

    What information is needed for a basement swept path assessment?

    Provide the current access and basement drawings, the vehicle and movement to be assessed, and relevant dimensions, levels and fixed constraints. Identify the drawing revision and make clear which layout represents the current proposal. If plans show different arrangements, specify which one applies to the assessment. This helps avoid interpreting a result against superseded geometry or assumptions that no longer match the design.

    Does swept path analysis check ramp gradients and headroom?

    Not by itself. A plan-view swept path drawing focuses on vehicle movement across the layout shown; it should not be read as verification of vertical clearance or ramp gradients. For example, a plotted route may indicate that a vehicle can turn in plan without establishing whether its height is compatible with the available clearance. Treat vertical geometry as a separate design consideration, supported by the relevant project information and checks.

    Can swept path analysis test a vehicle reversing into a basement?

    Yes. A reversing manoeuvre can be modelled if it is part of the access question and the route is clearly defined. The assessment brief should identify where the vehicle starts, where it needs to finish and which direction it travels during the manoeuvre. This is useful when the intended position requires a turn or reverse movement. The result applies only to that vehicle and movement, not untested operating arrangements.

    When should basement access be assessed during design?

    Assess it while the access layout is still being developed, when findings can inform design discussion. Timing depends on the stage of the proposal and the drawings available. Local planning context can differ across Greater London, Manchester, Birmingham, the West Midlands, Liverpool, Surrey, East Sussex, West Sussex, Hampshire, Berkshire and Buckinghamshire. If the geometry changes, base any further assessment on the revised design.

    Is a swept path drawing the same as a construction logistics plan?

    No. A swept path drawing illustrates and tests a defined vehicle movement against a proposed layout. A construction logistics plan addresses broader arrangements associated with construction, so one document should not be treated as a substitute for the other. For example, a movement drawing may show whether a vehicle can negotiate a basement entrance, but it does not set out wider site logistics. The project’s planning requirements determine what supporting documents are relevant.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Brent Retail Park Transport Assessment: Developer’s Guide

    Brent Retail Park Transport Assessment: Developer’s Guide

    Could a retail park’s transport case be weakened by a report that counts vehicles but misses how shoppers, staff and deliveries move? A transport assessment for retail park in Brent should reflect the proposal and its actual location, not rely on a generic account of traffic. A key early decision is whether the planning application needs a detailed Transport Assessment or a more concise Transport Statement, and what evidence will explain the proposal’s effects.

    This guide explains the factors that shape the assessment scope, from trip patterns, site access and parking to walking, cycling and public transport. It also outlines how the site’s local planning context can inform the evidence, so you can prepare a clear, proportionate submission.

    You’ll find the project information to assemble and the local considerations to investigate before the report is developed. ML Traffic Engineers UK prepares Transport Assessments and Transport Statements tailored to the proposal and local authority context. Its hands-on approach is supported by senior staff who each have over 35 years of traffic engineering experience.

    Key Takeaways

    • Start by identifying how the proposal changes site access, traffic and other movement, rather than judging its transport requirements by the “retail park” label.
    • A transport assessment for retail park in Brent should focus on the proposal’s relevant effects and the site’s specific circumstances.
    • Understand how a detailed Transport Assessment differs from a concise Transport Statement, then consider which best fits the scheme and planning context.
    • Bring together current plans, proposed uses, access details and operational assumptions to support a clear, well-grounded assessment.
    • ML Traffic Engineers UK tailors planning documents to the local context, with over 35 years of traffic engineering experience for every senior staff member.

    When might a Brent retail park proposal need a transport assessment?

    Start by asking what the proposal would change about movement and access. A new retail park, an expansion, a change of use or a substantial alteration to an existing site can each affect travel in different ways. The development’s label alone doesn’t determine the assessment scope. The proposal, the site and the planning context do.

    A Transport Assessment is a project-specific analysis of how a development may affect travel and transport, and how those effects relate to its location and design. It supports a planning application; it isn’t the planning decision itself or a guarantee of approval. A Transport Assessment is required for development of strategic importance that is legally referable to the Mayor of London. For other schemes, Brent Council determines whether a full assessment or a more concise Transport Statement is appropriate, considering the proposal and its likely effects.

    Which retail park changes can affect transport assessment scope?

    Focus on what is changing in practice: proposed floor space and uses, site access, parking arrangements, and how the existing operation may change. A new retail destination could generate different journeys from an extension to an established park. A change of use may alter visitor patterns, while revised access or servicing arrangements can affect how vehicles enter, leave and circulate.

    Customer journeys are only part of the picture. Employees may travel at different times, and servicing and deliveries can involve distinct vehicle types, routes or operating patterns. The evidence required depends on the application and site circumstances. Define the proposed operation clearly rather than assuming a fixed survey or report scope.

    Why does Brent’s local context matter?

    A site’s surroundings help explain where its transport effects may be felt. Examine the streets serving the access, pedestrian routes, public transport connections and nearby destinations that could influence travel patterns. A proposal near Wembley may have a different context from one in Harlesden or Neasden. Use area-specific detail only when it accurately describes the site and its connections.

    Brent’s adopted Local Plan, alongside the London Plan and wider transport policy, provides planning context for proposals. Check the current policy wording and site conditions rather than treating borough-wide assumptions as evidence about a particular location. For background on how a major retail destination connects with its surroundings, see Brent Cross Shopping Centre and its transport considerations. Brent Cross is a separate example, not a substitute for evidence about a site in the London Borough of Brent.

    For a transport assessment for retail park in Brent, set out a clear chain of reasoning: what is proposed, how it changes travel, and which local connections or streets may be affected. Establishing that logic early helps the planning evidence address the actual scheme, without assuming that every retail park needs the same level of analysis.

    What should a retail park transport assessment in Brent examine?

    A useful assessment connects the proposed retail activity to the way people and vehicles will reach, use and leave the site. It should consider access, movement, parking, trip patterns and the effects relevant to the particular scheme. A new store, a change in the mix of retail uses and an expansion can each produce different travel patterns, so analysis should follow the proposal rather than a standard checklist.

    Assessment scope should be proportionate to the proposal, its likely transport effects and the specific context of the site. The UK Government guidance on Transport Assessments and Statements provides a framework for preparing planning-related transport evidence. Use current, relevant information and explain clearly how the conclusions follow from the evidence.

    How should retail trips, access, and junction effects be considered?

    Start with the proposed uses and operating assumptions. Different retail activities can attract different customer patterns, while opening hours, staffing and servicing arrangements shape when and how journeys occur. Explain how the assessment estimates the number and distribution of trips, including likely arrival and departure routes. Avoid treating every visit as a car journey.

    Then distinguish three things: existing transport conditions, forecast movement associated with the proposal, and any mitigation being considered. Review the site access and relevant nearby junctions in light of those forecasts. This helps show where development traffic may interact with existing movement and whether further analysis or a response is relevant. Don’t invent impacts or apply an assumed threshold. The method and focus should reflect the site and the authority’s requirements.

    How do parking, servicing, and sustainable travel fit in?

    Consider parking in relation to the proposed uses, expected demand, site layout and applicable Brent planning context. Stating the number of spaces alone may not explain how parking supports the operation or affects access and surrounding streets. Make the assumptions behind the provision clear, using current policy and site information to assess its suitability.

    Service activity needs its own consideration. Deliveries, refuse collection and other servicing can involve different vehicle movements from customer visits, so their routes, access and interaction with site circulation may be relevant. Describe the operational assumptions used rather than implying that all movements happen in the same way or at the same time.

    Assess walking, cycling and public transport through the connections people can actually use to reach the site. Consider where those routes lead and how the site entrance relates to them. Verify local conditions instead of relying on general statements about Brent’s transport network.

    • Access: explain how vehicles, pedestrians and cyclists reach the site.
    • Movement: set out the basis for trip estimates and route distribution.
    • Parking and servicing: connect provision and operational assumptions to the proposed uses.
    • Mitigation: identify responses only where the assessment establishes a relevant effect.

    This evidence-led approach keeps a transport assessment for retail park in Brent focused and proportionate. ML Traffic Engineers UK tailors Transport Assessments to the proposal and local planning context. Read about transport assessment support from ML Traffic Engineers UK for planning applications.

    Transport Assessment or Transport Statement: which suits a Brent retail park?

    A retail park doesn’t automatically require a full Transport Assessment simply because of its name. The right document depends on what the application proposes, the likely transport effects and the relevant planning context. A new development, a change to an existing site or a revised mix of uses may each call for a different level of analysis.

    In London, a Transport Assessment is required for developments of strategic importance that are legally referable to the Mayor. For other proposals, the local planning authority considers whether a Transport Assessment or Transport Statement is appropriate. The report should provide enough evidence to address the scheme’s relevant effects, without adding analysis that isn’t needed to explain them.

    What distinguishes a Transport Assessment from a Transport Statement?

    A Transport Assessment is the more detailed document. It may examine a wider range of transport effects and provide more in-depth analysis where the proposal and its context call for it. A Transport Statement is more concise, presenting relevant information for a scheme whose transport effects can be addressed at a simpler level.

    There’s no universal floor-space, trip or cost threshold to use as a shortcut. The application, the site and the evidence needed to understand potential effects shape the report type. The London Transport Assessment guide explains the broader distinction and planning context.

    What questions help define a proportionate scope?

    To identify the appropriate level of evidence, work through the proposal and its likely transport implications. Useful questions include:

    • What scale and mix of uses are proposed, and how do they differ from the existing site?
    • Will access arrangements, site circulation or operating patterns change?
    • Which customer, employee or servicing movements could be affected, and where?
    • What reliable site and transport information is already available, and what gaps remain?

    The answers help identify which topics are material, rather than importing a generic report template. For example, a proposal that changes site access may need focused consideration of how vehicles enter and leave. A change in use may make the revised travel pattern central to the assessment. These questions guide the scope; they are not automatic rules for requiring a particular survey or analysis.

    Consider Brent-specific requirements against the current planning context and the circumstances of the site. Early discussion with the relevant planning authority can help establish what evidence it expects for the application. Record the reasoning behind the selected report type and its scope, so the submission shows how the analysis responds to the proposal.

    A proportionate transport assessment for retail park in Brent is neither a generic checklist nor an oversized report. ML Traffic Engineers UK prepares Transport Assessments and concise Transport Statements tailored to the proposal and local authority context, helping applicants develop focused planning evidence.

    Brent Retail Park Transport Assessment: Developer's Guide

    How can applicants prepare transport evidence for a Brent retail park?

    Good preparation starts with a stable description of the proposal and a clear record of what is known, what is assumed and what is still changing. This gives the assessment a reliable basis and keeps its analysis focused on the scheme. Use this sequence to organise the information before developing the transport evidence.

    1. Define the proposal. Set out the site location, proposed uses and scale, and explain whether the application involves a new development, an expansion or changes to an existing operation.
    2. Assemble current plans. Gather site and layout plans showing proposed access points, internal circulation, parking and relevant pedestrian or cycle connections. Make sure the plans reflect the design being assessed.
    3. Describe how the site will operate. Record known assumptions about opening hours, customer activity, staffing, deliveries, servicing and refuse collection. Distinguish confirmed details from estimates or design options.
    4. Set out the transport changes. Identify changes to access, parking or movement patterns, and note which surrounding routes or connections may be relevant to the proposal.
    5. Check the evidence base. Review current planning material and verified information about local streets, public transport, walking and cycling connections. Flag gaps that may affect the assessment scope.

    What project information should be assembled first?

    Start with the development description, drawings and access proposals, then add operational information that can influence travel. This may include the proposed use mix, parking arrangements, delivery assumptions and expected site activity. If the design or operating details are unsettled, identify the options clearly rather than treating a draft assumption as final. That allows the analysis to reflect the proposal being considered and makes later revisions easier to trace.

    Consider how the characteristics of the development affect the transport evidence it needs. The useful question is not simply whether the site is described as retail, but which features of this particular proposal could shape the assessment.

    How should local policy and evidence be checked?

    Check the current wording and status of Brent planning documents and relevant transport guidance before describing a policy requirement in the submission. Then use site-specific information, such as the actual access arrangement and nearby connections, instead of assuming conditions are the same across the borough. Where information has not been verified, mark it as an assumption or identify it as a gap.

    Keep the report narrative organised: explain what the evidence shows, state the assumptions used to interpret it, and distinguish both from any recommendations. This makes the reasoning easier to follow and helps ensure that proposed responses relate to identified issues. A carefully prepared transport assessment for retail park in Brent can clarify the proposal’s transport context, but it cannot guarantee a planning outcome.

    ML Traffic Engineers UK takes a hands-on approach to planning-related transport evidence, tailoring Transport Assessments and concise Transport Statements to the scheme and local authority context. Read about transport assessment support from ML Traffic Engineers UK.

    How ML Traffic Engineers supports retail park assessments in Brent

    A retail park proposal needs transport evidence that reflects its design, use and location. ML Traffic Engineers UK prepares Transport Assessments and concise Transport Statements for planning applications, tailoring the scope to the scheme and the relevant local authority context. The aim is clear, project-specific analysis, not a universal template applied regardless of the site.

    Every senior staff member has over 35 years of traffic engineering experience. The team takes a hands-on approach, considering the proposal and available information to develop transport evidence suited to Brent’s planning context. ML Traffic Engineers UK serves Greater London, Manchester, Birmingham, the West Midlands, Liverpool, Surrey, East Sussex, West Sussex, Hampshire, Berkshire and Buckinghamshire.

    What does a hands-on, locally tailored assessment involve?

    It starts with understanding what the application proposes and which transport questions are relevant to that specific site. The assessment can then focus on the evidence needed to explain the proposal’s transport implications, taking account of applicable local planning considerations and verified site information.

    This matters because two retail schemes can differ in their uses, access arrangements and operation. An analysis tailored to one site may need to address different issues from a report for another location. ML Traffic Engineers UK’s approach keeps the assessment aligned with the project rather than treating a standard checklist as a substitute for professional judgement. Scope and analysis are shaped by the proposal and planning context; a report does not determine the planning decision or guarantee a particular outcome.

    Clear communication is part of a useful assessment. The report should make its evidence and assumptions understandable, explain how they relate to the proposed scheme and identify relevant considerations without overstating what the available information shows. This gives the planning submission a coherent transport narrative to be considered alongside its other material.

    What is the next step for a Brent retail park proposal?

    Bring together the information already available, such as current site plans, the development description, proposed uses and access details. Explain the planning stage and identify operational details that are known, provisional or still being developed. These inputs help shape an initial discussion around the proposal and the appropriate transport evidence.

    Whether the project is at an early design stage or being prepared for submission, ML Traffic Engineers UK provides hands-on support with a Transport Assessment or Transport Statement tailored to the scheme. Its work across Greater London, including Brent, takes account of differences in local authority planning context.

    For a transport assessment for retail park in Brent, begin with the proposal, its planning stage and the information available. This focuses the assessment on the site’s requirements and the evidence needed to support a clear application.

    Explore transport assessment support from ML Traffic Engineers UK.

    Move your Brent retail proposal towards a clear next step

    Transport planning is most useful when it starts early enough to inform the proposal, not just describe it after key design decisions have been made. A well-scoped transport assessment for retail park in Brent can bring transport considerations into the planning process while the scheme is taking shape.

    ML Traffic Engineers UK takes a hands-on approach, tailoring assessment work to the development and local planning context. Every senior staff member brings over 35 years of traffic engineering experience, supporting clear, considered advice as project details develop. The aim is to establish a sound basis for the transport evidence, not to promise a particular planning outcome.

    Share where your proposal stands and what information is available. A focused discussion can help identify a practical direction for the next stage of your planning work.

    Discuss your Brent retail park transport assessment and take the next step with ML Traffic Engineers UK.

    Frequently Asked Questions

    Does every retail park planning application in Brent need a Transport Assessment?

    No, a Transport Assessment isn’t automatically required for every retail park application in Brent. The need depends on the proposal, its likely transport effects and the planning context. For a transport assessment for retail park in Brent, establish whether the application is strategically referable and identify the proportionate evidence for the scheme. This is a decision about the evidence needed, not planning approval: submitting a report doesn’t itself secure permission.

    Can an existing Transport Assessment be reused for a retail park extension?

    It may provide useful background, but review its relevance before using it for an extension application. Check when the data was collected, which development and operating assumptions it examined, and whether the current proposal changes uses, access or servicing. Also consider whether surrounding transport conditions have changed since the report was prepared. Earlier material can inform the new assessment, but shouldn’t be treated as automatically current or sufficient.

    How early should a developer commission a retail park transport assessment?

    Consider transport evidence while the proposal and access arrangements are still being developed. This gives the project team an opportunity to identify movement questions and evidence needs before the design is fixed for submission. The right point depends on the project programme and how much reliable information is available. Early coordination can clarify the assessment scope, but there’s no single lead time that suits every scheme.

    Can a Transport Assessment support a change of use at a Brent retail park?

    Yes, transport evidence can help explain the effects of a proposed change of use. A different use may alter visitor travel patterns, parking demand, servicing activity or access requirements, even if the site boundaries stay the same. The appropriate document and level of analysis depend on the proposed use, site circumstances and planning context. Focus on what changes operationally, rather than assuming every change needs the same report.

    Does a Transport Assessment guarantee planning permission for a retail park?

    No. A Transport Assessment provides technical evidence to help decision-makers understand a proposal’s transport implications; it doesn’t guarantee planning permission. The planning authority considers the application as a whole, including relevant planning matters beyond transport. A clear, evidence-based report can explain the assessment and its assumptions, but the decision rests with the authority after considering the submitted application and applicable planning context.

    Can a retail park Transport Assessment include walking, cycling, and public transport?

    Yes, these modes can be examined where they’re relevant to the proposal and site. The assessment should consider actual routes and connections serving the development, using verified information rather than broad assumptions about accessibility across Brent. The borough’s transport strategy includes accessibility and inclusion objectives, but check current local documents before citing policy wording or drawing conclusions about a particular site.

    What should I send a consultant before discussing a Brent retail park assessment?

    Useful starting information includes a short development description, available site and access plans, the proposed uses, known parking and servicing arrangements, and the current application stage. If drawings are under revision, indicate which version reflects the latest design. These materials aren’t a fixed checklist or a prerequisite for an initial conversation. They help frame the proposal and identify what further transport evidence may be relevant.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Swept Path Analysis: UK Delivery Vehicle Turning Circles

    Swept Path Analysis: UK Delivery Vehicle Turning Circles

    Will a delivery vehicle that can turn on paper actually fit through your proposed access? Swept path analysis for delivery vehicle turning circles answers a more site-specific question than turning-circle data alone: whether the selected vehicle can complete the required manoeuvre without its body encroaching on kerbs, buildings or pedestrian space.

    It’s easy to focus on a vehicle’s turning circle when planning access. That figure describes turning capability under stated conditions, but it doesn’t show the full area the vehicle occupies while entering, turning or leaving a site. This difference matters where roads are narrow, corners are tight, or space is shared with pedestrians and other vehicles.

    This article explains how turning-circle information differs from a swept path assessment, how to select a suitable design vehicle, and which manoeuvres and layout constraints to consider. It also explains how a project-specific assessment can present delivery access clearly for planning consideration. ML Traffic Engineers UK provides Swept Path Analysis tailored to the site and local planning context, drawing on senior traffic engineering experience to help identify access issues early.

    Key Takeaways

    • Use turning-circle data as a starting point, then assess the vehicle’s full movement against the site layout.
    • Consider vehicle length, width, wheelbase and steering characteristics when reviewing rear-wheel tracking and body swing at tight corners.
    • Select a design vehicle and manoeuvre that reflect the delivery movements the development needs to accommodate.
    • When reviewing a tracking drawing, check that the base plan, vehicle model, route and manoeuvre match the project brief.
    • Project-specific swept path analysis for delivery vehicle turning circles can help the design team identify access constraints in context.

    What does a delivery vehicle turning circle show, and what does it leave out?

    A turning circle describes the space a vehicle needs to change direction under stated test conditions. Swept path analysis models a vehicle’s movement through a particular manoeuvre on a drawn layout, showing where its wheels and body travel in relation to surrounding features. For delivery access, swept path analysis for delivery vehicle turning circles uses turning-circle information as a starting point, then tests whether the proposed route works in practice.

    A turning-circle figure describes vehicle geometry, not every constraint on a development site. Its meaning depends on the vehicle and how the figure is measured or presented. It may refer to a kerb-to-kerb turning circle, based on the path of the wheels, or a wall-to-wall circle, which accounts for the vehicle body. The figure alone doesn’t show whether a vehicle can negotiate a site entrance, avoid an obstruction or complete a turn without encroaching on adjacent space.

    For a visual introduction to vehicle movement and tracking, watch this educational video:

    What information does a turning-circle figure provide?

    A turning-circle measurement indicates how tightly a vehicle can turn under the conditions used to establish the measurement. It helps describe the vehicle’s turning capability, but it isn’t a drawing of a proposed access route. Two figures for the same vehicle can also describe different limits if one records the wheel path and the other includes the bodywork.

    That distinction matters in a constrained layout. A vehicle might have a turning circle that appears suitable, yet still need more room at the entrance because of its approach angle, a gate position or its direction of travel. Treat the figure as vehicle data to interpret, not proof that the access works.

    Why is a swept path different from a turning circle?

    Vehicle tracking plots movement across a specific plan, from an agreed starting point through the manoeuvre and, where relevant, out again. It can show the front wheels taking a wider line while the rear wheels cut closer to the inside of a turn. The body may also swing beyond the wheel paths, particularly at the front or rear, so checking wheel tracks alone can miss potential conflicts.

    The assessment depends on both the vehicle model and the site geometry. It can help reveal whether the tracked movement conflicts with kerbs, buildings, parking spaces or areas used by pedestrians. The AutoTrack Wikipedia page provides general background on vehicle tracking software and its use in transport design. For more detail on preparing and interpreting tracking drawings, see this practical AutoTURN swept path guide.

    Turning-circle data describes a vehicle’s turning capability; a site-specific swept path tests whether its complete movement fits the proposed layout. That is the key distinction when assessing delivery access.

    How delivery vehicle geometry shapes a turning manoeuvre

    A vehicle’s turning performance depends on several dimensions working together. Overall length, width, wheelbase and steering geometry affect how much room it needs and where its wheels and body travel during a turn. A delivery vehicle may enter comfortably but still struggle to turn within the site or leave without crossing a kerb or entering a pedestrian area.

    Assess the vehicle expected to serve the development, not a convenient substitute. A layout tested for a smaller van may not demonstrate that a longer or wider delivery vehicle can make the same movement. In swept path analysis for delivery vehicle turning circles, the chosen vehicle model and manoeuvre need to reflect the delivery operation the access is intended to accommodate.

    Which vehicle dimensions matter for delivery access?

    Overall length affects how much space a vehicle needs to clear an entrance and complete a turn. Width influences clearance alongside walls, parked vehicles and other boundaries. Wheelbase, the distance between the axles, affects how closely the rear wheels follow the front wheels around a corner. Steering geometry also shapes how sharply the vehicle can turn.

    These factors interact. For example, a longer vehicle negotiating a tight entrance may need a wider approach before turning in. Its front wheels can take a broad line while the rear wheels track closer to the inside edge. The body may also swing out, bringing a front or rear corner nearer to an obstacle than the wheel paths suggest.

    How do site constraints change the manoeuvre?

    Vehicle geometry is only one part of the assessment. The available access width, boundary positions and internal layout determine how the vehicle can use its turning capability. Test the movement as a sequence: approach, entry, travel through the site, turn and exit. A vehicle that can complete a turn in an open area may not manage the same movement when an entrance is narrow or the route bends around a building.

    On the drawing, identify features that could limit clearance or shape the driver’s route:

    • Kerbs and walls can restrict the inside of a turn or reduce the usable width of an access.
    • Parked vehicles can narrow a route and limit the space available to line up for a turn.
    • Pedestrian areas need consideration alongside the vehicle’s tracked route, particularly where the manoeuvre passes near footways or shared spaces.
    • Entrances and boundaries can affect the approach angle and the space needed for the vehicle to enter or leave.

    The relevant constraints depend on the site plan and the movement being tested. A vehicle’s steering capability can’t be assessed in isolation from the route available to use it.

    Turning performance depends on the vehicle and the layout together: change either one, and the space needed for the manoeuvre can change. A project-specific tracking assessment brings those factors into view, helping the design team review constrained access in context. For support with delivery access planning, explore ML Traffic Engineers UK transport planning services.

    Which delivery vehicle and turning scenario should the assessment test?

    The design vehicle should represent the delivery activity the development is intended to accommodate. A tracking drawing based on a vehicle that is smaller or easier to manoeuvre than the expected delivery vehicle may not answer the access question that matters. Match the vehicle model to the proposed use and specify the movement being tested.

    The table below summarises how broad vehicle categories can create different tracking demands. These are selection prompts, not fixed specifications: actual dimensions and manoeuvring characteristics depend on the vehicle chosen.

    Vehicle type Characteristics to consider Manoeuvre demands to assess
    Rigid delivery vehicle A single rigid vehicle body; length, width and steering characteristics vary by model. Entry alignment, turning within the site and clearance around the vehicle body.
    Articulated vehicle A tractor unit and trailer move in relation to each other, affecting the path through a turn. Approach space, articulation through corners, internal circulation and room to depart.
    Van or other project-relevant vehicle Vehicle size and configuration should reflect the servicing activity, rather than an assumed standard model. Access width, turning space and whether the vehicle can reach the intended loading or servicing area.

    How should the design vehicle reflect site use?

    Start with the development’s intended use and the delivery arrangements it needs to support. A site expecting routine stock deliveries may need a different design vehicle from one receiving occasional smaller consignments. State the basis for the choice, including the vehicle type and relevant assumptions, so the assessment can be understood in context. These assumptions describe the scenario tested; they aren’t universal requirements for every site.

    Where more than one vehicle type is relevant, assess the movements that matter to the proposal rather than assuming one model represents every delivery. Traffic engineering input can help relate the vehicle choice to the site layout and local planning context.

    Which manoeuvres should the drawing examine?

    Define the route as a sequence, from arrival to departure. Depending on the layout, this may include approach and entry, circulation within the site, access to a loading area shown on the plan, and the exit movement. If the vehicle needs to reverse, include that movement where it forms part of the proposed arrangement. Don’t imply the drawing tests reversing if it only shows a forward route.

    Make the drawing’s scope clear. Identify the vehicle model, starting position, direction of travel and movements included. For example, a plan showing entry and a turn towards a loading area doesn’t necessarily demonstrate that the vehicle can also leave the site. A well-scoped swept path analysis for delivery vehicle turning circles tests a defined vehicle against a defined access question.

    Choose the design vehicle to match the delivery activity, then test the manoeuvre the layout must accommodate. That keeps the assessment focused and makes its assumptions and limits clear to the project team.

    Swept Path Analysis: UK Delivery Vehicle Turning Circles

    How to review a delivery vehicle swept path drawing

    A swept path drawing is useful only if it tests the right vehicle on the right layout, using the movement the project needs to accommodate. Review it against the project brief and proposed site plan, not as a standalone graphic. The sequence below helps identify mismatches and potential conflicts before the drawing informs design or planning discussions.

    What should the drawing and project inputs show?

    Start with the base plan. It should represent the proposed access and internal arrangement being assessed, including the relevant boundaries and site features. If the layout has changed since the tracking was prepared, check whether the drawing still reflects the current proposal. A movement plotted against an earlier arrangement may not demonstrate access under the latest design.

    Then follow this review sequence:

    1. Confirm the base layout. Compare the entrance, internal route, turning area and relevant site features with the project plan. Look for differences that could affect usable space or the vehicle’s route.
    2. Identify the design vehicle. Check that the vehicle model or type matches the delivery activity described in the brief. If the vehicle is unclear, it’s difficult to relate the result to the intended use.
    3. Check the movement and direction. Trace the route from its starting point through the site. Confirm whether the drawing shows arrival, entry, circulation, access to the relevant area and departure, as required by the assessment brief.
    4. Read the assumptions and scope. Note any stated assumptions about the route or manoeuvre. Identify information that is missing or unclear, without assuming that every project or planning authority requires the same drawing format.
    5. Compare the result with the brief. Check that the vehicle, route and manoeuvre shown answer the access question the project set out to assess.

    This review makes the scope visible. A drawing that illustrates entry and turning, for example, doesn’t necessarily show how the vehicle leaves the site. The practical swept path analysis guide explains how tracking drawings can support planning applications.

    How can the drawing reveal a layout conflict?

    Follow the vehicle through each stage of the manoeuvre and look for overlap between its tracked path and fixed or potentially occupied areas. Check kerbs, buildings, site boundaries, parking spaces and pedestrian areas. Consider the full vehicle envelope represented in the drawing, not just the path of its wheels. A tight corner may appear clear at one stage while the body or rear tracking conflicts elsewhere on the turn.

    Check that the movement completes the stated task. Does it reach the intended access or loading area? Is the departure shown, and does the vehicle follow the route described in the brief? If the drawing tests only part of the journey, record that limit clearly.

    Describe any concern precisely: identify the manoeuvre, the location and the feature affected. For instance, note that the tracked vehicle overlaps a parking space while turning into the internal route. This gives the design team a clear point to consider when reviewing the layout, without presuming a particular design response.

    For a project-specific review of delivery access, see ML Traffic Engineers UK’s Swept Path Analysis service.

    When project-specific swept path analysis supports delivery access planning

    A delivery access question becomes specific as soon as a vehicle must negotiate a particular entrance, internal route or turning area. Project-specific swept path analysis tests the intended vehicle movement against the development layout, helping the design team see where space is constrained and what the drawing does, or doesn’t, demonstrate. This is especially useful where a tight access, nearby boundary or internal corner could affect the proposed route.

    The assessment relates to the vehicle, layout and manoeuvre being considered. It can help clarify whether a delivery vehicle can arrive, reach the intended area and depart using the route shown. The result gives the project team a defined movement to discuss and a clearer basis for reviewing the access arrangement.

    How does the analysis support a planning submission?

    A swept path drawing can communicate the vehicle and movement assessed by showing the tracked route in relation to the site plan. Clear scope helps readers understand which parts of the journey the drawing demonstrates and how the movement relates to the proposed layout. It can support consideration of delivery access as part of a wider planning submission where relevant to the project.

    Not every proposal needs the same supporting documents. Where a project also requires wider transport assessment, the delivery movement can be considered alongside other transport matters. The Transport Assessment London guide provides related context on transport planning for development proposals.

    What does project-specific traffic engineering input add?

    Project-specific input brings the actual vehicle, proposed layout and relevant planning context together. This matters when access is constrained or when the drawing needs to communicate a precise movement clearly. Local planning considerations can vary, so an assessment tailored to the project location helps the team present the proposed delivery route in context rather than relying on a generic turning assumption.

    ML Traffic Engineers UK provides Swept Path Analysis and transport planning documentation for development projects in Greater London, Manchester, Birmingham, the West Midlands, Liverpool, Surrey, East Sussex, West Sussex, Hampshire, Berkshire and Buckinghamshire. Every senior staff member has over 35 years of traffic engineering experience, supporting careful review of vehicle movements and site layouts. The primary keyword, swept path analysis for delivery vehicle turning circles, captures the distinction: turning-circle information informs the assessment, while project-specific tracking tests a defined manoeuvre against the site.

    Early assessment can make access constraints clearer while the layout is being considered. It gives the design team a practical opportunity to understand what the proposed movement shows and where further layout review may be useful, without implying a guaranteed planning outcome.

    For a project-specific assessment of delivery access, explore Swept Path Analysis with ML Traffic Engineers UK.

    Make delivery access part of the next design decision

    Use the access assessment as a live design reference, not a drawing that sits apart from evolving plans. As the site layout develops, keep the intended delivery vehicle and movement assumptions visible to the project team. If an entrance, boundary or internal arrangement changes, revisit the tracking so it still reflects the proposal being progressed. This keeps the purpose of swept path analysis for delivery vehicle turning circles clear through design development and planning consideration.

    A useful next step is to bring the access plan and delivery movement into the same conversation. That gives the team a practical basis for considering constraints early and deciding whether the layout needs further review. ML Traffic Engineers provides project-specific Swept Path Analysis, with assessments tailored to the local planning context and senior staff who each have over 35 years of traffic engineering experience.

    Discuss your delivery access assessment with ML Traffic Engineers and take the next step with a clearer basis for planning your site access.

    Frequently Asked Questions

    Is a delivery vehicle turning circle the same as swept path analysis?

    No. A turning circle describes a vehicle’s turning geometry under specified measurement conditions, while swept path analysis models its movement along a particular route. For a development access, the analysis relates the vehicle’s track to the site plan. A circle figure by itself can’t show whether the vehicle can complete the proposed route. When reviewing drawings, check what the stated turning figure measures before comparing it with the layout.

    Can a delivery vehicle turn within a site if its turning circle fits the access?

    Not necessarily. An access width or turning-circle comparison alone doesn’t establish that the whole manoeuvre is feasible. The outcome can also depend on the vehicle’s starting position, its angle of entry, the route through the site and nearby features such as a gate or parked cars. Assess the intended movement against the site plan, including the approach and departure, rather than relying on one dimension.

    How is a delivery vehicle swept path assessed?

    The assessment starts by defining the vehicle and the movement the project needs to examine. The vehicle is then tracked against the relevant site layout, and the plotted route is reviewed for potential conflicts with site features. For example, the brief might ask whether a delivery vehicle can enter and reach a servicing area. The drawing should identify the vehicle and movement assumptions so readers can understand the scope of the result.

    What information is needed for a delivery vehicle swept path analysis?

    Typically, the assessment needs a layout showing the access and relevant internal arrangement, the vehicle to be tested and a clear description of the manoeuvre. The project brief can help define whether the drawing should examine arrival, circulation, access to a loading area or departure. Changes to the plan or delivery assumptions can affect the assessment, so align the inputs with the current proposal rather than relying on an outdated layout.

    Does a turning-circle drawing prove that delivery access is suitable?

    No. A turning-circle drawing can indicate turning capability, but it doesn’t by itself demonstrate that the proposed site movement fits the available space. Suitability depends on the vehicle’s route and the layout features around it. A swept path drawing relates the movement to those features, giving the project team a clearer basis for reviewing access. It can inform planning consideration, but it doesn’t guarantee a planning decision.

    Which delivery vehicle should be used for swept path analysis?

    Choose a design vehicle that reflects the delivery activity the development is intended to accommodate. A site receiving routine larger deliveries may need a different assessment vehicle from one served by smaller vehicles; the relevant choice depends on the proposed use and servicing arrangements. Record the vehicle and assumptions clearly. ML Traffic Engineers provides project-specific Swept Path Analysis in Greater London, Manchester, Birmingham, the West Midlands, Liverpool, Surrey, East Sussex, West Sussex, Hampshire, Berkshire and Buckinghamshire.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Enfield Waste Facility Transport Assessment: 2026 Guide

    Enfield Waste Facility Transport Assessment: 2026 Guide

    A waste facility’s transport case is only as credible as its account of the vehicles it will generate. A transport assessment for a waste management facility in Enfield should explain how operational traffic will reach the site, enter and manoeuvre, and affect nearby roads and people walking or cycling. A generic report may miss the local planning context that shapes how those effects are assessed.

    It can be difficult to know what information to gather or how to describe day-to-day vehicle movements. This guide explains the transport questions a proposed Enfield waste facility may need to address, from vehicle activity and site access to local transport priorities. It also outlines how to scope a clear, site-specific planning submission in light of Enfield’s planning context and the shift towards vision-led transport planning.

    You’ll find practical pointers on preparing the evidence and working with an experienced transport planning consultancy. ML Traffic Engineers UK takes a hands-on approach to planning work, with senior staff who each have over 35 years of traffic engineering experience. The aim is a focused assessment that reflects the proposal and its setting, rather than a template that leaves key questions unanswered.

    Key Takeaways

    • Assess the waste operation’s actual activity, access arrangements and vehicle movements, rather than relying on the site’s land-use label alone.
    • A transport assessment for a waste management facility in Enfield should address site access, vehicle routing and potential effects on the surrounding network.
    • Choose between a Transport Statement and a Transport Assessment based on the proposal’s scale, likely transport effects and applicable planning context.
    • Build a clear assessment brief by setting out the proposal, site activity, vehicle details, access and relevant routes.
    • ML Traffic Engineers UK prepares tailored Transport Assessments for planning submissions, with a hands-on approach and senior staff who each have over 35 years of traffic engineering experience.

    Why an Enfield waste management facility needs a site-specific transport assessment

    A Transport Assessment (TA) is technical evidence used to examine a development’s transport effects and access arrangements. For a proposed waste site, it should connect the operation as designed with the way vehicles and people will travel to and from it. A transport assessment for a waste management facility in Enfield should therefore reflect the specific proposal, not rely on a standard account of what waste facilities generally do.

    The land-use label alone cannot establish the likely transport effects. The assessment needs to reflect the proposed activities, how the site will operate and how it relates to the surrounding road network. This evidence helps planning decision-makers understand the transport implications and consider them alongside other planning matters. It supports a decision, but does not guarantee planning permission or determine the outcome on its own.

    What makes a waste facility’s transport profile different?

    Vehicle types, operating patterns and site activity shape the questions an assessment needs to answer. A proposal might involve vehicles bringing waste, taking materials away, or both. The relevant movements and access considerations depend on the facility’s operations, so the report should not assume a standard vehicle mix, frequency or schedule.

    Keep different trip sources distinct. Operational vehicle movements are not the same as journeys by staff, visitors or other users. Separating them helps explain what activity is expected, when it may occur and which parts of the transport case relate to site operations. The assessment can then focus on relevant access arrangements and effects instead of presenting a single unexplained total.

    How Enfield’s planning context informs the assessment

    Enfield’s planning context includes topics such as waste management, transport infrastructure, roads, walking and cycling, public transport and freight. These themes help frame the questions a proposal may need to address, but they do not automatically determine the scope or findings of every TA. Identify the current policy wording and guidance that apply to the proposal and its location.

    The North London Waste Plan and Enfield’s transport and planning documents may be relevant, alongside London-wide policy. The applicable highway authority or transport bodies can also depend on the site and affected routes. Avoid treating a policy reference as a fixed conclusion. Identify the relevant documents, explain their connection to the proposal and make the transport analysis specific to the site.

    Edmonton EcoPark provides local context because it demonstrates that waste infrastructure is part of Enfield’s planning environment. It is not a template for another site. Different access points, nearby routes, surrounding land uses and operating arrangements can raise different assessment questions. A credible report explains those distinctions rather than borrowing assumptions from a separate project.

    For an overview of the evidence and structure involved, see this Transport Assessment guide for London planning applications. The central principle is to establish the applicable planning context, then assess the actual proposal and its transport effects.

    What a transport assessment for an Enfield waste facility should examine

    A Transport Assessment evaluates transport effects arising from a specific development. For a proposed waste site, its scope should connect the operation to the access arrangements, vehicle movements, routes and surrounding network that could be affected. It should explain how its conclusions follow from the proposal’s details and location, rather than rely on assumed or generic activity.

    Start with the operational information available, then identify which transport questions that evidence can answer. The appropriate level of analysis depends on the scale and nature of the proposal, the site setting, relevant routes and the planning context. Enfield’s waste and transport policies provide context, but the assessment should show how relevant policy topics relate to this particular operation, not simply list them.

    Vehicle movements, access and routing

    Vehicle types and operating patterns help determine which movements to assess. The report should distinguish vehicles associated with the facility’s operations from other relevant trips, and use project information to describe how each group would access the site. Avoid unsupported vehicle totals, trip rates or operating hours. Where details are not settled, identify assumptions clearly so readers can understand the basis of the assessment.

    Consider access alongside the routes vehicles are expected to use and the network effects that may follow. The appropriate level of route analysis depends on the proposal and its location. For example, a constrained site entrance may prompt different questions from a site with straightforward access. The assessment should show the actual circumstances rather than assume a problem or its absence.

    Network users and local transport context

    Assess the road network alongside people walking and cycling and public transport, where relevant to the site and likely effects. Freight is part of the picture too: describe the proposal’s vehicle movements and routing considerations without assuming a particular route or transport authority requirement. Enfield’s wider priorities and applicable waste planning context can help frame these questions. Check current policy wording before making a policy-specific claim.

    The Scottish Government’s Scottish Government Transport Assessment Guidance offers a reference point for assessment principles, but it is Scottish guidance, not Enfield policy. For broader London planning context, the Transport Assessment guide for London planning applications provides related background. Neither replaces checking the current requirements relevant to the proposal and location.

    A useful scope makes the evidence traceable: readers can see which project details informed the assessment, what effects were considered and why the analysis is proportionate. ML Traffic Engineers UK prepares site-specific Transport Assessments for planning submissions. Explore ML Traffic’s transport planning support for information about shaping an assessment around the proposal and its local context.

    Transport Assessment or Transport Statement: choosing the right scope for Enfield

    A Transport Statement (TS) is generally a concise document for explaining a proposal’s transport implications where the issues are limited. A Transport Assessment (TA) provides broader analysis when the proposal raises more extensive or interconnected transport questions. The right choice depends on the development and applicable planning context, not simply on whether the proposal involves waste.

    For Enfield, consider the proposal’s actual activity, site setting, likely effects and relevant planning guidance before settling the scope. A small change to an existing operation may raise different questions from a new facility with more complex access and network effects. Neither document type should leave relevant issues unanswered.

    Consideration Transport Statement Transport Assessment
    Scope Concise account of relevant transport effects and access issues. Broader analysis of multiple transport effects and their relationship.
    Proposal complexity May suit a proposal with a more limited, clearly defined transport scope. May be appropriate where the proposal or location raises several connected questions.
    Questions answered What are the main transport implications, and can they be clearly explained with focused evidence? What range of effects needs examination, and how do they interact across access and the surrounding network?

    When a concise Transport Statement may be proportionate

    A TS may be suitable where the proposal’s transport effects are limited and can be addressed clearly without wider analysis. Judge suitability against the specific site, access and operational changes, along with Enfield’s current planning context. A shorter document is not a way to avoid relevant evidence. It should still explain the issues that matter and the basis for its conclusions.

    For example, a contained change to an established site may call for a narrower scope than a new operation with several access or network questions. This comparison is illustrative, not a universal rule. The evidence required depends on the proposal and the planning authority’s expectations.

    When a broader Transport Assessment may be appropriate

    A broader TA may be warranted when operational activity, access, routing and surrounding network effects raise multiple questions that need to be examined together. The proposal’s location and current local planning context also matter. The assessment should be proportionate to those circumstances, rather than selected automatically based on the waste-related label.

    Defining scope early helps align the document with the decision-makers’ transport questions. If you’re comparing document formats, ML Traffic’s Transport Statement guide for London explains the distinction in more detail. The essential test is whether the chosen document gives a clear, site-specific account of the relevant effects.

    Enfield Waste Facility Transport Assessment: 2026 Guide

    How to prepare an Enfield waste facility transport assessment brief

    A clear brief gives the transport planner a reliable starting point and keeps the assessment focused on the proposal. Assemble what is known, distinguish confirmed details from assumptions and use the information to identify which transport questions need answers.

    1. Define the proposal. Summarise the site location, proposed use and planned activities. Explain whether the proposal is new, an extension or a change to an existing operation.
    2. Describe how the site will function. Set out the operational process and any known patterns of activity. Separate operational movements from staff, visitor and other relevant trips.
    3. Record access and vehicle information. Provide available details about site access and vehicle types. Include operating patterns or movement estimates where known, and label provisional information rather than filling gaps with standard assumptions.
    4. Identify relevant routes and surroundings. Show the routes considered for access and note nearby road connections or transport features that may be relevant. The scope should follow the site’s actual location, not a presumed route.
    5. Agree the assessment questions. Connect each potential transport effect with a question the evidence should answer, then establish a proportionate scope in the current planning context.

    Information to assemble before scoping

    Useful starting material may include a site plan, access layout, proposal description and available operational details. Bring together information on vehicle types, expected activity patterns, staff or visitor travel and surrounding routes. These are practical inputs, not a universal list of mandatory documents. If an item is unavailable or still being developed, say so clearly so the assessment can distinguish known facts from working assumptions.

    Land use can also shape which transport considerations are relevant. ML Traffic’s project types for transport planning show how different development contexts inform transport work. For a waste proposal, describe the particular operation rather than relying on a generic category.

    Turning project information into a clear assessment scope

    Translate the brief into specific questions. If access is a concern, define what needs to be examined about the entrance and the vehicles using it. If routes are relevant, identify which connections and potential network effects the assessment should consider. If walking, cycling or public transport may be affected, explain why those users matter in this location.

    Review current Enfield planning and transport documents when identifying relevant local policy topics. Confirm the wording and applicability rather than assuming a policy automatically determines the evidence required. The final scope should make the link between each project detail, the question it raises and the analysis proposed.

    ML Traffic Engineers UK takes a hands-on approach to project-specific Transport Assessments. Discuss your Enfield transport assessment brief with ML Traffic to develop a scope grounded in the proposal and its planning context.

    Commission an Enfield waste management facility Transport Assessment

    ML Traffic Engineers UK prepares Transport Assessments for planning submissions, tailoring each document to the proposal and its local planning context. A transport assessment for a waste management facility in Enfield needs to reflect the site’s operational details and the transport questions raised by its location. Project-specific analysis is essential; a standard template cannot take its place.

    Each senior member of the ML Traffic team has over 35 years of traffic engineering experience. The consultancy takes a hands-on approach, using available project information to develop a clear assessment scope and report. This expertise supports a well-evidenced planning submission, but no Transport Assessment can guarantee a planning decision.

    What an experienced transport planning consultancy contributes

    Good assessment work starts by understanding the proposal, not by assuming every development presents the same transport issues. The site layout, access, intended activity and relevant surrounding routes help shape the scope. Local authority context matters too: current planning policies and guidance can influence which questions the assessment should address and how the evidence is presented.

    ML Traffic tailors assessments to local planning contexts, including differences between local authorities. This keeps technical reporting relevant to the application rather than relying on generic wording. The purpose is to explain the transport evidence clearly so decision-makers can consider it alongside the wider planning case, not to predict or promise the outcome.

    To understand how this work fits with the consultancy’s wider planning support, see ML Traffic’s transport planning work. The assessment itself remains focused on the specific proposal and the issues its evidence needs to resolve.

    Discuss the project and agree the next step

    To begin a useful discussion, bring together a concise description of the proposed facility, its Enfield location, any available site or access plans, known operational and vehicle details, and the transport questions already identified. Distinguish confirmed project information from assumptions or details still being developed. This gives the assessment scope a clear starting point.

    ML Traffic can use those details to discuss a suitable Transport Assessment approach for the planning submission. A well-defined scope relates the evidence to the project information and its planning requirements.

    Share your Enfield proposal and its transport planning needs through ML Traffic’s contact route to discuss the next step with an experienced team.

    Move your Enfield proposal forward with a clear next step

    Use the transport assessment as a working part of the planning process. If the facility layout, access arrangements or operational details change, revisit the transport evidence so it continues to reflect the proposal being submitted. This keeps the assessment connected to the project as it develops, rather than leaving decision-makers to interpret outdated assumptions.

    A transport assessment for a waste management facility in Enfield needs sound technical judgement and a clear understanding of local planning context. ML Traffic Engineers UK brings a hands-on approach, with senior staff who each have over 35 years of traffic engineering experience. The team tailors assessments to the proposal and relevant authority context while supporting the planning process without promising an approval outcome.

    ML Traffic’s transport planning work covers Greater London, Manchester, Birmingham, the West Midlands, Liverpool, Surrey, East Sussex, West Sussex, Hampshire, Berkshire and Buckinghamshire. For your Enfield proposal, share the site details and transport questions you’re working through. Discuss your Enfield waste facility project with ML Traffic to take the next step towards a clear, project-specific planning submission.

    Frequently Asked Questions

    Does every waste management facility in Enfield need a Transport Assessment?

    No. The document required depends on the proposal’s likely transport effects and the applicable planning context. A development with limited effects may be addressed through a Transport Statement, while a proposal likely to have significant effects may require a Transport Assessment. Strategic schemes referable to the Mayor of London also require a Transport Assessment. Compare current Enfield guidance and thresholds with the site and proposal rather than assuming one report type applies to every waste facility.

    What transport information should I prepare for an Enfield waste facility planning application?

    Prepare a clear description of the proposed operation, the site location and access, and any available layout plans. Include known vehicle types, expected operational patterns, and information about staff or visitor activity. Note which details are settled and which remain provisional. If you have traffic or parking survey results, include their context and collection basis. This helps the assessment distinguish observed conditions from forecasts and project assumptions.

    How are waste facility vehicle movements considered in a Transport Assessment?

    The assessment considers movements in relation to the proposed operation, including vehicle type and purpose and how vehicles would use site access and relevant routes. It should distinguish operational trips from staff, visitor or other traffic where relevant. For example, vehicles delivering waste and vehicles removing processed material may represent different activities. The analysis should explain its evidence and assumptions rather than rely on a standard movement profile for all waste sites.

    Can a Transport Statement be suitable for a waste management proposal?

    Yes. A Transport Statement can be appropriate if the proposal’s transport effects are limited and can be explained with concise evidence. The fact that a proposal relates to waste does not, by itself, settle the report scope. Consider the specific activity, site circumstances and applicable planning guidance. A TS still needs to address relevant transport questions; it should not be used to avoid analysis that the proposal’s effects call for.

    Which Enfield planning policies are relevant to a waste facility’s transport assessment?

    Potentially relevant documents include the North London Waste Plan, Enfield’s Local Plan and transport strategy, the London Plan and the Mayor’s Transport Strategy, alongside national planning policy. Which policies apply depends on the proposal and site. Check the current adopted wording and relevant guidance before citing a policy or drawing a conclusion. Establish whether the site’s location or routes engage another highway authority or transport body.

    Does a Transport Assessment guarantee planning permission for a waste management facility?

    No. A Transport Assessment provides evidence about transport matters for decision-makers to consider as part of the wider planning application. It can explain the proposal’s effects and the basis for the transport analysis, but it does not determine every planning issue or guarantee a favourable decision. Other planning considerations and the application as a whole remain relevant. Treat the report as a technical contribution to the submission, not a promise of consent.

    When should transport assessment scope be considered during a waste facility proposal?

    Consider scope early, while the proposal and access arrangements can still be refined. Early planning helps identify what information is available, which transport questions need analysis and whether the proposed report type fits the likely effects. Where appropriate, scope discussions can involve Enfield’s planning or highways teams and TfL, depending on the site and routes. Revisit the approach if the operation, layout or access changes materially before submission.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Swept Path Analysis for Delivery Vans: A Practical UK Guide

    Swept Path Analysis for Delivery Vans: A Practical UK Guide

    What if a delivery van can clear the entrance but can’t reach the loading area or turn around safely? Swept path analysis for delivery vans tests the complete movement through a site, not just one turn at the entrance. A layout that looks workable on plan may still create conflicts with parked cars, buildings, kerbs or other site features.

    Before fixing the layout, check whether the van expected to serve the development can enter, manoeuvre, reach its servicing position and leave. A generic vehicle template may not match the van’s dimensions or steering characteristics, so the choice of vehicle can affect what the assessment shows.

    This guide explains what van swept path drawings demonstrate, which information supports a useful assessment, and how to review the findings. Project-specific vehicle tracking can help identify layout conflicts early and provide technical evidence for design decisions and, where relevant, a planning submission. ML Traffic Engineers UK undertakes swept path analysis to assess vehicle manoeuvrability and access feasibility for development projects.

    Key Takeaways

    • Swept path analysis for delivery vans can assess approach, entry, on-site manoeuvring, loading access and exit as one movement.
    • Vehicle dimensions and site features, including wheelbase, overhangs, kerbs and turning space, all affect whether a manoeuvre works.
    • Choose vehicle data that reflects the site’s delivery arrangements and known fleet details, rather than defaulting to a generic template.
    • Prepare a current, scaled site plan showing access and servicing arrangements, alongside the vehicle and movements to be assessed.
    • Project-specific findings from ML Traffic Engineers can inform layout decisions and relevant planning documentation.

    What does swept path analysis for delivery vans show?

    Swept path analysis for delivery vans is a vehicle movement assessment showing the space a selected van needs to approach, enter, manoeuvre within, reach a loading position and exit a site. It tests the complete movement against the proposed layout, rather than showing only whether the van can turn at the entrance.

    This matters for everyday servicing. A van might pass through a gateway but still be unable to line up with a loading area, clear a kerb or leave without reversing into a constrained space.

    This video offers a visual introduction to how swept path analysis supports site design:

    What does a delivery van swept path drawing include?

    A swept path drawing places the selected vehicle’s outline and movement envelope over a site layout. The outline represents the van’s body at a particular point in the manoeuvre. The swept envelope shows the area occupied as the vehicle moves, including the outer space its body needs to clear.

    The plan can show the route in relation to the entrance, kerbs, parking bays, buildings, loading areas and other fixed constraints. An overlap with a feature, or a tight clearance, flags a potential spatial conflict for review. This helps the design team assess whether the van can follow the intended route and reach its servicing position.

    Turning geometry matters. Wheelbase, steering characteristics and the relationship between the front and rear wheels affect the path a vehicle follows. Ackermann steering geometry describes a principle behind how wheels are angled through a turn, helping explain why a van’s path is not simply a fixed-width line.

    Why assess delivery access before a layout is finalised?

    Early review can expose a tight entrance, obstructed turning area or loading position that does not work with the proposed arrangement. Finding these constraints while the layout is still being developed gives the design team time to consider changes before plans are fixed and helps reduce the risk of late revisions.

    Movement evidence also helps assess servicing practicality: whether the delivery van can reach the intended area and complete the planned manoeuvre within the available space. Consider the drawing alongside the site’s operating arrangements and other relevant design information. It supports a layout review, but does not guarantee planning approval or demonstrate that every aspect of future site operation will be suitable.

    How do vehicle dimensions and site geometry shape van tracking?

    A van’s swept envelope depends on its length, width, wheelbase, steering geometry and body overhangs, as well as the shape of the route. Longer vehicles may need more room to turn, while front or rear overhang can bring parts of the body closer to kerbs or other constraints. The Manual for Streets recognises swept path analysis as a tool for assessing vehicle movement in street design.

    In practical terms, vehicle dimensions and steering characteristics combine with entrance alignment, kerb positions, internal road width and turning space to define the swept envelope. These factors determine whether the van can travel between the site access and servicing point without conflicting with fixed or temporary obstructions.

    Which delivery-van details matter to the assessment?

    Where possible, use the dimensions and configuration of the proposed or expected delivery vehicle. Relevant details include overall length and width, wheelbase, steering characteristics and overhangs. Distinguish confirmed fleet information from assumptions where vehicle details are not yet available. This makes the basis of the tracking clear and shows where a generic template may differ from the van used in practice.

    A template can help with an early design check, but it represents a particular vehicle model and set of dimensions. It may not match every van in a delivery fleet or reflect different operating arrangements. For a project-specific assessment, select a vehicle that represents the expected servicing requirement as closely as the available information allows.

    Which site features can restrict a van manoeuvre?

    Assess the whole route, not just the tightest turn. The gate opening, access alignment, internal corners and available turning area all influence the path. Kerbs, walls, columns, parked vehicles and the edges of loading areas can restrict usable space. A layout may allow the van to enter but leave too little room to reach the loading position or depart along the planned route.

    Include gradients and level changes in the site information where they affect access or circulation. A plan-based tracking drawing can show horizontal movement, but it is not a complete assessment of every vertical or operational condition. Clear assumptions help keep the findings relevant to the proposed arrangement.

    For development layouts, project-specific swept path analysis can help identify vehicle and layout conflicts while design changes are still being considered.

    How should you compare van templates and assess drawing reliability?

    A swept path drawing is only as useful as the vehicle and operating assumptions behind it. A generic van template can help test an early layout, but it may not represent the vehicle that will make deliveries to the site. For swept path analysis for delivery vans, match the selected vehicle as closely as possible to the expected servicing arrangement and make any assumptions clear.

    When is a standard van template a reasonable starting point?

    If the delivery fleet is not known during early design, a standard template can help assess whether the access and turning area appear workable. Treat it as an initial test, not proof that every van can use the site. The suitable vehicle depends on the development, delivery frequency, servicing arrangements and reliable information about the fleet. Where delivery arrangements or vehicle details are known, use them to guide the choice of vehicle for assessment.

    The table shows how to interpret key inputs and the limits of assumptions:

    Input What it represents Implication of an assumption
    Vehicle template A defined set of dimensions and steering characteristics A generic model may differ from the vans used for deliveries
    Fleet information Known vehicle types expected to serve the site Without it, the assessment may need to use a representative vehicle
    Delivery arrangements How often and where vehicles are expected to service the site Unclear operating details can affect which vehicle and movements are assessed
    Site layout The access, circulation route and servicing position shown on the plan Out-of-date or incomplete plans can omit constraints affecting the movement

    What makes a swept path drawing easier to assess?

    Check that the drawing identifies the assessed vehicle and makes the movement direction clear. The site plan should show the relevant access, boundaries, kerbs, buildings, parking and servicing area. Confirm that the route connects the entrance to the intended loading position and includes the manoeuvre needed to leave, rather than stopping at the turning arc.

    Trace the complete movement and look for overlaps or tight clearances around fixed features and parked vehicles. A clear drawing makes its assumptions and constraints visible, so reviewers can understand what the result does and does not demonstrate. If the layout or delivery arrangements change, review the assessment against the updated information.

    Swept Path Analysis for Delivery Vans: A Practical UK Guide

    What information should you prepare for a delivery-van swept path analysis?

    A useful swept path analysis for delivery vans starts with a clear vehicle, a current site layout and an agreed movement to assess. Separate confirmed project information from design assumptions and details still being developed. That makes the drawing easier to review and highlights which changes could affect the result.

    Which drawings and vehicle information help the assessment?

    Prepare the information in sequence, from the delivery vehicle to the site plan:

    1. Identify the vehicle. Provide dimensions or a clear description of the expected van. If fleet details are still being developed, identify the representative vehicle and its assumptions.
    2. Describe the servicing arrangement. State the intended delivery or loading location, expected approach and exit route, and any relevant operating arrangements.
    3. Provide a current, scaled plan. Show the proposed layout, site entrance, access geometry, internal route, servicing area and relevant boundaries. Include dimensions and levels where available and relevant to the assessment.
    4. Mark constraints and uncertainties. Identify features such as kerbs, parking, buildings, gates or other fixed obstructions. Note which elements are confirmed, proposed or still subject to design development.
    5. Set out the movement to test. Clarify where the vehicle approaches from, how it enters, the manoeuvre needed to reach the servicing position, and how it leaves.

    Use a scaled drawing that reflects the current design, not an outdated layout. Inaccurate or incomplete access details make it harder to judge how the tracked movement relates to the site.

    How should you review the movement and drawing?

    Trace the vehicle from the public highway towards the entrance, then follow it through the site to the servicing position and back towards the exit. Check the full manoeuvre, not only the turning arc. Look at how the path relates to boundaries, kerbs, buildings, parking and other constraints along the route.

    Record assumptions about vehicle dimensions or operating arrangements, along with potential conflicts and design changes that need further review. If the access or servicing layout changes, revisit the drawing against the revised plan. Planning and highway authority expectations can vary by project, so establish the requirements that apply to the specific proposal rather than treating one drawing format as universally mandatory.

    For project-specific vehicle movement evidence, see ML Traffic Engineers’ swept path analysis service.

    How can ML Traffic Engineers UK support delivery-van swept path analysis?

    ML Traffic Engineers provides project-specific swept path analysis to assess vehicle manoeuvrability and access feasibility. For a development, this means testing how the selected delivery van moves through the proposed layout using the project information and operating assumptions available. The findings can highlight design questions before plans are finalised, helping inform access decisions with a clear assessment rather than appearance alone.

    Useful inputs include the current site or design plan, the known or proposed delivery vehicle, the intended loading location and the access movements to be assessed. Where details are still developing, state that clearly. This defines the basis of the assessment and shows which assumptions may need revisiting as the design progresses.

    How does analysis fit into development planning?

    Van access evidence can inform the site layout and, where relevant, support planning documentation such as a Transport Statement or Transport Assessment. The appropriate documentation depends on the development and its planning context. Swept path analysis is one part of the evidence, not a guarantee of planning approval. Read this practical guide to swept path analysis for more on how vehicle tracking can support planning applications.

    What is a practical next step for your site?

    Bring together the proposed layout, available delivery-van dimensions or fleet details, and a concise description of the access objective. For example, say whether the main question is entry from the highway, circulation to a loading point or the route back out. This gives the assessment a clear focus and helps define what the tracking needs to demonstrate.

    ML Traffic Engineers supports development projects in Greater London, Manchester, Birmingham, the West Midlands, Liverpool, Surrey, East Sussex, West Sussex, Hampshire, Berkshire and Buckinghamshire. Early review can bring potential conflicts into view while the layout is being developed. Discuss delivery-van access for your project.

    Plan delivery access with confidence

    A delivery van must be able to complete the whole site movement, not simply clear the entrance. Swept path analysis for delivery vans tests the selected vehicle against the proposed layout, helping reveal whether its approach, manoeuvre, loading access and exit work together. The assessment is only as relevant as its inputs, so use current drawings and distinguish known vehicle details from assumptions.

    Early vehicle tracking can help identify access or layout questions before plans are finalised. It can also provide technical evidence to inform development decisions and, where relevant, wider planning documentation. ML Traffic Engineers supports development projects with project-specific swept path analysis to assess vehicle manoeuvrability and access feasibility.

    Share your proposed layout, available vehicle information and access objectives with ML Traffic Engineers to discuss the next step for your project. Discuss delivery-van access for your project.

    Frequently Asked Questions

    What is swept path analysis for delivery vans?

    Swept path analysis for delivery vans is a drawing-based assessment of the space a selected van occupies as it moves through a site. It can show the approach, entrance, internal manoeuvres, access to a servicing position and exit against the proposed layout. Its usefulness depends on suitable vehicle information and an accurate site plan. It provides evidence about the assessed movement, but does not guarantee planning approval.

    Do I need swept path analysis for a delivery van on my development site?

    Whether it is needed depends on the proposal, access arrangement, servicing activity and expectations of the relevant planning or highway authority. There is no universal requirement for every development. A drawing can help demonstrate access feasibility where a layout is constrained or the van’s route needs explaining. Establish the project-specific evidence requirements through the planning process, and use vehicle tracking to clarify design questions early.

    Which delivery van should be used in a swept path analysis?

    Use a vehicle that reflects the anticipated delivery operation when reliable fleet or vehicle details are available. Relevant information includes the van’s dimensions and steering geometry. If the exact vehicle is not known, a suitable standard template can support early layout testing, provided the assumption is clearly stated. No single generic van necessarily represents every fleet or delivery arrangement, so choose the assessed vehicle in light of the project’s servicing needs.

    Can a delivery van turn around on my site?

    That depends on the selected van, access geometry, internal layout and any obstructions. A swept path assessment can model the intended movement against the site plan and highlight potential conflicts. Review the whole route, from the entrance to the servicing position and back towards the exit, rather than checking only an isolated turn. The finding must be based on the project’s vehicle information, layout and movement assumptions.

    What information is needed for a delivery-van swept path analysis?

    Provide a current, scaled site or design plan showing entrance and internal layout dimensions, the intended servicing location, and relevant obstructions or circulation constraints. Include available delivery-vehicle details, such as dimensions, and describe the route and manoeuvre to assess. Separate confirmed information from assumptions or details still being developed. Requirements can vary between projects and authorities across Greater London, Manchester, Birmingham, the West Midlands, Liverpool, Surrey, East Sussex, West Sussex, Hampshire, Berkshire and Buckinghamshire.

    Does swept path analysis guarantee planning approval for delivery access?

    No. A swept path drawing is evidence about whether the assessed vehicle can move through the proposed layout. It does not guarantee planning permission or determine the outcome of an application, which may consider wider transport matters and relevant local requirements. Treat the drawing as one part of project-specific technical evidence. Clear vehicle, layout and operating assumptions help reviewers understand what the assessment demonstrates and where its scope ends.

    What is the difference between swept path analysis and vehicle tracking?

    The terms often describe closely related assessments and drawings of vehicle movement. Swept path analysis focuses on the space a vehicle occupies while moving; vehicle tracking commonly refers to modelling or illustrating that movement. Terminology can vary between projects, so look beyond the label. Check which vehicle is represented, what assumptions apply, and whether the drawing shows the complete route, including access, manoeuvring, servicing and exit.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

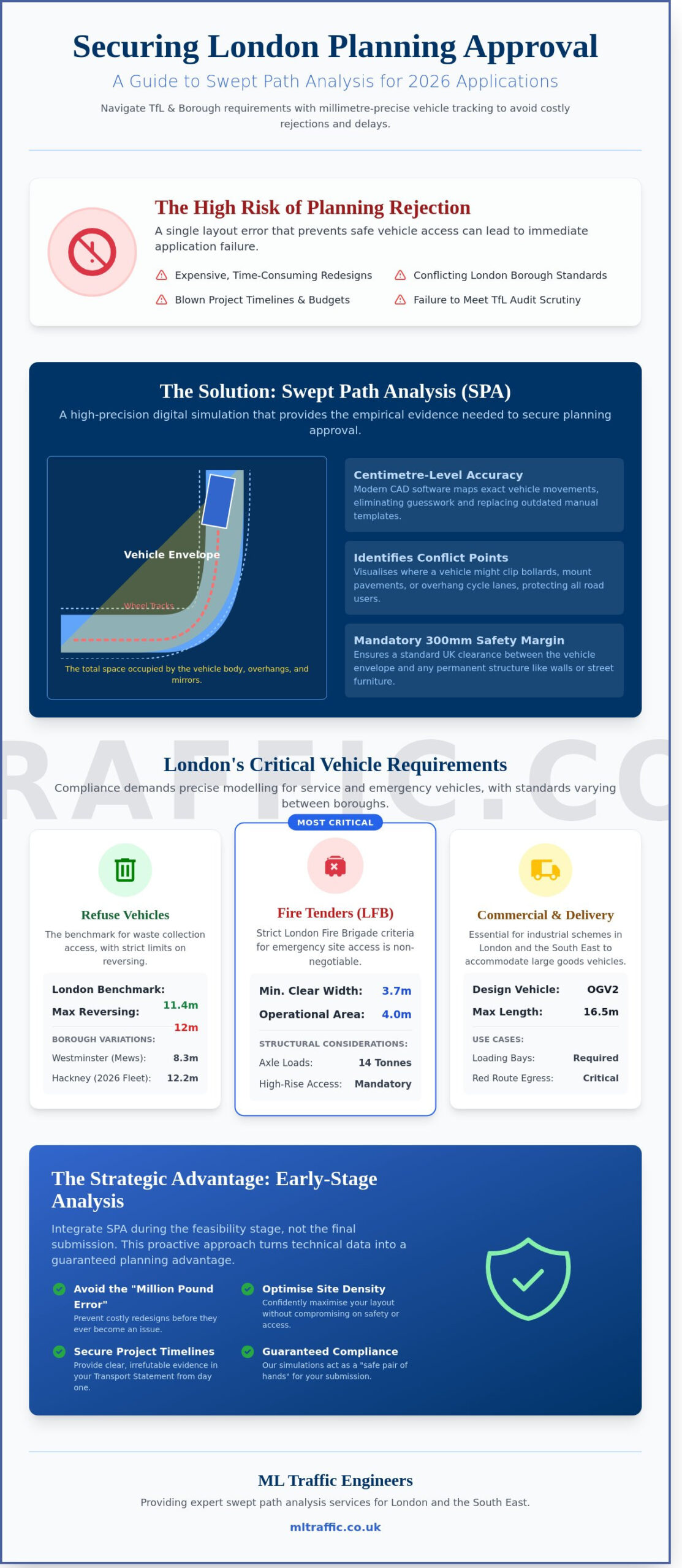

  • Swept Path Analysis: 2026 Developer’s Planning Guide

    Swept Path Analysis: 2026 Developer’s Planning Guide

    Over 60% of UK planning appeals involving highway objections are lost because of layout geometry disputes or a lack of verified servicing evidence. It’s a common frustration for developers when a project stalls because a local authority isn’t satisfied that an 11.2-metre refuse vehicle can safely navigate the site. Utilizing professional swept path analysis for site access eliminates this uncertainty, ensuring you don’t have to guess which vehicle templates to use or risk costly redesigns once the project is already underway.

    This 2026 guide explains how professional modelling provides the technical certainty required to satisfy Paragraph 115(b) of the NPPF. We’ll cover the transition to AutoTURN 2026, mandatory safety buffers, and how to integrate precise tracking into your Transport Statement. By the end, you’ll know exactly how to secure a council-approved design that protects both your budget and public safety. Our approach focuses on empirical evidence to mitigate safety risks and prevent the “unacceptable impact” thresholds that lead to planning refusals.

    Key Takeaways

    • Learn how professional swept path analysis for site access provides the empirical evidence needed to satisfy NPPF requirements and prevent costly planning refusals.
    • Understand why Local Planning Authorities mandate forward-gear entry and exit for all servicing vehicles to maintain highway safety on classified roads.
    • Identify the exact technical dimensions for fire tenders and 11.2-metre refuse vehicles required to validate your site’s emergency and waste management access.
    • Explore how advanced AutoTURN 2026 modelling resolves complex design challenges and visibility splay requirements in constrained urban environments.
    • Discover the process for integrating technical SPA reports into comprehensive Transport Statements to ensure a streamlined council approval process.

    Understanding Swept Path Analysis (SPA) for UK Site Access

    Swept path analysis for site access is the digital simulation of vehicle movements within a proposed development layout. In 2026, the industry has moved beyond manual tracking templates toward the precision of AutoTURN 2026 software. This technology calculates the exact vehicle turning radius and off-tracking dynamics to ensure that a site design functions in the real world. For developers, this analysis serves as a critical feasibility check that prevents fundamental design flaws from reaching the planning committee. It’s not just a technical drawing; it’s a functional necessity for modern infrastructure planning.

    To better understand how these simulations are conducted, watch this helpful overview of the technical process:

    What is Swept Path Analysis in Planning?

    Professional path modelling identifies the “envelope” of a vehicle, which includes both the wheel tracks and the body path. Understanding the difference is vital because the body of a refuse vehicle or fire tender often extends far beyond its wheels during a turn. This “overhang” can strike boundary walls or street furniture if not properly accounted for, while “cut-in” affects how a vehicle clears internal corners. Swept path analysis for site access is a mandatory requirement for proving site feasibility to local authorities across England. By simulating these movements digitally, we provide clear evidence that a site can safely accommodate the specific design vehicles required by the council.

    Why Site Access is the Primary Focus

    The junction between a private development and the public highway is the most scrutinized element of any planning application. National policy and local highway standards generally dictate that all servicing vehicles, such as refuse freighters and emergency tenders, must enter and leave a site in a forward gear when connecting to a classified road. Reversing onto a busy highway creates unacceptable safety risks that lead to immediate application refusal. Using technical modelling allows us to justify access designs that might otherwise appear too constrained. It provides the empirical data needed to support your Transport Statement. If you’re managing a project in a high-pressure environment, our Swept Path Analysis Services in London ensure your site access design meets the rigorous standards set by local borough officers.

    Why Local Planning Authorities Demand SPA for Site Access

    Local Planning Authorities (LPAs) prioritize highway safety and the efficient movement of traffic above all else. They rely heavily on the Manual for Streets guidance to evaluate if a development layout is fit for purpose. Professional swept path analysis for site access has become the standard method for proving that a design works without relying on outdated, over-engineered road widths. This approach supports the creation of tighter, pedestrian-friendly environments that prioritize vulnerable road users while still accommodating essential service vehicles.

    The requirement for forward gear entry and exit is non-negotiable on classified roads. LPAs won’t accept designs where heavy goods vehicles or refuse trucks must reverse onto the public highway. SPA provides the technical proof that these maneuvers can occur safely within the site boundary. By simulating these turns, developers can avoid oversized junctions that encourage higher vehicle speeds, creating a safer environment for everyone. It’s about precision rather than just adding more asphalt.

    Statutory Requirements for Emergency and Service Vehicles

    Compliance with Building Regulations Approved Document B5 is a legal necessity for fire service access. This mandates specific turning circles and road widths, such as a minimum 16.8-metre kerb-to-kerb turning circle for pumping appliances. Additionally, British Standard BS 5906:2005 and most local highway standards state that refuse collection vehicles shouldn’t be required to reverse more than 12 metres. Failing to provide SPA evidence during the pre-application stage often results in immediate registration delays or outright refusal. If you need to verify your layout, our team can provide a technical swept path assessment to ensure compliance from day one.

    Meeting National and Local Design Standards

    While national guidance provides a framework, individual English boroughs often have specific requirements for vehicle templates. For instance, many London authorities demand tracking for an 11.2-metre or 11.35-metre refuse collection vehicle rather than a standard HGV. Professional modelling ensures your design reflects these local nuances. This data is essential for a robust Transport Statement London Guide, where clear evidence of site accessibility is a primary validation requirement. By integrating swept path analysis for site access early, you simplify the path to council approval and avoid costly design changes late in the project lifecycle.

    Key Vehicle Templates Used in Site Access Analysis

    Selecting the correct design vehicle is a high-stakes decision that dictates the viability of your entire site layout. Local Planning Authorities (LPAs) don’t just look for generic vehicle movements; they require simulations based on specific, high-load templates that reflect the actual machinery used by local councils and emergency services. Using the wrong template during swept path analysis for site access is a primary driver of planning delays and expensive late-stage design revisions. Our technical team utilizes the latest AutoTURN libraries to ensure every simulation aligns with the planning practice guidance on transport assessments provided by the government.

    Modelling Emergency Access

    The fire tender is the non-negotiable template for every residential development in England. To comply with Building Regulations, you must prove that a fire appliance can reach within 45 metres of every point within a dwelling, measured along the route of the hose. Failure to demonstrate this maneuverability often results in a statutory objection from the Fire Authority. The standard UK fire tender template is 8.0m long by 2.5m wide, requiring a minimum kerb-to-kerb turning circle of 16.8 metres. We model these paths with a 500mm safety buffer to vertical obstructions, ensuring the vehicle’s body envelope doesn’t strike walls or overhanging structures during an emergency response.

    Service and Delivery Vehicles

    Refuse Collection Vehicles (RCVs) present the most significant geometric challenge due to their size and weight. While many developers assume a standard HGV template is sufficient, most UK councils demand tracking for a 26-tonne, 3-axle RCV, typically modeled as an 11.2-metre or 12.0-metre vehicle. We also differentiate between “Fixed Axle” and “Steered Axle” configurations. A steered rear axle allows for a tighter turning radius, which can be critical for securing approval on constrained urban sites. Beyond refuse, commercial developments require modelling for:

    • Large Goods Vehicles (LGVs): Essential for retail delivery bay simulations.
    • Pantechnicons: Used for residential removal tracking.
    • Custom Vans: Modelling 7.4-metre Mercedes-Benz Sprinters for high-density parcel delivery zones.

    Accurate modelling ensures that delivery bays remain accessible without forcing vehicles to block the public highway or pedestrian footways. By proving these vehicles can enter and exit in forward gear, we provide the empirical evidence needed to satisfy highway officers and secure your planning consent.

    Overcoming Common Site Access Challenges with Technical Modelling

    Designing for tight urban environments requires more than just standard templates. It requires an engineering interpretation of how vehicles interact with physical constraints. Urban constraints in London often present sites that look inaccessible on a standard OS map, but professional swept path analysis for site access turns these logistical puzzles into viable developments. By simulating exact vehicle envelopes, we prove that even the tightest entrances can function safely without compromising heritage assets or neighboring land. This level of precision is essential for satisfying the rigorous validation checklists of local highway authorities.

    Mountable kerbs and overrun areas serve as strategic tools in these constrained settings. They allow larger vehicles, like a 26-tonne refuse freighter, to periodically utilize extra space while maintaining a narrower, pedestrian-friendly carriageway for daily use. We also conduct multi-vehicle simulations to verify that a resident’s car can safely pass while a delivery truck enters the site. This prevents the bottlenecks and safety concerns that frequently lead to planning refusals. It’s about demonstrating that the site works under real-world stress, not just in an empty simulation.

    Navigating Tight Urban Constraints

    In sensitive areas, balancing heritage preservation with modern highway safety is a constant struggle. We use SPA to justify narrow access roads that traditional, over-engineered highway standards might otherwise reject. For a recent mews development, we demonstrated that a fire tender could navigate a restricted entry arch by utilizing precise AutoTURN simulations. This evidence-based approach removes the guesswork and provides a reassuring level of detail for council engineers who are often risk-averse when dealing with non-standard road widths. It shows that safety and character can coexist through smart design.

    Visibility Splays and Safety Margins

    Visibility splays are the sightlines required for drivers to see and be seen when exiting a site. We integrate these ‘X’ and ‘Y’ distances directly with the swept path drawing to ensure the vehicle’s path doesn’t dangerously encroach on the opposite lane or third-party land. Safety buffers are non-negotiable here. We maintain a 300mm margin to horizontal kerb lines and a 500mm clearance to vertical obstructions like lamp posts, boundary walls, or trees. This precision ensures that your design doesn’t just work on paper but survives the scrutiny of a Section 278 technical audit. If you’re facing a difficult access issue, you can get a technical swept path assessment for your site to clear the way for approval.

    Swept Path Analysis: 2026 Developer's Planning Guide

    Securing Planning Approval with Professional SPA Reports

    A standalone CAD drawing is often insufficient for a successful planning submission because it lacks the necessary context for highway officers. While a simulation visually demonstrates vehicle movement, planning officers require a narrative that explains the underlying methodology and design assumptions. A professional report interprets the swept path analysis for site access, justifying the choice of vehicle templates and confirming that all safety buffers meet local authority expectations. This technical note acts as a bridge, translating complex AutoTURN data into a format that a non-technical case officer can confidently approve without requesting further technical clarification.

    Providing this level of detail upfront significantly reduces the risk of ‘Regulation 25’ requests or other formal requests for further information. These delays occur when the Highway Authority feels the evidence is incomplete or ambiguous. By presenting a comprehensive package that includes annotated tracking, visibility splay integration, and clear clearance envelopes, you demonstrate a commitment to safety and regulatory compliance. This transparency speeds up the consultation period and ensures your project moves through the planning system without the friction of late-stage design objections or costly redesigns during the technical audit phase.

    Integrating SPA into Transport Documentation

    Site feasibility is best proven through the integration of SPA into your Transport Statement or Assessment. This documentation provides the empirical evidence that your site can be serviced safely and efficiently, even in high-pressure urban environments. Professional modelling allows highway officers to quickly validate your design against national standards like the NPPF. When you include these simulations as part of a wider strategy, you provide a robust defense against potential highway-based refusals. Our integrated reporting approach ensures that your technical evidence is aligned with your planning goals. For more on navigating these requirements, refer to our Transport Assessment Success Guide.

    Why Choose ML Traffic Engineers UK for Your Site Access Analysis?

    ML Traffic Engineers UK has provided specialist support to developers across England since 2014. We understand the intricate regional regulations of various local authorities, allowing us to act as your dependable expert partner throughout the planning lifecycle. Our team prioritizes precision and adherence to standards, ensuring every report is council-ready from the first submission. We balance technical authority with a client-focused approach, aiming to maximize your developable plot area while maintaining strict safety compliance. We take immense pride in our role as guardians of public and worker safety through precise engineering.

    We offer an all-encompassing, fully-managed service that covers everything from initial parking surveys to final transport assessments. Our rapid response capabilities and expert use of AutoTURN modelling ensure that your project stays on track, even in a fast-moving regulatory environment. By choosing a partner that understands both the engineering and the planning policy, you secure a site access design that is safe, compliant, and ready for execution. We manage the full project technical requirements so you can focus on the development itself.

    Accelerate Your Planning Approval with Expert Technical Modelling

    Professional swept path analysis for site access is the empirical backbone of a successful planning application. It transforms theoretical site designs into verified, functional layouts that satisfy both highway officers and emergency services. By moving beyond static geometry to dynamic AutoTURN simulations, you eliminate the regulatory pressure that causes project delays and ensure your development is safe for all road users from the very first submission.

    ML Traffic Engineers UK has served as a specialist partner for developers across England since 2014. We provide the council-ready technical reporting necessary to navigate intricate regional standards with absolute precision. Our commitment to accuracy and rapid response ensures your infrastructure maintenance or development works proceed without the logistical friction of inadequate access evidence. We don’t just provide drawings; we deliver the technical authority required for immediate planning success.

    Request a Swept Path Analysis Quote for Your Site to secure a fully-managed technical solution for your project. We’re ready to provide the professional integrity and engineering expertise your development requires to move forward with confidence and clarity.

    Frequently Asked Questions

    What is the difference between swept path analysis and a tracking diagram?

    Swept path analysis is the digital simulation process used to calculate how a vehicle moves through a space, accounting for steering geometry and off-tracking. A tracking diagram is the visual CAD output of that analysis. While the terms are often used interchangeably in planning applications, the analysis involves the technical calculation of the vehicle’s body and wheel “envelopes,” while the diagram serves as the evidence submitted for council approval.

    Is swept path analysis a legal requirement for UK planning applications?

    Swept path analysis for site access is a mandatory validation requirement for most developments under the National Planning Policy Framework (NPPF). Paragraph 115(b) requires developers to demonstrate safe and suitable access for all users. Local Planning Authorities (LPAs) will rarely register or approve an application involving new junctions or internal roads without empirical evidence that refuse and emergency vehicles can maneuver safely within the site boundary.

    Which vehicle templates should be used for a standard residential development?

    Every residential scheme must model a standard UK fire tender, typically 8.0 metres in length, to comply with Building Regulations. You must also include the local authority’s specific Refuse Collection Vehicle (RCV), which is usually an 11.2-metre or 12-metre 3-axle freighter. Commercial elements might require a 16.5-metre articulated HGV or a 7.4-metre delivery van template to ensure the internal layout remains functional for all expected servicing and delivery needs.

    Can swept path analysis help reduce the required width of a new access road?

    Yes, professional modelling allows for a “vision-led” design approach rather than relying on rigid, over-engineered highway standards. By proving a vehicle can safely navigate a narrower carriageway using precise digital simulations, you can reduce the amount of asphalt and increase developable land. This approach aligns with Manual for Streets guidance, which encourages tighter, pedestrian-friendly environments that still accommodate essential service vehicle movements without encouraging excessive vehicle speeds.

    How much does a professional swept path analysis cost for a small site?

    The cost of a swept path analysis for site access depends on the complexity of the junction and the number of vehicle templates required by the local highway officer. Fees are typically based on the technical time needed to conduct the AutoTURN simulations and produce a supporting technical report. For a project-specific estimate, developers should request a bespoke quote from a specialist traffic engineering consultancy to ensure all statutory requirements are met.

    What software do traffic engineers use for swept path analysis in 2026?

    In 2026, the industry standard is AutoTURN 2026, which provides the most comprehensive library of UK-specific manufacturer and standard design vehicles. Many engineers also utilize Autodesk Vehicle Tracking within the Civil 3D environment for integrated site design. These tools provide the high-precision simulations required to satisfy highway authorities and ensure that vertical clearance and ground clearance issues, such as ramp gradients, are identified before the construction phase begins.

    What happens if my site access fails the swept path analysis?

    If a simulation shows a vehicle striking a boundary or failing to make a turn, the site layout must be adjusted. Solutions often include increasing junction radii, implementing mountable kerbs, or redesigning internal turning heads to accommodate the vehicle’s “cut-in.” We work with developers to find the most efficient design balance, ensuring the site remains safe and compliant without losing valuable plot space to oversized turning circles or excessively wide roads.

    Do I need SPA for a simple dropped kerb application?

    A standard residential dropped kerb for a single driveway usually doesn’t require a full swept path analysis unless there are specific safety concerns or visibility constraints. However, if the dropped kerb serves a commercial site or a multi-unit development, the Highway Authority will likely demand SPA evidence. They must be certain that larger vehicles won’t be forced to reverse onto the public highway when entering or exiting the property due to inadequate turning space.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Swept Path Analysis for Temporary Event Access: The 2026 Developer’s Checklist

    Swept Path Analysis for Temporary Event Access: The 2026 Developer’s Checklist

    Imagine the “bump-in” phase of your 2026 festival coming to a grinding halt because a 19-metre articulated vehicle cannot clear the temporary ticket booths. It’s a scenario that keeps developers awake at night. A planning application is frequently rejected by the local highway authority because of “insufficient access data.” Conducting a professional swept path analysis for temporary event access is the only way to prove your site can handle everything from heavy stage flatbeds to heavy rigid vehicles. Without this technical validation, you’re not just risking logistical delays. You’re risking the entire event’s viability.

    We understand the pressure of meeting strict safety benchmarks while navigating the intricate requirements of UK planning permissions. You’re likely worried about the exact dimensions of catering trucks or whether a fire tender has the 29.2-metre turning circle diameter required for specialist aerial appliances. This guide provides a definitive 2026 checklist to ensure your access plan is robust and compliant. We will examine how to model multi-vehicle layers in AutoTURN, secure necessary local authority approvals, and maintain the 4.0-metre unobstructed corridors essential for emergency services.

    Key Takeaways

    • Understand why swept path analysis for temporary event access is the essential technical requirement for securing local highway authority approval and preventing costly logistical gridlock.
    • Learn how to identify the most demanding vehicle templates for 2026, including the 29.2-metre turning circle necessary for specialist aerial firefighting appliances.
    • Discover the methods for integrating temporary infrastructure, such as trackway and security fencing, into your simulations to identify potential “pinch points” before they cause delays.
    • Access a comprehensive compliance checklist that ensures every phase of your event, from the initial setup to the final site clearance, meets UK safety standards.
    • Find out how professional engineering reports and AutoTURN modeling provide the precise data needed to satisfy council highway officers and protect public safety.

    Why Swept Path Analysis is Critical for Temporary Event Access

    Planning a temporary event in London involves managing high-intensity traffic within restricted urban footprints. Unlike permanent developments where access is static, events introduce a surge of heavy logistics vehicles over a short period. Swept path analysis for temporary event access provides the empirical data needed to prove these vehicles can enter, manoeuvre, and exit safely without causing gridlock. SPA is a computer-aided simulation of vehicle wheel and body paths. This technical validation is vital for high-stakes environments where even a few centimetres of error can halt operations.

    To better understand how this technology works in a professional context, watch this demonstration of modern vehicle tracking software:

    By modelling the vehicle turning radius and off-tracking of specific fleet profiles, engineers identify “pinch points” before any equipment arrives on-site. This foresight prevents logistical failures that could delay a festival opening or a major corporate activation. We use these simulations to verify that 19-metre articulated trailers can successfully navigate tight city corners without striking permanent street furniture or temporary barriers.

    The Legal and Regulatory Necessity

    Local highway authorities in the UK increasingly demand technical proof of vehicle manoeuvrability for any event encroaching on public road reserves. A professional autoturn swept path analysis is often a mandatory component of a comprehensive Transport Statement. Without this data, developers face a high risk of planning permission refusal. Council officers prioritising road safety won’t approve an access plan based on guesswork; they require georeferenced simulations that adhere to current UK highway standards. This documentation provides the reassurance that your event layout respects the structural limits of the surrounding infrastructure.

    Operational Safety and Risk Mitigation

    Safety is the non-negotiable foundation of event planning. Precise analysis ensures that fire tenders and other emergency vehicles maintain 4.0-metre unobstructed travel widths at all times, even during the peak bump-in phase. In 2026, many authorities require specific modelling for aerial firefighting appliances, which demand a 29.2-metre turning circle diameter due to front ladder overhang. Swept path analysis for temporary event access also protects the site’s physical integrity. By accurately predicting body overhangs, we prevent damage to existing kerbs, street furniture, and expensive temporary trackway. This level of precision reduces the logistical and regulatory pressure on your team, ensuring a seamless transition from planning to execution.

    Determining Critical Vehicle Templates for Event Access

    Selecting the correct vehicle template is the foundation of a valid simulation. You cannot rely on generic models for high-stakes event planning. Every site has a “worst-case scenario” vehicle. This is usually the largest or least manoeuvrable unit required for the bump-in phase. Identifying this vehicle early prevents the need for costly site re-designs later. Precise swept path analysis for temporary event access must account for these variations to ensure total site safety and regulatory compliance.

    Accuracy depends on using specific AutoTURN vehicle templates that reflect the real-world fleet. This is especially true for specialized equipment like mobile stages, outside broadcast (OB) vans, or heavy catering units. These vehicles often possess unique wheelbases or significant body overhangs that standard software libraries might miss. We ensure every simulation uses georeferenced data to match the exact dimensions of the equipment arriving on your site.

    The Heavy Goods Vehicle (HGV) Profile

    Most large-scale UK events require 16.5-metre articulated trucks for stage deliveries and infrastructure transport. We model these using rear-steer parameters to navigate tight urban entrances and narrow site gates. For smaller venues or park-based activations, the 12-metre rigid vehicle is often the critical template. Adhering to Manual for Streets swept path guidance ensures these simulations meet the geometric design principles expected by council highway officers. We also simulate 19.0-metre articulated vehicles for major stage production deliveries to guarantee they can turn without striking permanent infrastructure.

    Emergency and Service Vehicle Access

    Compliance is not just about logistics. You must maintain access for a standard UK fire tender at all times. This typically requires a 3.7-metre clear width between kerbs and a 4.0-metre unobstructed roadway width within the event space. We also model ambulance access to designated first-aid points and triage areas. These routes must remain clear even when the site is at full capacity. If you’re unsure which templates your project requires, our team provides expert swept path analysis services to help you navigate these technical requirements.

    Service vehicle routes are equally important. Waste management and sanitation trucks need dedicated paths to operate during the event lifecycle. By modelling the specific vehicles that will actually visit your site, we reduce the risk of planning rejection and operational failure. This proactive approach ensures your event stays on schedule and meets all safety benchmarks set by the local authority.

    Assessing Temporary Infrastructure and Urban Constraints

    Temporary event sites often exist in challenging environments where permanent infrastructure meets transient barriers. Success depends on accurately modelling how these elements interact. Swept path analysis for temporary event access is essential for evaluating the impact of temporary gates, fencing, and security bollards on vehicle movement. We also have to account for fixed urban constraints such as low bridges, narrow junctions, and on-street parking that can complicate ingress. These constraints aren’t just inconveniences; they are potential points of failure that can lead to planning rejection. Reviewing our ML Traffic project types can help you identify specific site challenges common to London event spaces, from stadium concerts to park festivals.

    Temporary Trackway and Turning Circles

    When events take place on grass or soft ground, developers rely on temporary trackway to support heavy loads. We calculate the minimum width of trackway required for safe HGV passage, ensuring the vehicle’s body and wheels remain on the mats at all times. Turning radii on these surfaces are often tighter than on tarmac because of the physical limitations of the matting systems. Trackway must extend beyond the swept path to prevent ground rutting. This extra margin ensures that even minor steering deviations don’t lead to vehicles becoming bogged down, which would cause immediate logistical delays. We recommend a safety envelope of at least 300mm to 500mm beyond the calculated wheel path to account for these variables.

    Junction Manoeuvrability and Public Highway Impact

    The transition from a narrow public road to an event site is often the most critical phase where swept path analysis for temporary event access proves its value. Long vehicles require a significant “swing” to enter without striking kerbs, street furniture, or temporary fencing. This movement often creates a conflict between event traffic and existing pedestrian flows. Following HSE event transport and vehicle access guidelines is vital for maintaining safe separation between people and plant. We use SPA to determine if temporary Traffic Regulation Orders (TTROs) are necessary to suspend parking or close lanes temporarily. This technical proof is what council highway officers look for when approving your traffic management plan. By identifying these constraints during the design phase, we help you avoid last-minute alterations that could compromise site safety. Our simulations provide the reassurance that your event won’t cause dangerous congestion on the public highway.

    The 2026 Checklist for Event Swept Path Analysis Compliance

    Achieving approval for a temporary event requires a systematic approach to technical documentation. A comprehensive checklist ensures that your swept path analysis for temporary event access meets the rigorous standards of UK highway authorities. This process moves beyond simple site plans. It provides georeferenced proof that your logistics strategy is viable within the physical constraints of the venue. Following these five steps will help you secure council approval while minimising the risk of operational gridlock during the build phase.

    • Step 1: Define the site boundary and temporary access points. Identify every ingress and egress point, including those reserved strictly for emergency vehicles or staff.
    • Step 2: Compile a vehicle list for all phases. You must account for different fleets used during the build-out, the live event, and the final break-down. This includes 16.5m articulated trucks and smaller 6.5m ambulances.
    • Step 3: Secure accurate mapping. Use a topographical survey or high-resolution OS mapping to ensure the simulation reacts to real-world kerb lines and permanent street furniture.
    • Step 4: Execute SPA simulations. Model all critical movements, including entry from the public highway, internal turns around staging, and the final exit path.
    • Step 5: Review safety margins. We recommend a minimum 0.5m (500mm) safety clearance between the vehicle’s swept envelope and any rigid structures or pedestrian fencing.

    Technical Drawing Requirements

    A valid technical drawing must provide more than just a line on a map. It needs to show the full wheel path and the body overhang to account for “swing” during tight turns. Every simulation should include directional arrows and clearly stated vehicle speed assumptions, which are typically capped at 5-10mph for event sites. We layer these simulations directly over your temporary Event Management Plan (EMP) layout. This ensures that the placement of stages, kiosks, and toilets doesn’t interfere with essential vehicle tracks. If you need assistance preparing these technical documents, you can order a professional swept path analysis to ensure your drawings satisfy council highway officers.

    Common Pitfalls to Cross-Check

    Many developers focus only on the “bump-in” and forget to model the outbound journey. Long vehicles often require different steering angles when exiting a site, especially if they must merge into moving traffic. You should also check vertical clearances. Festival arches, festoon lighting, and low-hanging branches must sit at least 4.5m above the roadway to accommodate HGVs—an essential coordination point when working with audio, visual, and lighting production teams like livewireav.co.nz. Finally, ensure your model includes temporary site offices and generator placements. These “small” additions often create unexpected pinch points that can derail your entire transport strategy if not modelled during the initial swept path analysis for temporary event access.

    Swept Path Analysis for Temporary Event Access: The 2026 Developer’s Checklist

    Securing Approval: How ML Traffic Engineers Supports Your Event

    Navigating the final stages of a planning application requires more than just automated software outputs. While digital tools provide a foundation, council highway officers require professional engineering judgment to validate the results. Our team at ML Traffic Engineers UK provides the technical expertise to interpret complex simulations and translate them into actionable reports. We ensure your swept path analysis for temporary event access stands up to rigorous scrutiny from local authorities across the UK. Since 2014, we’ve specialised in navigating these regulatory hurdles with precise data and authoritative engineering sign-offs.

    We understand that event timelines are often compressed. A delay in receiving an access report can halt the entire production schedule. ML Traffic Engineers UK prioritises rapid turnaround times to meet these time-sensitive demands without compromising on accuracy. Whether you’re planning a one-off festival or a recurring stadium event, we integrate SPA results into a wider Transport Statement for London or UK-wide planning project to provide a comprehensive view of your site’s operational feasibility.

    From Initial Survey to Final Report

    Our process begins with a detailed assessment of your proposed layout. We use current traffic data and high-resolution mapping to justify every temporary access solution. ML Traffic Engineers UK doesn’t just identify problems; we collaborate with event planners to optimise site layouts for better vehicle flow. For organizers budgeting broader operational support alongside technical site planning, it is equally valuable to explore Project-Based Event Management and Coordination Fees to ensure every phase of delivery remains fully resourced. This proactive approach often uncovers opportunities to increase usable event space while maintaining safety margins. By providing a professional “stamp of authority” on every submission, we reduce the likelihood of revisions and accelerate the path to approval. This level of support ensures that your technical documentation is robust, defensible, and ready for council review.

    Our Commitment to Event Safety

    Safety remains our primary driver. We ensure every temporary layout prioritises the protection of both the public and site workers. The team at ML Traffic Engineers UK understands the intricate regional regulations in England, allowing us to manage the technical complexities so you don’t have to. We take immense pride in our role as guardians of site safety. We ensure that even the most ambitious event designs remain compliant and functional throughout the build, live, and break-down phases. If you’re ready to secure your site’s access plan with a reliable partner, contact ML Traffic Engineers UK for a professional SPA quote today.

    Securing Your 2026 Event Access

    Successful event delivery starts with a technical foundation that leaves no room for error. We’ve seen how precise vehicle templates and the careful modelling of temporary infrastructure are vital for navigating narrow urban junctions. A robust swept path analysis for temporary event access doesn’t just prevent logistical gridlock. It provides the empirical evidence required to secure essential planning permissions from local highway authorities. By addressing pinch points during the design phase, you protect your production schedule and ensure public safety.

    Precision is a functional necessity in the high-stakes world of event logistics. As planning approval specialists since 2014, ML Traffic Engineers delivers the expert AutoTURN analysis you need to satisfy council requirements. We provide a rapid UK-wide service that balances technical authority with a client-focused approach, reducing the regulatory pressure on your team. Don’t leave your site access to chance. Get a Professional Swept Path Analysis for Your Event to guarantee a compliant, safe, and efficient build-out. We’re ready to help you turn your event vision into a logistical success.

    Frequently Asked Questions

    What is swept path analysis for temporary event access?

    Swept path analysis for temporary event access is a technical simulation that calculates the space required by vehicles as they manoeuvre through a site. Unlike permanent developments, this analysis factors in transient obstacles like water-filled barriers, scaffolding, and temporary fencing. It tracks both the wheel paths and the outer body swing to ensure that heavy logistics trucks don’t strike permanent street furniture or temporary infrastructure during the build phase.

    Do I really need SPA for a three-day festival?

    You almost certainly need it if your event involves large vehicles on public roads or restricted sites. Highway authorities in England prioritise road safety and traffic flow regardless of the event’s duration. Even a short festival requires proof that emergency services can access the site and that delivery HGVs won’t cause gridlock. Failing to provide this technical data often leads to an immediate refusal of your planning application.

    Which vehicle templates are most important for event planning?

    The most critical templates include the 16.5m articulated vehicle for stage deliveries and the 12m rigid HGV for general logistics. For safety compliance, you must also model emergency vehicles. In 2026, many councils require specific simulations for aerial firefighting appliances, which have a larger turning circle diameter than standard fire pumpers. Modelling these “worst-case” vehicles ensures your site layout is robust enough for any operational requirement.

    Can I perform my own swept path analysis for a council application?

    While software is available, council highway officers typically reject drawings that lack professional engineering sign-off. A valid analysis requires expert knowledge of vehicle kinematics and local authority standards. Professional reports from specialists like ML Traffic Engineers provide the “stamp of authority” needed for approval. We use industry-standard AutoTURN software to ensure every simulation is georeferenced and accurate to the millimetre, reducing the risk of costly revisions.

    How much does a swept path analysis cost for a temporary event?

    The cost depends on the number of vehicle templates required and the complexity of the site layout. A single entrance simulation for one vehicle type is less intensive than modelling a full festival site with multiple emergency access routes. We provide tailored quotes based on the specific needs of your project. Investing in professional analysis early prevents expensive logistical failures and site re-designs that often occur when access issues aren’t identified.

    What happens if the SPA shows a vehicle cannot make a turn?

    If a simulation identifies a “pinch point” where a vehicle cannot turn, you must adjust the site layout before equipment arrives. This might involve moving temporary fencing, re-positioning ticket booths, or widening trackway sections. In some urban environments, we might suggest applying for a temporary Traffic Regulation Order to suspend on-street parking. Identifying these failures digitally allows you to solve access problems without delaying the event’s build-out schedule.

    Does the council require SPA for emergency fire tender access?

    Yes, fire tender access is a mandatory requirement for almost all UK event permits. You must demonstrate that a standard fire appliance can reach all parts of the site and manoeuvre safely. This usually requires a 3.7m clear width and specific turning radii. Without a verified swept path analysis for temporary event access, the council cannot guarantee public safety, which is a primary reason for the rejection of event management plans.

    How long does it take to get an SPA report for an event?

    We understand the urgency of event planning and typically deliver technical reports within a few working days. The exact timeline depends on the quality of the site plans provided and the number of vehicle movements to be modelled. For time-sensitive applications, we offer rapid turnaround services to ensure your submission meets council deadlines. Our goal is to reduce regulatory pressure by delivering precise, compliant reports as quickly as possible.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Swept Path Analysis London: The 2026 Developer’s Guide to Planning Success

    Swept Path Analysis London: The 2026 Developer’s Guide to Planning Success

    A single failed technical audit in a London borough can delay your development project by 24 weeks. In the high-stakes environment of 2026 planning, a precise swept path analysis london is no longer just a technical checkbox; it’s a strategic necessity for securing approval. You’re likely facing the pressure of maximizing site density while trying to satisfy conflicting requirements for refuse collection and fire safety. It’s a difficult balance to strike when every square meter counts and London’s footprints remain notoriously tight.

    We understand that navigating the intricate regional regulations of 32 different boroughs feels like a moving target. This guide provides the technical clarity you need to master current standards and TfL expectations for a successful submission. You’ll learn how to leverage high-precision digital modeling to optimize your site layout for both safety and density. We examine the specific vehicle dimensions required across the capital, from Westminster’s compact trucks to Hackney’s larger fleet, ensuring your submission is robust enough to withstand the most rigorous highway authority scrutiny.

    Key Takeaways

    • Understand how computer-aided simulations model precise vehicle movements to ensure site designs accommodate critical technical parameters like steering lock and wheelbase.
    • Learn why industry-standard AutoTurn software and OS MasterMap data are the required foundations for high-precision digital modeling in the capital.
    • Identify the specific project triggers that make a swept path analysis london mandatory for residential, commercial, or mixed-use planning submissions.
    • Discover how to avoid common design failures like the “refuse vehicle trap” by managing over-hang and over-run in constrained urban environments.
    • Position your development for success by aligning with borough-specific vehicle dimensions to reduce regulatory risk and prevent costly planning delays.

    Understanding Swept Path Analysis for London Developments

    Following the August 2026 NPPF update, precision isn’t optional in the capital’s planning process. London planning departments demand technical proof that vehicles can navigate proposed site layouts without compromising safety or existing infrastructure. A swept path analysis london provides this proof through high-fidelity computer simulations that visualize the movement of vehicles through a specific space. It’s a critical tool for demonstrating that your site is both feasible and safe before any ground is broken.

    To better understand how these simulations function in a planning context, watch this technical overview:

    What is a Swept Path Analysis (SPA)?

    SPA is the digital verification of a vehicle’s physical footprint during movement. It uses advanced vehicle swept path analysis software to model how specific vehicles, such as refuse trucks, delivery vans, or fire engines, interact with the built environment. These simulations are far more than simple turning circles; they’re dynamic models that account for speed, steering rates, and physical constraints.

    The simulation integrates four critical technical components to ensure accuracy:

    • Vehicle Width and Length: The static dimensions of the vehicle’s chassis and bodywork.
    • Wheelbase: The distance between axles, which fundamentally dictates the turning radius and pivot point.
    • Steering Lock: The maximum angle the wheels can turn, which limits the vehicle’s agility in tight corners.
    • Front and Rear Overhang: The portion of the vehicle that extends beyond the wheels, which is often the cause of collisions with curbs or walls.

    Engineers distinguish between the “vehicle body” path and the “swept area.” While the wheels follow a specific track, the body of the vehicle often “sweeps” over a wider area during a turn. Failing to account for this overhang is a primary cause of planning rejection in 2026. Professional autoturn swept path analysis ensures these margins of error are eliminated during the design phase.

    Why London Boroughs Require SPA Drawings

    London’s narrow Victorian road networks weren’t built for modern logistics or large emergency vehicles. Tight corners and restricted access points mean that what looks feasible on a standard 2D drawing often fails in a real-world scenario. Planning officers now view 2D static drawings as insufficient because they don’t account for the dynamic movement of heavy goods vehicles (HGVs) or the specific requirements of borough-specific refuse fleets.

    By requiring a comprehensive swept path analysis london, boroughs ensure that new developments don’t create “dead-end” traps where drivers are forced into dangerous multi-point turns. This alignment with London’s “Vision Zero” strategy prioritizes pedestrian and cyclist safety by ensuring all vehicle maneuvers are predictable and contained within designated zones. It’s a functional necessity for protecting public safety and ensuring that essential services, like waste collection and fire response, can operate without obstruction.

    Technical Standards: Vehicle Templates and Software Requirements

    Precision in a swept path analysis london depends entirely on the quality of the underlying data. We utilize OS MasterMap as the non-negotiable foundation for every analysis. This ensures the digital site boundary aligns perfectly with the physical reality of the London streetscape. Without this baseline, even the most advanced simulation fails to provide the reliable results required by highway authorities. Accuracy isn’t just a goal; it’s a functional necessity for project approval.

    Transport engineers distinguish between design vehicles and checking vehicles. Design vehicles are used to shape the minimum physical geometry of the site during the early planning stages. Checking vehicles, such as specialized refuse trucks or emergency tenders, verify that the final layout functions safely under real-world conditions. Modern 2026 technology now allows us to provide live animations of these vehicle movements. These visualizations give planning committees a clear, dynamic view of how access points will operate in practice.

    Common Vehicle Templates for London Projects

    Selecting the correct vehicle template is vital because London boroughs maintain diverse fleet specifications. While the 11.4m Refuse Collection Vehicle (RCV) is the standard benchmark, specific requirements vary. For example, Westminster often utilizes smaller 8.3m vehicles, while Hackney may require testing against 12.2m trucks. Residential developments must also satisfy fire tender access requirements under Building Regulations Part B. We ensure your layout accommodates the 11.2m fire appliance used by the London Fire Brigade. For commercial sites, we model pantechnicons and delivery vans to ensure loading areas don’t obstruct the public highway.

    The Role of AutoTurn and CAD Accuracy

    Manual turning circle templates are obsolete in modern traffic engineering. They cannot account for the complex steering rates and multi-point maneuvers required in tight urban spaces. We use AutoTurn to provide millimetre-perfect site layout adjustments within a CAD environment. This integration allows for immediate identification of over-hang or over-run issues. If a vehicle body sweeps over a proposed boundary, we can fix the design before it reaches the planning stage. Professional-grade software is essential to withstand local authority scrutiny and reduce project risk. If you are preparing a submission, a professional swept path analysis provides the technical evidence needed to secure your approval. You can also review our practical guide for planning applications to see how these standards are applied in detail.

    When is Swept Path Analysis Mandatory in London?

    Planning officers use technical data to prevent congestion and safety hazards before they occur. A swept path analysis london is mandatory whenever a development alters how vehicles interact with the public highway or internal site infrastructure. While large scale schemes always require this data, smaller developments often trigger the requirement based on site constraints or specific borough standards. Local highway authorities use these drawings to verify that your proposal won’t lead to blocked roads or dangerous reversing maneuvers.

    We’ve identified a 5-step trigger checklist to help you determine if your project requires a formal simulation:

    • New Access Points: Any creation or modification of a junction onto the public highway.
    • Tight Footprints: Internal layouts with limited turning space, cul-de-sacs, or courtyard access.
    • Service Requirements: Developments requiring regular refuse collection or HGV deliveries.
    • Strategic Road Impact: Sites bordering the Transport for London (TfL) Road Network (TLRN).
    • Change of Use: Projects that increase the size or frequency of vehicles visiting the site.

    Triggers for SPA in Planning Applications

    In dense urban areas like Tower Hamlets, planning departments focus heavily on high-density refuse collection maneuvers. In contrast, Westminster prioritizes heritage street preservation and often requires testing against smaller, specialized vehicle templates. If your site includes a cul-de-sac or a restricted loading bay, you must prove that the largest anticipated vehicle can enter and exit in a forward gear. Failing to provide this evidence often results in an immediate holding objection from the highway officer. Integrating these drawings into your Transport Statement London ensures that your technical narrative is backed by visual proof.

    Integrating SPA into Transport Assessments

    SPA drawings serve as the technical backbone for comprehensive Transport Assessments. For developments in high PTAL zones (Public Transport Accessibility Level), you can use a swept path analysis london to justify car-free or low-car designs. By proving that the site only needs to accommodate essential service vehicles, you can maximize residential or commercial density. This precision allows you to optimize every square meter of the site while maintaining compliance with TfL’s Healthy Streets indicators. We ensure that the written technical report and the CAD simulations are perfectly synchronized to withstand the most rigorous local authority scrutiny.

    Swept Path Analysis London: The 2026 Developer’s Guide to Planning Success

    Avoiding Common Design Failures in Tight Urban Spaces

    London’s constrained streetscapes leave zero margin for error during the planning phase. A swept path analysis london often reveals that what looks functional on a traditional site plan is physically impossible for a heavy vehicle. The “Refuse Vehicle Trap” occurs when a designer assumes a standard turning circle is sufficient, only to find the vehicle’s body strikes a boundary wall or overhangs a pedestrian footway. These kerb-strike failures and over-hang issues are the leading causes of technical objections from highway officers.

    Managing over-run (the path of the wheels) and over-hang (the path of the body) is a functional necessity in the capital. In narrow Victorian corridors, a vehicle might successfully clear a corner with its wheels but strike a street lamp or building with its rear swing. We use high-fidelity modeling to identify these conflicts while the design is still fluid. This allows for minor layout adjustments that prevent major planning setbacks and ensure your site remains safe for all road users.

    Managing Refuse and Emergency Access

    Waste collection is the primary hurdle for most London planning submissions. While the 11.4m refuse collection vehicle (RCV) is the benchmark, many boroughs maintain strict reversing limits to protect pedestrians. Most London councils cap reversing distances at 12 meters for safety reasons. If your site layout requires a vehicle to reverse out onto the public highway, it’ll likely face an immediate refusal. We ensure your design accommodates a full 3-point turn within the site boundary or provides a through-route that meets borough-specific standards.

    Emergency access is equally non-negotiable for project success. Building Regulations Part B require fire tenders to reach within 45 meters of all points within a residential building. Balancing these rigid access paths with landscaping and “Healthy Streets” requirements is a complex task. Our simulations prove that your green infrastructure doesn’t obstruct the 11.2m fire appliance path, satisfying both the planning officer and the fire authority simultaneously.

    The Cost of Design Errors in London

    A failed technical audit can delay your project by 24 weeks. If a Highway Officer issues an objection based on insufficient access proof, you’re often forced to re-submit your entire planning application. The financial implications are most severe when errors affect structural elements, such as basement car park ramps or supporting columns. Re-designing a basement after a planning refusal is a costly and time-consuming process that can derail project financing. Industry data suggests that early-stage swept path analysis london saves up to 15% in total project design costs by preventing these late-stage structural revisions. If you’re refining a site layout, our swept path analysis services provide the technical certainty needed to avoid these common pitfalls.

    Professional SPA Services: Securing Your Planning Approval

    Securing planning approval in London’s 2026 regulatory environment requires more than just a software-generated drawing. It requires a technical defense of the proposed site geometry. Choosing a specialist London transport consultancy reduces project risk by ensuring that every simulation is rooted in local highway authority expectations. We don’t just provide static images; we deliver a comprehensive service that bridges the gap between architectural vision and functional highway safety. Our team takes pride in precision, recognizing that a single oversight can derail an entire development timeline.

    Our “cradle-to-grave” approach ensures that your project is supported from inception to completion. We move from initial data collection and site plan review to the production of a final technical report. Interpreting a swept path analysis london drawing involves understanding the dynamic interaction between vehicle body swing and physical constraints. We provide the expert analysis needed to spot potential conflicts before they become grounds for a highway officer’s objection, allowing for immediate design refinements.

    Why Work with ML Traffic Engineers?

    We understand that precision is a functional necessity in high-stakes urban planning. Our team has deep expertise in navigating the statutory requirements of all 32 London boroughs and TfL. We eliminate the logistical pressure on developers by providing integrated services. This includes parking surveys and traffic data collection that feed directly into our digital models. Our commitment to accuracy prevents the 24-week delays often caused by insufficient access proof. We position ourselves as a vital partner in your design team, ensuring compliance with the August 2026 NPPF update and Healthy Streets standards.

    Getting Your SPA Quote for 2026 Projects

    To provide a precise fee proposal for your 2026 project, we require specific information to assess the complexity of the maneuvers. We need your current site plans in CAD format, the specific vehicle types you need to model, and the overall project scope. We understand the fast-moving nature of infrastructure development and the urgency of planning deadlines. Our team maintains rapid response capabilities to help you meet critical submission dates without compromising technical quality. We’re ready to provide the technical evidence required to satisfy even the most rigorous highway authority scrutiny. Contact ML Traffic Engineers today for a bespoke Swept Path Analysis quote to secure your project’s future.

    Securing Your Development’s Future with Technical Precision

    Success in 2026 planning requires more than just meeting minimum standards; it demands technical excellence. Navigating borough-specific vehicle templates and avoiding common design pitfalls are essential steps for any London developer. By prioritizing a precise swept path analysis london, you eliminate the risk of technical objections that often lead to costly 24-week delays. Precision isn’t just a goal; it’s a functional necessity for protecting your project’s timeline and budget.

    ML Traffic Engineers has provided fully-managed transport planning services since 2014. As specialists in AutoTurn and CAD accuracy, we ensure your site layout is robust enough to withstand the most rigorous local authority scrutiny. We take the regulatory pressure off your team by delivering millimetre-perfect simulations that guarantee safe and efficient access. Don’t leave your planning submission to chance when technical certainty is within reach.

    Request a Swept Path Analysis Quote for Your London Project to secure your approval. We’re ready to help you optimize your site for maximum density and safety today.

    Frequently Asked Questions

    When is a Swept Path Analysis required for a London project?

    A swept path analysis london is required whenever a development alters access to the public highway or introduces internal layouts where maneuvering space is restricted. Common triggers include the creation of new junctions, the inclusion of cul-de-sacs, or the need to accommodate large service vehicles. Planning officers use these simulations to verify that refuse trucks and fire tenders can navigate the site safely without causing congestion or safety hazards for other road users.

    Can I use a standard car template for my planning application?

    Using a standard car template is rarely sufficient for London planning applications. While car parking maneuvers are important, most boroughs prioritize the movement of larger vehicles like the 11.4m refuse collection vehicle or fire appliances. Your application must prove that the largest anticipated vehicle can enter and exit the site in a forward gear. Relying solely on car templates often leads to a holding objection from the local highway authority.

    How much does a Swept Path Analysis cost in London?

    The cost of technical modeling depends on the specific complexity of your development and the number of vehicle maneuvers required. Factors such as the number of access points, the variety of vehicle templates, and the scale of the site layout will influence the final fee. We recommend requesting a bespoke quote to ensure the analysis covers all borough-specific requirements. This approach prevents the financial risk associated with redesigns after a planning refusal.

    What vehicle templates do London Boroughs usually require?

    London boroughs maintain diverse fleet specifications, but the 11.4m Refuse Collection Vehicle (RCV) remains the most common benchmark. Fire tenders, typically modeled at 11.2m, are also a mandatory requirement for residential schemes. Some areas, like Westminster, utilize smaller 8.3m vehicles, while others may require testing against 12.2m trucks. We always verify the current fleet dimensions for the specific borough to ensure your swept path analysis london is technically accurate.

    Do I need a Swept Path Analysis for a private driveway?

    A swept path analysis london isn’t always required for a single private driveway. However, it becomes a necessity if the driveway serves multiple dwellings or connects to a strategic road network managed by TfL. If there is any doubt about a vehicle’s ability to turn within the site or exit in a forward gear, the Highway Officer will likely request technical proof. Providing this data early prevents delays during the consultation period.

    How long does it take to produce a Swept Path Analysis report?

    Production timelines vary based on the quality of the provided CAD site plans and the complexity of the maneuvers. Once we receive accurate digital drawings, a standard technical report can often be produced within a few business days. We understand the urgency of planning deadlines and maintain a responsive service to help you meet critical submission dates. Having all technical data ready prevents the 24-week delays caused by insufficient access evidence.

    What software is used for Swept Path Analysis in 2026?

    AutoTurn remains the industry standard software for swept path analysis in 2026. This software allows engineers to perform high-precision digital modeling within a CAD environment. By integrating OS MasterMap data, we ensure that vehicle simulations are grounded in the physical reality of the London streetscape. These advanced tools provide the live animations and technical appendices that planning committees now expect for all significant residential and commercial development proposals.

    Can an architect produce a Swept Path Analysis, or do I need an engineer?

    While some architects utilize basic tracking tools, a specialist traffic engineer is recommended for formal planning submissions. Traffic engineers possess a deeper understanding of the intricate regional regulations and the specific technical parameters required by highway authorities. A professional engineer ensures that the simulation accounts for steering rates and wheelbase pivot points accurately. This specialized expertise reduces project risk and provides the technical authority needed to overcome potential objections from council officers.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • When Is a Transport Planner Needed? A Developer’s Guide to UK Planning

    When Is a Transport Planner Needed? A Developer’s Guide to UK Planning

    A single highway objection can terminate a multi-million pound development before the first brick is laid. Many developers mistakenly treat highways as a late-stage technicality, only to face immediate refusal from the Local Highway Authority. Understanding exactly when is a transport planner needed within the current planning framework is the difference between a stalled application and a successful site commencement. With the National Planning Policy Framework updated in February 2025 and new TRICS 8 data standards now active, the technical requirements for site access and traffic impact are more stringent than ever.

    You probably recognize the confusion that arises when trying to distinguish between a Transport Statement and a full Assessment. It’s a high-stakes environment where uncertainty about local thresholds can lead to expensive redesigns or missed deadlines. This guide provides the clarity you need to navigate these regulatory pressures. We’ll outline the statutory triggers for professional input, identify which specific reports your project requires for 2026, and provide a clear roadmap to securing planning approval without highway objections.

    Key Takeaways

    • Identify the specific thresholds set by Local Highway Authorities that mandate professional reporting to avoid application refusal.
    • Learn exactly when is a transport planner needed to navigate the National Planning Policy Framework and provide technical evidence for site access.
    • Distinguish between a Transport Statement for smaller developments and a comprehensive Transport Assessment for complex projects.
    • Understand how specialized data like Swept Path Analysis and Parking Surveys justify your design and mitigate highway safety concerns.
    • Discover how to streamline the path to planning approval by integrating transport planning at the earliest feasibility stages.

    The Role of a Transport Planner in the Planning Process

    A transport planner functions as the essential link between a developer’s architectural vision and the stringent safety requirements of the public highway. While architects focus on the building’s aesthetics and structural engineers on its stability, neither is trained to analyze the complex dynamics of transportation planning. Professional transport planners provide the technical evidence required to prove that a new development won’t compromise the safety or efficiency of the surrounding road network. Determining exactly when is a transport planner needed depends on the scale and location of your project, but their input is often the only thing standing between an approval and a refusal.

    Local Highway Authorities rely on data-driven justifications rather than subjective design choices. Transport planners use specialized tools like TRICS data and comprehensive support strategies to forecast trip generation and mitigate traffic impacts. Without this specific expertise, a developer lacks the professional representation needed to challenge council objections or negotiate complex highway requirements. Relying on non-specialists for transport evidence is a high-risk strategy that frequently leads to costly delays during the validation process.

    To better understand the professional path and expertise involved in this field, watch this helpful video:

    Consultancy vs. Public Sector Planners

    There’s a fundamental difference between planners who set policy within a local authority and consultants who support private applications. Public sector planners act as gatekeepers, ensuring new developments align with regional transport goals. Private developers need a specialist consultant to “speak the language” of the council and translate technical requirements into actionable site designs. This expertise is vital when negotiating Section 106 contributions or Section 278 agreements, where the consultant ensures that the developer isn’t saddled with disproportionate infrastructure costs.

    Reducing Risk and Cost Through Early Engagement

    Engaging a specialist at the feasibility stage prevents fundamental design errors that can’t be easily fixed once an application is submitted. If a site layout doesn’t allow for safe vehicle turning or adequate visibility splays, the project may be fundamentally unviable. In 2026, the transport planner’s role is defined as a guardian of site viability. By identifying these “red flag” issues early, you avoid the financial burden of planning appeals and the need for expensive, late-stage redesigns. Proactive transport planning ensures that your site layout is technically sound before it ever reaches the council’s desk.

    Statutory Triggers: When Is Professional Input Mandatory?

    The National Planning Policy Framework (NPPF), updated in February 2025, mandates that developments generating significant movement must provide technical evidence to support a planning application. This is exactly when is a transport planner needed to interpret official government guidance against specific local requirements. While national rules provide a baseline, individual Local Highway Authorities (LHAs) set their own thresholds. London standards often differ significantly from national ones due to the capital’s unique congestion levels and strict sustainability targets. Modern planning triggers now prioritize “Active Travel,” meaning any project affecting pedestrian or cycle routes faces immediate scrutiny.

    Development Size and Trip Generation

    Project scale is the most common trigger for mandatory transport reporting. For residential projects, a development exceeding 50 dwellings typically requires a full Transport Assessment. However, many councils now request a Transport Statement for as few as 10 to 49 units to manage cumulative impact. Commercial sites face similar scrutiny based on Gross Floor Area (GFA). For instance, retail developments over 250 square meters in cities like Manchester often trigger the need for a Travel Plan. Transport planners use the TRICS 8 database, which received a major update in June 2025, to predict trip generation accurately. This data allows us to forecast the volume of vehicles and cyclists your site will attract, ensuring your infrastructure meets current benchmarks.

    Sensitive Locations and Safety Concerns

    Small developments can trigger the need for specialist input if they occupy sensitive locations. If your site is near a school, a busy junction, or within an Air Quality Management Area (AQMA), the council will likely demand a Transport Statement regardless of the unit count. Safety remains the non-negotiable foundation of the work. A minor change to a site access point might seem simple, but if it impacts visibility splays or pedestrian safety, it requires a formal technical review. Proving your site supports sustainable travel is no longer optional; it’s a core requirement for securing approval in 2026. If you’re unsure if your site meets these criteria, reviewing our project types can help identify the specific triggers for your development.

    Choosing the Right Report: Statements, Assessments, and Travel Plans

    Selecting the correct technical documentation is a critical step in the development lifecycle. Local planning authorities utilize these reports to determine if a project’s impact on the highway is manageable or if it requires significant mitigation. This is exactly when is a transport planner needed to evaluate the specific demands of your site against the professional standards set by the Chartered Institution of Highways & Transportation. Misclassifying your report type often leads to immediate validation failure, which can stall a project before the technical review even begins.

    The choice between a Transport Statement, a Transport Assessment, or a Travel Plan depends on the scale of the development and the specific policies of the borough. While national guidelines provide a framework, local authorities have the autonomy to request higher levels of detail based on local congestion or safety concerns. We manage the full project lifecycle by identifying these requirements early, ensuring that the evidence provided is proportionate to the development’s impact.

    Transport Statement vs. Assessment

    The primary difference between these two reports lies in their scope and the depth of analysis required. A Transport Statement is typically used for smaller developments where the impact on the wider highway network is limited. It focuses on site access, local pedestrian links, and parking provision. In contrast, a Transport Assessment is a comprehensive study required for larger or more complex projects. It often involves sophisticated junction modeling and an analysis of the development’s effect on the wider road network. For developers working in the capital, understanding the Transport Statement vs. Assessment: London Differences is vital, as many boroughs demand full assessments for relatively modest unit counts to address cumulative traffic pressures.

    The Necessity of Travel Plans

    Councils increasingly demand Travel Plans as a condition of planning, especially for “car-free” or low-parking developments in urban centers. A Travel Plan is not a one-off report; it is a long-term management strategy designed to encourage sustainable travel modes like cycling and public transport. These documents outline specific targets for reducing single-occupancy vehicle trips and include monitoring commitments that can last for several years post-occupation. Our expert London Travel Plans: The Essential Guide helps developers navigate these requirements, ensuring that sustainability targets are both ambitious and achievable. By integrating a Travel Plan early, you demonstrate a commitment to reducing environmental impact, which is a key priority for planning committees in 2026.

    When Is a Transport Planner Needed? A Developer’s Guide to UK Planning

    Technical Analysis That Requires a Specialist

    Precision in technical data is a functional necessity for modern planning applications. Generalist architectural software often lacks the sophisticated algorithms required for regulatory compliance; creating a gap that can lead to immediate highway objections. Determining exactly when is a transport planner needed often comes down to the requirement for forensic technical data that generalist designers cannot provide. We manage full project lifecycles by providing the specialized analysis that proves a site is safe, accessible, and compliant with local standards.

    Swept Path Analysis for Fire Tenders and Refuse Trucks

    Planning officers prioritize site functionality above all else. If you can’t prove a vehicle can physically enter, turn, and exit your site in a forward gear, your application faces refusal. This is where Swept Path Analysis Services in London become indispensable. We use industry-standard software like AutoTurn to simulate the movement of specific vehicle templates, including:

    • Emergency Vehicles: Proving fire tenders can reach all areas of a residential development.
    • Refuse Trucks: Ensuring 12m refuse vehicles can maneuver without mounting curbs.
    • HGVs: Validating loading bay access for commercial and industrial sites.

    This analysis acts as the primary tool for proving site functionality. It eliminates guesswork and provides planning officers with the visual and mathematical evidence they need to approve your layout.

    Parking Surveys and the Lambeth Methodology

    Justifying parking provision is one of the most contentious aspects of urban planning. In high-density areas, councils often push for “car-free” developments, but they require technical proof that this won’t result in overspill onto local streets. We conduct professional Parking Surveys using the Lambeth Methodology to provide a snapshot of on-street capacity. These surveys are typically conducted over two consecutive weekday nights between 00:30 and 05:30 to capture peak residential parking demand.

    Our analysis also incorporates PTAL (Public Transport Accessibility Level) ratings. A high PTAL score allows for lower parking ratios, but this must be justified with data rather than anecdotal evidence. Proving that there is sufficient on-street capacity within a 200-meter walk of the site can mitigate concerns about local congestion. Secure your site’s functionality and justify your parking strategy by commissioning a professional technical assessment today.

    Junction Modeling and Visibility Splay Analysis

    Safety is the non-negotiable foundation of our work. When a new development increases traffic at a local intersection, we use junction modeling to assess capacity and delay. This ensures the local road network can absorb the additional trips without failing. Similarly, visibility splay analysis is vital for any new or modified access point. We calculate the required sightlines based on recorded road speeds, ensuring that drivers can see and be seen when entering the highway. This level of technical detail is a statutory requirement for securing planning permission in 2026.

    Securing Approval with ML Traffic Engineers

    Navigating the complexities of UK planning requires more than just submitting documents; it demands a strategic partnership with experts who understand the nuances of highway safety and regulatory compliance. Determining exactly when is a transport planner needed depends on the complexity of your site access and the scale of the proposed works. ML Traffic Engineers UK provides an all-encompassing, fully-managed service that bridges the gap between your development goals and statutory requirements. Our approach prioritizes precision and rapid response, ensuring that your project maintains momentum through every stage of the planning lifecycle.

    Beyond the initial application, we provide expert guidance on Section 278 and Section 38 agreements. These legal frameworks govern the design and construction of new or improved highway infrastructure. Our technical reports, including Transport Assessments and Swept Path Analysis, form the non-negotiable foundation for these negotiations. By delivering accurate, data-backed evidence early, we significantly reduce the risk of costly planning delays and highway objections that could jeopardize your site’s viability. ML Traffic Engineers UK acts as a vital guardian of public safety, ensuring that all proposed highway works meet the strict standards required for local authority adoption.

    Our Expertise in London and England Planning

    Since our founding in 2014, we’ve developed a deep understanding of the specific requirements across different London Boroughs and regional authorities in England. Each jurisdiction has its own benchmarks for trip generation, parking provision, and sustainable travel. We specialize in navigating these intricate regional regulations so that you don’t have to. The unwavering reliability of ML Traffic Engineers UK in high-stakes planning environments makes us a dependable partner for developers facing strict regulatory scrutiny. Our expertise in TRICS 8 data and London-specific policy ensures every report meets the necessary statutory benchmarks for 2026 applications.

    Next Steps for Your Development

    Securing professional input is a straightforward, sequential process. We recommend providing your site plan for an initial review as early as the feasibility stage. This allows us to identify any immediate red flags regarding visibility splays or vehicle tracking before they become entrenched in your architectural design. The typical timeline for preparing a Transport Statement or Assessment varies based on project complexity, but our efficient workflow ensures rapid delivery to meet your project deadlines. Contact our team to discuss your requirements and receive a bespoke fee proposal. You can get a quote for your Transport Statement today to secure professional input for your 2026 planning application.

    Take Control of Your Planning Timeline

    Success in the 2026 planning landscape requires more than just a viable site; it requires technical evidence that withstands rigorous scrutiny from Local Highway Authorities. By identifying exactly when is a transport planner needed, you avoid the common pitfalls of application refusal and expensive late-stage redesigns. The right combination of Transport Statements, Travel Plans, and specialized data like Swept Path Analysis ensures your project meets the non-negotiable foundation of highway safety.

    ML Traffic Engineers UK has provided comprehensive London planning expertise since 2014. We are specialists in Swept Path Analysis and TRICS data, offering the precision required to navigate intricate regional regulations. Our team understands that precision is a functional necessity in high-stakes environments. We manage the full project lifecycle from initial assessment to execution, providing the unwavering reliability your development deserves.

    Don’t let highway objections stall your progress. Request a Transport Planning Quote from ML Traffic Engineers UK today to secure professional, data-backed representation for your application. We’re ready to help you achieve a seamless approval.

    Frequently Asked Questions

    Do I need a transport planner for a small residential conversion?

    Fees for technical reporting vary significantly based on the project’s complexity and the specific data analysis required by the local authority. Every development demands a tailored approach to ensure compliance with Local Highway Authority standards. We recommend requesting a bespoke fee proposal to ensure the scope of work aligns with your site’s unique constraints. This ensures you only pay for the necessary analysis while meeting all statutory benchmarks.

    What is the difference between a transport planner and a traffic engineer?

    Transport planners focus on the strategic movement of people and policy compliance, while traffic engineers handle the technical design and physical operation of the road network. Planners manage the application process and prepare reports like Transport Assessments. Engineers deal with junction geometry and signal timings. Knowing exactly when is a transport planner needed is vital for navigating the initial planning stages and securing the necessary statutory approvals.

    Can an architect complete a Swept Path Analysis?

    Architects generally lack the specialized software and verified vehicle templates required for a planning-grade Swept Path Analysis. While some design programs include basic tracking, they rarely meet the rigorous standards set by Local Highway Authorities. Professional planners use dedicated tools like AutoTurn with precise templates for fire tenders and refuse vehicles. This precision is a functional necessity to prove that large vehicles can maneuver safely within your specific site layout.

    What happens if I submit a planning application without a required Travel Plan?

    Submitting an application without a mandatory Travel Plan usually results in a non-validation or an immediate highway objection. Councils view these documents as essential management strategies for reducing environmental impact and promoting sustainable transport. Failure to provide this evidence can lead to significant delays or an outright refusal. Including a professional Travel Plan from the outset demonstrates your commitment to sustainability and helps streamline the path to planning approval.

    How long does it take to produce a Transport Assessment?

    A comprehensive Transport Assessment typically takes three to six weeks to produce, depending on the scale of the development and data availability. This timeline accounts for site visits, data collection from the TRICS database, and complex junction modeling. Early engagement is essential to ensure these technical reports are ready for your submission deadline. Our efficient workflow prioritizes the rapid delivery of information to maintain your project’s momentum throughout the process.

    Is a transport planner needed for a change of use application?

    Determining when is a transport planner needed for a change of use depends on whether the new use generates more trips or different parking requirements. Converting an office into a residential block or a retail unit into a restaurant significantly changes the traffic profile of the site. We analyze these trip generation shifts to justify the change to the council and ensure the local network can accommodate the new demand safely.

    Can a transport planner help with a refused planning application appeal?

    Transport planners provide vital expert evidence to challenge highway-related reasons for refusal during the appeal process. We review the council’s objections and prepare technical rebuttals, often utilizing more detailed data like Parking Surveys or forensic junction modeling. This professional representation provides the technical authority needed to address safety concerns and demonstrate that your development is fully compliant with national and local planning policies.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

  • Vehicle Access Visibility Splays: The Developer’s 2026 Guide to Planning Success

    Vehicle Access Visibility Splays: The Developer’s 2026 Guide to Planning Success

    A single miscalculation in your vehicle access visibility splays can render a high-value development site undevelopable before the first brick is even laid. You likely recognize that securing Highway Authority approval remains one of the most significant risks to your project timeline. The constant tension between maximizing developable area and meeting uncompromising safety standards often leads to costly design errors and planning delays.

    This guide empowers you to master the technical requirements of X and Y distances, ensuring your site access meets the latest UK safety standards and secures planning approval without friction. We provide the professional precision necessary to navigate the complex transition between Manual for Streets and DMRB requirements. By integrating rigorous data collection early in the design phase, you can mitigate the risk of ‘unsafe access’ objections that frequently stall major applications.

    We examine the 2026 regulatory updates, the vital role of 85th percentile speed surveys in determining splay dimensions, and strategic solutions for boundary issues where sightlines cross third-party land. This technical overview ensures your project remains compliant, safe, and ready for execution.

    Key Takeaways

    • Understand how vehicle access visibility splays function as the primary safety mechanism for site access, protecting both emerging and passing motorists.
    • Master the technical application of X and Y distances to ensure your junction geometry meets precise Highway Authority stopping sight distance requirements.
    • Determine the correct regulatory framework for your site by distinguishing between Manual for Streets (MfS) and DMRB standards based on local road speeds.
    • Learn to identify and mitigate common sightline obstructions, such as boundary walls and vegetation, while adhering to strict vertical visibility limits.
    • Streamline your planning application by integrating visibility analysis with Swept Path Analysis for a comprehensive, submission-ready Transport Statement.

    What Are Vehicle Access Visibility Splays and Why Are They Critical?

    Vehicle access visibility splays represent the physical area at a junction where sightlines must remain entirely unobstructed to ensure safe movement between a side road and a major road. Unlike a simple 2D drawing, a splay is a three-dimensional envelope of visibility. It ensures that any driver positioned at the junction has a clear, unhindered view of approaching traffic. Precision in these calculations is mandatory. Highway Authorities treat these splays as the primary gatekeepers of site viability, often prioritizing them over architectural aesthetics or unit density. A site with a ‘blind’ access point is often fundamentally undevelopable, as safety remains a non-negotiable requirement for planning approval.

    The safety benefit is strictly two-way. While it is vital for the emerging driver to see oncoming traffic, it’s equally important for drivers on the major road to see vehicles preparing to join the flow. This mutual visibility allows for reactive braking and smoother traffic integration. Adhering to standard road junction design principles ensures that all road users, including cyclists and motorcyclists, are protected from high-speed collisions. In 2026, failing to demonstrate compliant vehicle access visibility splays in your initial application is a leading cause of immediate refusal. Visibility analysis is the cornerstone of a robust Transport Statement, providing the technical evidence needed to satisfy highway engineers.

    The Geometry of Safety: Side Road vs. Major Road

    Visualizing the splay as a triangle is the most effective way to understand your site entrance. The ‘X’ distance is your setback from the major road, while the ‘Y’ distance extends along the main carriageway. The speed of the major road dictates the entire design. Higher recorded speeds require longer ‘Y’ distances to account for vehicle stopping sight distances. In urban development projects, this geometry must also account for pedestrian visibility. Drivers must be able to see pedestrians on the footway before the vehicle crosses their path. We use actual speed data, rather than just posted limits, to ensure the triangle is both safe and realistic.

    Legal and Planning Status of the Splay

    Visibility splays must be maintained in perpetuity. The Highway Authority requires long-term control over this land to prevent future obstructions like overgrown hedges or new fences. If the required splay crosses land you don’t own, you must secure that land through legal agreements or demonstrate that it’s part of the public highway. We often manage these requirements through Section 278 agreements for off-site improvements. These visibility requirements typically appear as strict planning conditions. You’ll often find that you cannot begin work on-site until the access and its associated visibility splays are physically constructed and verified.

    Decoding the Dimensions: Understanding X and Y Distances

    Precision is the difference between a validated planning application and a costly refusal. When designing vehicle access visibility splays, we define the safety area using two primary coordinates: the X and Y distances. The X distance represents the setback from the edge of the major road to the driver’s eye. While 2.4 meters is the standard requirement for most junctions, this measurement is not arbitrary. It allows a driver to see the main road clearly without their vehicle protruding into the flow of traffic. The Y distance, or Stopping Sight Distance (SSD), is the length visible along the major road. This distance must be sufficient for a driver on the main road to see a hazard and come to a safe stop.

    Technical accuracy extends into the vertical plane. We must maintain a clear line of sight between a driver’s eye height, typically 1.05 meters, and an object height of 0.6 meters. This ensures that low-profile road users, such as children or cyclists, are not obscured by boundary treatments. Environmental factors also influence these calculations. Steep gradients or road surfaces prone to moisture can increase braking distances, requiring an extension of the Y distance to maintain safety margins. Following the Manual for Streets (MfS) guidance, we calculate these dimensions based on actual vehicle deceleration rates rather than theoretical ideals.

    When Can the X Distance Be Reduced?

    Reducing the X distance to 2.0 meters is sometimes permissible for lightly trafficked residential drives or in constrained urban environments. However, Highway Authorities often resist this ‘nose-out’ visibility because it forces the front of the vehicle to enter the major road before the driver has a full view. At ML Traffic, we justify these reductions by providing empirical evidence of low traffic volumes or by using Swept Path Analysis to prove that the maneuver remains safe. If you are struggling with a tight site boundary, commissioning professional Traffic Surveys can provide the specific data needed to defend a non-standard design.

    Calculating the Y Distance: The Speed Factor

    The Y distance is directly tethered to the 85th percentile speed of the major road. A 20mph zone typically requires an SSD of 25 meters, whereas a 30mph zone requires 43 meters. It is a common error to rely solely on the posted speed limit. Actual recorded speeds often exceed the limit, and Highway Authorities will demand visibility splays that reflect how the road is used in reality. We use 85th percentile speed data to ensure your design is robust enough to pass a formal safety review.

    MfS vs. DMRB: Selecting the Right Regulatory Standard

    Selecting the correct regulatory framework is a strategic decision that dictates the viability of your site layout. In the UK, we primarily work with two sets of guidance: Manual for Streets (MfS) and the Design Manual for Roads and Bridges (DMRB). MfS is the standard for most urban and residential environments where speeds are 37mph or lower. It prioritizes place-making and utilizes stopping sight distances based on actual vehicle deceleration. Conversely, the DMRB is a more rigid standard designed for trunk roads and high-speed rural routes.

    The ‘grey area’ typically occurs on the urban fringe where a 30mph limit transitions into a 60mph zone. Applying DMRB standards to an urban-edge site often results in excessively large vehicle access visibility splays. These over-engineered designs can consume valuable frontage, reduce your unit count, and ultimately kill site density. We specialize in navigating these transitions, using technical authority to argue for the more appropriate MfS standard when the character of the road supports it. Identifying the most appropriate standard early prevents logistical pressures and ensures your project meets safety benchmarks without sacrificing land.

    The Critical Role of Speed Surveys

    Relying on posted speed limits is a common mistake that leads to conservative, space-wasting designs. We recommend conducting 85th percentile speed surveys to determine the actual speed at which motorists travel past your site. If the 85th percentile speed is lower than the limit, we can often justify shorter Y distances, preserving more of your developable area. For example, on a recent project with restricted frontage, a speed survey proved that actual speeds were significantly lower than the 30mph limit. This allowed for a reduction in the required splay, saving multiple residential units that would have otherwise been lost to visibility requirements. Professional Traffic Surveys provide the empirical data required to challenge assumptions and maximize site potential.

    National vs. Local Highway Authority Variances

    While MfS and DMRB provide national frameworks, local Highway Officers often have their own specific interpretations. Some authorities are more flexible regarding ‘nose-out’ visibility, while others strictly adhere to their own internal design guides. Early pre-application engagement is essential to understand these local nuances before you finalize your site plan. This proactive approach is particularly vital when navigating London’s transport planning system, where high-density constraints require a more tailored technical justification for every meter of visibility. We manage these negotiations on your behalf, ensuring your design aligns with both national standards and local expectations.

    Managing Obstructions and Maintenance within the Splay

    The 0.6m rule is the fundamental benchmark for any object positioned within the visibility envelope. To maintain a clear line of sight between the driver’s eye height (1.05m) and the object height (0.6m), everything within the splay must remain below this 600mm threshold. Common pitfalls include boundary walls, decorative hedges, and seasonal vegetation that grows rapidly. Parked cars represent another significant concern. Highway Authorities will often require new parking restrictions if existing or proposed on-street parking blocks the vehicle access visibility splays.

    Not every object is a prohibited obstruction. Slim signposts, lighting columns, and clear-stemmed trees where the canopy starts above 2.0m are often permitted because they don’t significantly mask a vehicle. However, the cumulative effect of multiple ‘slim’ objects can still lead to a refusal if they create a visual screen. If your site layout is constrained, we can perform a detailed assessment to identify which existing features can be retained and which must be removed to satisfy safety requirements.

    Land Ownership and Control

    For a planning application to succeed, you must demonstrate that the required visibility splays are either within your site’s red-line boundary or on land that is already part of the public highway. If a splay crosses third-party land, you face a significant legal hurdle. You must either purchase that land or secure a legal agreement with the neighbor. In some cases, we utilize Grampian conditions. These are negatively worded planning conditions that prevent development from starting until the off-site visibility is secured. We often facilitate these arrangements through Section 106 or Section 278 agreements to ensure the Highway Authority has the legal right to maintain the sightlines in perpetuity.

    Designing for Longevity

    Maintaining vehicle access visibility splays isn’t just a requirement for the planning phase; it’s a permanent safety obligation. When designing your landscaping scheme, select low-growth species that naturally stay below 0.6m. This prevents future safety breaches caused by overgrown vegetation. As the developer, you remain liable for maintaining these sightlines until the road is formally adopted by the council. For complex projects involving new road infrastructure, our Highway Design S278 & S38 Guide provides deeper insight into the adoption process and long-term maintenance requirements.

    If you’re facing boundary disputes or need a technical justification for a potential obstruction, contact us today to discuss how our Transport Statements can resolve your planning bottlenecks and secure your site’s access.

    Vehicle Access Visibility Splays: The Developer’s 2026 Guide to Planning Success

    Integrating Visibility into Your Transport Statement

    A robust Transport Statement relies on the technical validation of vehicle access visibility splays. It isn’t enough to state that an access point is safe; we must prove it through rigorous data. Our workflow begins with precise site surveys to capture 85th percentile speeds, which then inform our CAD modeling. This transition from raw data to engineered drawings ensures the Highway Officer receives a submission that is technically sound and ready for approval on the first attempt. We present our findings in a logical, sequential format that mirrors the Highway Authority’s own review process, reducing the friction often found in planning negotiations.

    There is a critical synergy between visibility analysis and Swept Path Analysis. While visibility splays ensure drivers can see, Swept Path Analysis proves that vehicles can physically maneuver through the junction without overrunning footways or striking street furniture. We integrate these two disciplines to ensure your site entrance is both visible and navigable. Presenting these reports as a unified technical package demonstrates a comprehensive understanding of junction safety. This combined approach reduces the likelihood of supplementary information requests that can stall your project for weeks.

    Beyond the Drawing: The Technical Report

    The technical report goes beyond simple geometry. We use evidence-based engineering to justify deviations from standard guidance when site constraints make literal compliance impossible. This approach is especially critical when following our Transport Assessment London Guide, where high-density environments require creative but safe solutions. Our safety-critical designs are backed by professional indemnity insurance, providing developers with the assurance that their project’s technical foundation is legally and professionally robust. We don’t just provide drawings; we provide the engineering justification needed to win planning appeals.

    Next Steps for Your 2026 Planning Application

    Early-stage feasibility is the most effective way to protect your site’s value. We recommend checking vehicle access visibility splays before you finalize your site layout. Identifying a visibility constraint during the initial design phase allows for minor adjustments to building positions or frontage treatments. Waiting until the full application stage to discover an unsafe access point often results in expensive redesigns and lost units.

    To streamline your 2026 planning application, you should request a site-specific access review as early as possible. We provide a clear roadmap from initial assessment to final Highway Authority sign-off, managing the logistical and regulatory pressures so you don’t have to. By choosing a partner that understands the intricate relationship between safety standards and commercial site viability, you ensure your project moves forward with unwavering reliability and precision.

    Securing Site Viability Through Technical Precision

    Securing planning approval in 2026 requires more than a compliant drawing; it demands an evidence-based approach to highway safety. By mastering the geometric requirements of X and Y distances and selecting the appropriate regulatory standard, you protect your development from the risk of ‘unsafe access’ refusals. Integrating these vehicle access visibility splays with detailed data collection ensures your site maximizes its developable area while meeting the Highway Authority’s stringent benchmarks. We’ve explored how speed surveys and proactive obstruction management turn regulatory hurdles into manageable design elements.

    Our team acts as your dependable technical partner, offering specialized expertise in MfS and DMRB compliance alongside comprehensive Transport Planning support. We’re highly experienced in Section 278 negotiations, ensuring that off-site improvements are handled with professional integrity. Secure your site access approval with a professional visibility analysis from ML Traffic Engineers. We provide the rapid response and precision necessary to reduce logistical pressures and keep your project on schedule. Let’s ensure your site access is safe, compliant, and ready for construction.

    Frequently Asked Questions

    What is the standard X distance for a visibility splay in the UK?

    2.4 meters is the standard X distance for the vast majority of UK road junctions. This setback represents the distance from the edge of the major road to the driver’s eye, allowing for a clear view of approaching traffic without the vehicle protruding into the carriageway. In certain constrained urban settings with low traffic speeds, some Highway Authorities may permit a reduction to 2.0 meters, though this often requires a robust technical justification.

    Can a visibility splay go over a neighbour’s land?

    A visibility splay can cross third-party land, but you must demonstrate legal control over that area to ensure it remains unobstructed. The Highway Authority requires sightlines to be maintained in perpetuity, so you’ll typically need a formal easement, a land purchase, or a Grampian planning condition. If you cannot prove the land will be kept clear, the vehicle access visibility splays will be considered ‘unprotected’ and likely lead to a planning refusal.

    What height can objects be within a visibility splay?

    Objects within the splay must generally remain below a height of 0.6 meters above the ground. This threshold ensures a clear line of sight between a driver’s eye height, which is typically 1.05 meters, and lower-profile hazards or road users. While some slim items like lighting columns or signposts are often permitted, they must not cumulatively block the driver’s field of vision.

    Do I need a visibility splay for a private driveway?

    You do need a visibility splay for a private driveway if it creates a new access or intensifies an existing one onto the public highway. Safety standards apply to all access points to prevent collisions between emerging vehicles and passing traffic. Planning officers will scrutinize the access as part of your application to ensure it doesn’t compromise the safety of the road network.

    How do I calculate the Y distance for a 30mph road?

    The Y distance for a 30mph road is typically 43 meters when following Manual for Streets (MfS) guidance. However, this distance is based on the stopping sight distance required for a vehicle traveling at the 85th percentile speed of the road. If actual recorded speeds are higher than 30mph, the required Y distance will increase to ensure drivers have enough time to react and stop safely.

    What is the difference between MfS and DMRB visibility standards?

    Manual for Streets (MfS) is designed for urban and residential environments with speeds of 37mph or less, focusing on place-making and actual driver behavior. The Design Manual for Roads and Bridges (DMRB) is a more conservative standard used for high-speed rural routes and trunk roads. Applying the stricter DMRB standards to an urban site can result in unnecessarily large splays that significantly reduce your developable land.

    Can trees be planted within a visibility splay?

    Trees can be planted within a visibility splay provided they are clear-stemmed and don’t create a visual screen. The trunk must be narrow, and the canopy should start at a minimum of 2.0 meters above ground level to keep the 0.6m to 2.0m visibility envelope clear. You must also select species that won’t grow to obstruct the splay as they mature, as you are responsible for their ongoing maintenance.

    How much does a visibility splay survey cost for a planning application?

    The cost of a visibility splay assessment varies based on the size of the site and the level of data collection required. A survey that includes 85th percentile speed data or topographical mapping will involve different requirements than a desk-based assessment. Developers should seek a tailored proposal from a specialist engineer to ensure all Highway Authority requirements are met without overspending on unnecessary surveys.

    Michael Lee

    Article by

    Michael Lee

    Transport planner with over 35 years' experience.

    Disclaimer

    The content on mltraffic.co.uk, including all technical articles, guides, and resources, is provided for general informational and educational purposes only. It is not intended to constitute professional advice in traffic engineering, transportation planning, development approvals, or any other technical or legal field.
    While ML Traffic Engineers makes every reasonable effort to ensure the accuracy, completeness, and timeliness of the information published, we do not provide any warranties or representations (express or implied) regarding its reliability, suitability, or availability for any particular purpose. Any reliance you place on the content is strictly at your own risk.
    In no event shall ML Traffic Engineers, its directors, employees, authors, or affiliates be liable for any direct, indirect, incidental, special, consequential, or punitive damages (including, without limitation, loss of profits, data, or business opportunities) arising out of or in connection with the use of, or inability to use, any information provided on this website.
    The articles and guides on this site are not a substitute for engaging a qualified, professional traffic engineer to assess your specific project requirements. For tailored advice, compliance assessments, or traffic engineering services, please contact a competent professional.
    This disclaimer may be updated from time to time without notice. By accessing or using this website, you agree to be bound by the most current version of this disclaimer.

Powered by CookieAdmin
