Swept Path Analysis for Abnormal Loads: UK Project Guide

Will the proposed entrance accommodate the actual abnormal-load vehicle, or only the dimensions assumed during early design? For projects involving oversized indivisible loads, that distinction can determine whether a manoeuvre is feasible. Swept path analysis for abnormal load vehicles models movement through a defined route segment or site layout, showing the space the vehicle’s wheels and body may occupy as it turns.

A drawing can give a clear answer to a specific design question, but only when the vehicle details, manoeuvre and layout are accurate. A swept path envelope can reveal pinch points and potential conflicts. It cannot show conditions that are outside the model or the supplied information.

This guide explains what the envelope represents, which project information supports a useful assessment, and how to interpret findings when considering access and design changes. ML Traffic Engineers UK provides project-specific Swept Path Analysis, with hands-on technical input from senior staff who each have over 35 years of traffic engineering experience. Projects across Greater London, South-East England, the West Midlands and North-West England can use a vehicle model matched to the proposed movement to inform access decisions.

What swept path analysis for abnormal load vehicles can, and cannot, show

Swept path analysis models the space a specified vehicle occupies while completing a defined manoeuvre. The modelled path is compared with the access or site layout to assess whether the vehicle can negotiate the geometry shown. For an abnormal-load vehicle, this can reveal tight turns, restricted turning areas and potential pinch points before design decisions are made.

The result is evidence about a particular movement under stated assumptions. It does not prove that every journey condition has been accounted for, that the full route is feasible, or that the movement has the required permissions. Treat the drawing as a focused test of geometry, not as a complete transport or approval assessment.

What makes abnormal-load vehicle movements different?

Vehicle length, width, articulation and load overhang all affect the space needed to turn. A long combination may need extra room for its front to swing out, while its rear wheels track inside the front-wheel path. An overhanging load may extend beyond the vehicle body and create a separate clearance concern.

The model should distinguish the towing vehicle, trailer and load wherever their dimensions affect the envelope. No single set of dimensions represents every abnormal-load movement. A 50.0-metre articulated vehicle, for example, is an illustrative case, not a default project vehicle or a suitable assumption for another site. Use the intended configuration and manoeuvre as the basis for the assessment.

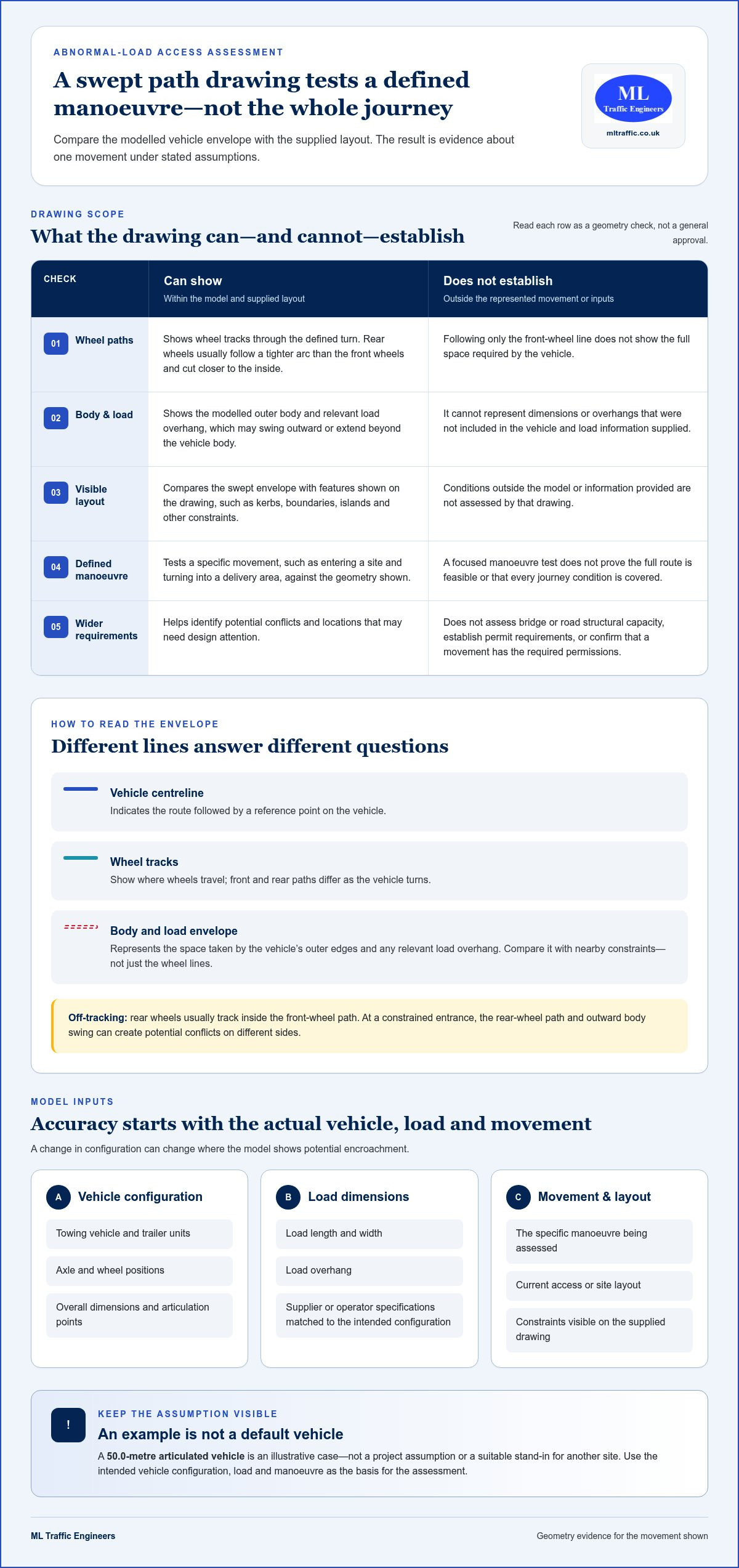

What does a swept path drawing establish?

A drawing shows the modelled vehicle path and swept envelope against the supplied layout. Depending on how the vehicle is represented, it can show how wheels track through a turn and how far the body or load extends around it. This helps identify potential conflicts with kerbs, boundaries, islands or other features visible on the drawing.

The comparison supports a practical access decision: does the modelled movement appear to fit the available geometry, or does it highlight a location that needs design attention? Software such as AutoTrack software for swept path analysis can model vehicle movements, but the output still depends on accurate inputs and assumptions. ML Traffic Engineers UK also explains the role of AutoTURN swept path analysis in project assessments.

Keep the drawing’s limits in view. It does not assess whether a bridge or road has the structural capacity for the vehicle, establish permit requirements, or confirm that every part of a route is workable. It addresses the manoeuvre represented on the drawing. The vehicle model, load configuration, layout and movement assumptions should therefore match the project decision the assessment is intended to inform.

How abnormal-load swept path analysis models vehicle movement

The assessment places a digital vehicle model on the project drawing and simulates a defined manoeuvre, such as entering a site and turning into a delivery area. The modelled path is compared with the available space. This helps show whether the vehicle’s wheels, body and load remain within the intended manoeuvring area or appear to cross a kerb, boundary or other constraint.

The result depends on more than the vehicle’s overall length. Steering geometry affects how tightly the front wheels can turn, while articulation between a tractor and trailer changes how the units follow each other. Load overhang can extend beyond the trailer, creating a wider or longer envelope than the vehicle alone suggests. A difference in configuration can change where the model shows potential encroachment.

Which vehicle and load details shape the model?

Relevant inputs include the towing vehicle, the number and arrangement of trailer units, axle and wheel positions, overall dimensions, articulation points, and the load’s length, width and overhang. A generic model may not represent the planned transport combination, particularly if its trailer arrangement or steering differs. Use vehicle and load specifications from the supplier or operator as project inputs, and verify that they match the intended configuration before modelling.

How to read the swept path envelope

Check what each line on the drawing represents. A vehicle centreline indicates the route followed by a reference point, while wheel tracks show where the wheels travel. The body and load envelope represents the space occupied by the vehicle’s outer edges and any relevant overhang. These lines answer different questions: the wheels may clear an obstruction even when the body or load passes close to it.

Off-tracking is the difference between the paths of the front and rear wheels during a turn. As the front wheels steer around a corner, the rear wheels usually follow a tighter arc and cut closer to the inside. The vehicle’s outer body may also swing outward. At a constrained entrance, this can create potential conflicts on both sides. Inspect the full envelope rather than following only the front-wheel line.

Use the drawing as a comparison, not a standalone guarantee. Its reliability depends on accurate vehicle details, site geometry and clearly stated manoeuvre assumptions. Before using it to inform a design decision, check that it represents the relevant layout and turning movement. For project-specific input on manoeuvrability and site access, ML Traffic Engineers UK’s Swept Path Analysis assesses the movement against the supplied design.

Compare manoeuvres and constraints before accepting an abnormal-load layout

A layout that works for a straight approach may still fail at the turn into a site. Review the manoeuvres that matter to the proposed movement instead of relying on a single path through the drawing. For each one, link the modelled envelope to a design question: is the entrance wide enough, can the vehicle align in the turning area, or could the trailer or load encroach on a feature shown on the plan?

The table links common manoeuvres to the geometry they test. Include the movements relevant to the project.

Manoeuvre	Geometry or constraint tested	Design question
Straight access	Entrance width, gates, walls and approach alignment	Can the vehicle enter without its body or load conflicting with the edges shown?
Turn into a site	Corner radius, kerbs, islands and available turning area	Can the vehicle complete the turn without the envelope crossing a constrained feature?
Junction movement	Road width, corner geometry and the position of adjacent boundaries	Does the selected turn fit within the layout being assessed?
Roundabout movement	Entry, circulating space and exit geometry	Can the vehicle follow the intended route through the roundabout shown?

Which constraints should the drawing make visible?

Review the features shown on the supplied layout, including kerbs, site boundaries, islands, gates and nearby structures. Compare each with the full vehicle, wheel and load envelope. If the model overlaps a kerb, that is a geometric conflict to address in the design. It does not establish whether the feature can withstand vehicle loading or whether an operational workaround is appropriate. Those are separate questions requiring their own assessment.

Also distinguish plan-view clearance from overhead clearance. A swept path drawing can show where a vehicle travels across the mapped layout, but it does not establish clearance beneath a canopy, sign or other overhead feature unless suitable information is used to assess it. A clear path on the plan is not evidence of structural capacity either.

When does a site manoeuvre differ from a whole-route question?

Site-access swept path analysis tests specified movements against a defined area on the drawing, such as an entrance and internal turning space. A journey may encounter constraints beyond that boundary, including other junctions, structures or route restrictions. A site-access drawing therefore does not prove that the full route is feasible or provide route permission.

Use each identified conflict to frame the next project decision: should the layout change, should another manoeuvre be assessed, or does the issue need a separate technical or operational review? This keeps swept path analysis for abnormal load vehicles focused on evidence the drawing can support. For project-specific analysis of vehicle manoeuvrability and site access, ML Traffic Engineers UK provides Swept Path Analysis.

Prepare a reliable abnormal-load swept path assessment

Start with a clear project question: which vehicle movement needs testing, and against which layout? Define the access point or route segment, then identify the manoeuvres that affect the design. Keep the scope specific. A drawing of a site entrance, for example, will not answer whether a separate junction elsewhere on the journey is workable.

Set the assessment scope and assemble project information

Bring together the intended vehicle and load configuration, the current site or access layout, and a description of the movement to test. Record which information has been supplied and which details have been verified against the project. This helps reviewers understand the model’s basis and identify assumptions that could affect the result.

1. Define the movement. Identify the access point or route segment, direction of travel, entry or exit, and each relevant turn or manoeuvre.
2. Specify the vehicle. Provide the towing vehicle and trailer arrangement, dimensions, articulation details and other configuration information that affects movement.
3. Describe the load. Include its dimensions and any overhang beyond the vehicle or trailer. Identify which details are confirmed for the planned transport configuration.
4. Supply the layout. Use the current drawing for the area being assessed, with relevant kerbs, boundaries, gates, islands and other constraints visible.
5. Record assumptions. State the turning sequence, direction and any constraints included in the model. Separate assumptions from supplied or verified project information.
6. Review the output. Compare the modelled envelope with the layout and note potential conflicts, drawing limitations and design questions that need attention.

This process ties swept path analysis for abnormal load vehicles to a defined movement and traceable project inputs. If the vehicle configuration changes or the access layout is revised, the previous drawing may no longer represent the design under consideration. Keep the assessment with the relevant layout and assumptions so the project team can review them together.

Review findings and communicate design implications

Check that the drawing clearly identifies the vehicle, movement and layout, and explains the relevant assumptions. For each apparent pinch point, describe its location and the feature involved, then frame the design question: does the entrance geometry need reconsideration, or should another manoeuvre be tested? This presents the evidence without implying that the drawing resolves separate engineering or operational matters.

For a practical explanation of the modelling approach, see the practical AutoTURN swept path guide. To apply project-specific vehicle details and access layouts, explore ML Traffic Engineers’ Swept Path Analysis, supported by hands-on technical input from senior staff with over 35 years of traffic engineering experience.

How ML Traffic Engineers supports abnormal-load swept path projects

For an abnormal-load project, the practical question is whether the specified vehicle can complete the required manoeuvre within the proposed access layout. ML Traffic Engineers provides Swept Path Analysis to examine vehicle manoeuvrability and access feasibility against project drawings. The assessment is tailored to the vehicle, load, layout and movement under consideration, helping project teams understand what the modelled geometry shows before making a design decision.

A drawing is useful only when its assumptions reflect the intended movement. The analysis connects the vehicle configuration and load dimensions with the relevant entrance, turning area or other site constraint. Findings can identify where the layout may need further consideration, with conclusions kept specific to the information and manoeuvres assessed.

Apply the analysis to the project’s planning context

ML Traffic Engineers takes a hands-on approach to each project and considers variations in local planning context. An access arrangement needs to be understood within its site design and local authority context. Every senior staff member has over 35 years of traffic engineering experience, bringing technical perspective to the assessment and its interpretation.

The drawing can inform discussion of access geometry, but its conclusions remain specific to the supplied vehicle, layout and manoeuvre. Swept Path Analysis does not guarantee planning approval or establish route permission. It gives project teams a focused way to examine manoeuvrability and consider whether the proposed layout accommodates the movement being assessed.

ML Traffic Engineers supports projects across Greater London, Manchester, Birmingham, the West Midlands, Liverpool, Surrey, East Sussex, West Sussex, Hampshire, Berkshire and Buckinghamshire. This regional coverage enables the assessment to be considered in the context of the project location and its local planning circumstances.

Take the next step with a project-specific discussion

Before discussing an assessment, bring together the project location, intended vehicle and trailer configuration, load dimensions, current access layout and manoeuvre to examine. If some details are still assumptions, identify them clearly. This gives the discussion a practical starting point and focuses it on the access question the project needs answered.

For a tailored assessment of vehicle movement and site-access feasibility, discuss your swept path analysis requirements with ML Traffic Engineers. Share the relevant project information to focus the assessment on the proposed manoeuvre and supplied layout.

Turn access questions into a clear project decision

Connect the movement you need to assess with the information that will make the drawing useful: the intended vehicle and load, the relevant access layout, and the manoeuvre under consideration. This gives the project team a clear basis for discussing what the model can demonstrate and where further design attention may be needed. Swept path analysis for abnormal load vehicles is most useful when its assumptions reflect the movement the project is planning.

ML Traffic Engineers brings a hands-on approach to each assessment, with attention to local planning context. Every senior staff member has over 35 years of traffic engineering experience. That experience supports considered technical input, while keeping findings tied to the supplied project details rather than implying a particular approval or route outcome.

Have an access question to resolve? Discuss your swept path analysis requirements with ML Traffic Engineers and take a considered next step for your project.

Frequently Asked Questions

Can swept path analysis guarantee that an abnormal-load vehicle can complete its journey?

No. The assessment applies to the vehicle, layout and manoeuvres represented in the model, so it cannot guarantee passage through every journey condition. Temporary obstructions or a changed delivery configuration, for example, may differ from the drawing’s assumptions. Use the result to inform the specific design decision it tests, and treat wider route feasibility and permission as separate matters.

Does a swept path analysis assess bridge strength or road loading capacity?

No. Swept path analysis examines vehicle movement, not whether a bridge, road or other structure can carry the vehicle’s load. A model showing a vehicle passing over a bridge on plan is not evidence of structural capacity. Keep that question separate and use the relevant project documentation and technical assessment for the structure. The swept path drawing should state its scope clearly, without implying a structural conclusion.

Can one swept path drawing be used for different abnormal-load vehicles?

Only if the drawing’s vehicle model and manoeuvre assumptions represent each vehicle being considered. Two combinations carrying the same load, for example, may have different trailer arrangements or steering characteristics. Compare the specifications, not just the overall length. If a vehicle’s dimensions, articulation or overhang differ, assess whether the existing model still represents it before using the drawing to inform access arrangements.

Does swept path analysis include overhead clearance?

Not automatically. A plan-view drawing shows horizontal movement, so it cannot establish clearance beneath a canopy, sign or bridge simply because the vehicle envelope fits on the plan. Height assessment requires suitable vertical information and a scope that addresses clearance. If overhead features could affect the movement, identify them separately and make sure the project review considers relevant heights rather than inferring clearance from a horizontal tracking result.

Can a swept path assessment model a vehicle reversing?

Yes, if reversing is defined as a movement and the model reflects the intended vehicle configuration and sequence. A site may require a vehicle to reverse from an entrance into a turning area, for example, which differs from entering forwards and turning. The drawing should make the direction and stages clear. Do not assume a forward movement demonstrates reverse access too; specify each movement the design needs to examine.

Is swept path analysis the same as an abnormal-load permit?

No. Swept path analysis assesses a specified vehicle movement; the drawing does not grant route permission. Keep these workstreams distinct in project records. Requirements and planning context can vary by location, including across Greater London, Manchester, Birmingham, the West Midlands, Liverpool, Surrey, East Sussex, West Sussex, Hampshire, Berkshire and Buckinghamshire. Consult the relevant UK authority for current requirements before making regulatory decisions.

Can swept path analysis identify a problem at a roundabout?

Yes, if the roundabout and intended vehicle movement are included in the model. An assessment might examine whether the vehicle’s envelope conflicts with an island during a specified turn, for example. Be precise about which entry, circulating movement or exit the drawing covers. Swept path analysis for abnormal load vehicles can help identify a geometric issue at that location, but it does not assess every approach or onward route condition.
